Wellhead Device(1)-casing head
18/04/2019

Completion wellhead device

A well is composed of wellhead device, completion string and bottom hole structure from top to bottom.

The wellhead device is used to suspend the downhole tubing string and casing string, seal the annular space between the tubing, casing and two layers of casing to control the production of oil and gas Wells, it is the key equipment for injection (steam injection, gas injection, water injection, acidification, fracturing and chemical injection, etc.) and safe production.

The completion string consists of tubing, casing, and downhole tools for a specific function.

The bottom hole structure is an organic combination of the completion method matching tools at the bottom of the completion string and string.

Wellhead equipment (1) - casing head

The casing head is a component that connects the casing and various well tubing heads. To support the gravity of the technical casing and reservoir casing, seal the annular space between the casing layers, provide a transition connection for the installation of upper wellhead devices such as the blowout preventer, tubing head, and tree, and through two side orifices on the casing head itself, perform additional cement squeeze, monitor well sinking, and inject balancing fluid.

The casing head is composed of a body, a casing hanger and a sealing assembly. Casing head is divided into single-stage casing head, double-stage casing head and three-stage casing head according to the number of suspended casing layers.

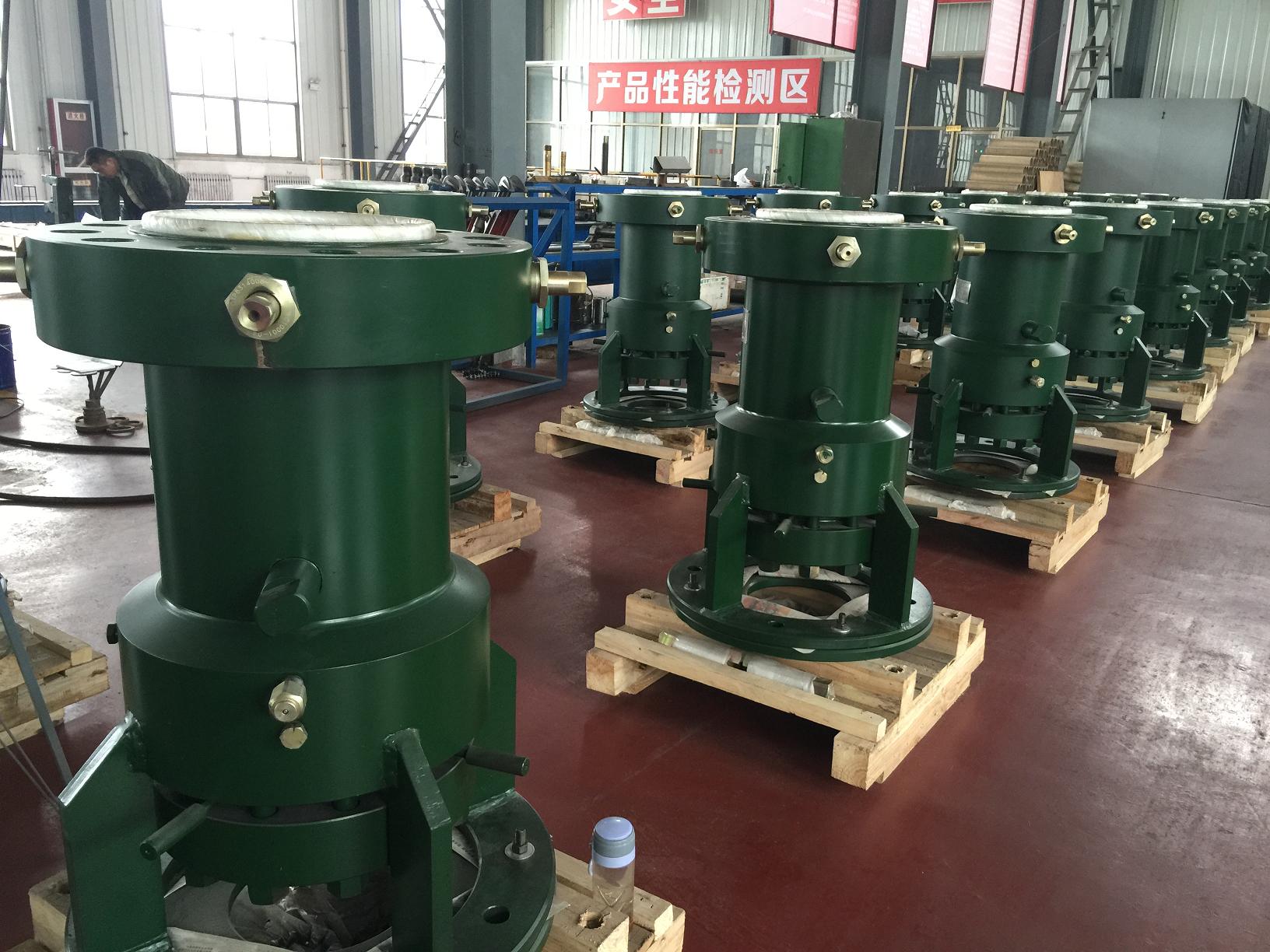

KINGWELL Supply Casing head

Techincal Data:

Working pressure: 2000-15,000PSI
Working medium: oil, natural gas, mud etc.
Working temperature: -46℃ - 121℃(Class LU)
Material class: AA、BB、CC、DD、EE、FF
Specification level: PSL1-4
Performance level: PR1-2
