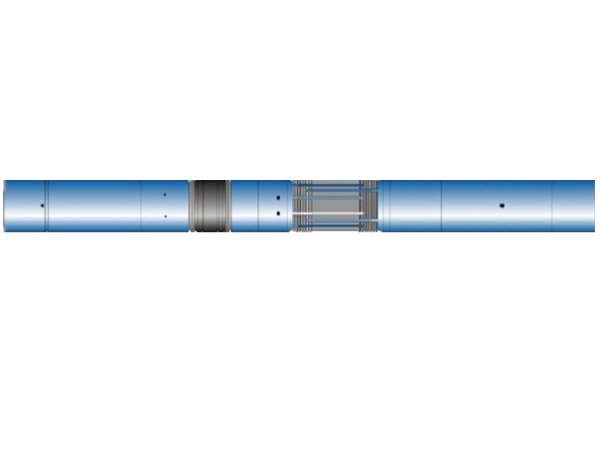

KWRSBP Retrievable Seal Bore Packers

KWRSBP Packer is a retrievable, single-bore packer that has the completion features of a large-bore packer. The packer delivers high performance with simplicity of design and desirable economics. It is a 10,000 PSI plus rated packer and can be equipped to withstand severe corrosion and high temperatures.

The packers are designed to be used in Frac or gravel pack service, or suspend tools, or provide a pressure isolation point in the casing, which can be set by using hydraulic setting tool, and be pulled by running and latching the retrieving tool then applying a straight upward pull if needed.



Features and Benefit

Field proved reliable
Simple to operation
Economical
Designed for most severe completion environments
For high pressure and high temperature completions
Provides an upper connector for attachment to seal unit locators 
Full seal bore ID through the packer
Designed for high tensile loads
Wireline and Hydraulic setting tools set
Protected from pre-setting when run in hole
Tubing rotation available when run in hole
Retrievable
Able to be milled if retrieval attempts fail
Standard 10ksi rate

Applications

Sand control
Horizontal completion assemblies
Hanger packer in frac and stimulation jobs
Production and Injection sealbore packer
Retrieve required

Technical Data

Casing Size Casing Weight Packer OD Packer Bore
in. mm lb/ft kg/m in. mm in. mm
4 1/2 114.3 9.5-11.6 14.14-17.26 3.82 97.03 2.38 60.45
5 127 15-18 22.32-26.79 4.09 103.89 2.55 64.77
5 1/2 139.7 17-20 25.30-29.76 4.61 117.09 2.75 69.85
23-26 34.22-38.69 4.36 110.74
6 5/8 168.28 28 41.66 5.53 140.46 3.25 82.55
20-24 29.76-35.71 `5.73 145.54
7 177.8 49.5-50.1 73.66-74.56 5.3 134.62 3 76.2
41-44 61.01-65.47 5.53 140.46 3.25 82.55
32-38 47.62-56.54 5.73 145.54
23-29 34.22-43.15 6 152.4
17-23 25.30-34.22 6.19 157.23
32-35 47.62-52.09 5.82 147.83 3.88 98.55
23-29 34.22-43.15 6 152.4
17-23 25.30-34.22 6.19 157.23
7 5/8 193.7 42.4-47.1 35.72-70.79 6.19 157.23 3.25
3.88
82.55
98.55
29.7-39 44.19-58.03 6.44 163.58
24-29.7 35.71-44.19 6.68 169.67
7 3/4 196.85 46.1-48.6 68.6-72.32 6.19 157.23 3.25 82.55
3.88 98.55
8 5/8 219.08 28-36 41.67-53.57 7.63 193.8 3.88 98.55
9 5/8 244.48 43.5-53.5 64.73-79.62 8.3 210.83 3.88 98.55
36-43.5 53.57-64.73 8.52 216.41 5 127
43.5-47 64.74-69.94 8.45 214.63 6 152.4
10 3/4 273.05 51-65.7 75090-97.77 9.31 236.47 5 127
13 3/8 339.73 68-72 101.18-107.14 12.13 308.1 6 152.4
