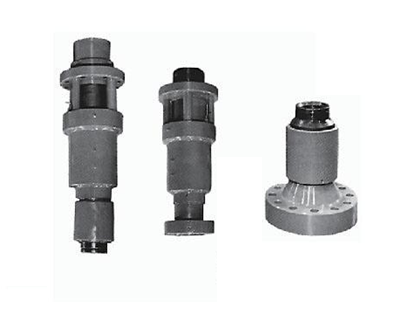

Coiled Tubing Stuffing Boxes (Strippers)

Product number:KW-CT-15 Hydraulically actuated “quick change” model Stuffing Box allows the elements to be changed with pipe in the hole through the side window


We're here to help:
Easy ways to get the answers you need.

  • +86-029-88601839
  • +86-029-88601839
  • kingwell@kingwelloilfield.com
  • Follow Us:
Coiled Tubing Stuffing Boxes (Strippers)

Hydraulically actuated “quick change” model Stuffing Box allows the elements to be changed with pipe in the hole through the side window. Please note the following design features:



Design Features:

I.D.-3“ ,41/16 “,63/8“ (with bushings and inserts removed)
Working Pressure-10,000 psi to 15,000 psi
Service-H2S,standard         Tubing Size-1“ through 41/2“
Seal Element-Split(interlock) type
Connections-Per customer specification


Additional Features:
Inhibitor injection/wellhead port
Split upper bushing             Split lower bushing
Upper bushing modified for tubing lubrication(optional) External piston position indicator
Safety locks to prevent accidental window opening under pressure DNV/Lloyds certifications(optional)
Can be ordered as upper or lower for tandem application

Roll-on connector (tub. 1.5"x0.125") 1AMMT
Dimple connector (tub. 1.5"x0.125") 1AMMT
Hydraulic yoke, jig and hydraulic pump - tools for making up the dimple connection (tub. 1.5")
Grapple connector (tub. 1.5") 1AMMT
Double flapper check valve OD 1.687"
Cartridge flapper OD 1.310"
Roto-Hammer OD 1.687" 1AMMT
Cross-bladed bit OD 1.75" 1AMMT
Knuckle joint for coil tubing OD 1.687"
Torque knuckle joint for coil tubing OD 1.687" 1AMMT
Detachable hydraulic overshot OD 1.85" 1AMMT w/ 1-1/2" wedge dies (2 sets)
Detachable hydraulic overshot OD 1.85" 1AMMT w/ 1-3/4" wedge dies (2 sets)
Spinnng wash tool OD 1.687" 1AMMT
Spinnng wash tool OD 2.125"
Workover motor OD 1/687"
Motor head OD 1.687" 1AMMT
Junk mill OD 1.75" … OD 2.125" 1AMMT
Hydraulic reamer c.w. set of blades OD min 54 mm, OD max 120 mm
Coiled tubing: Grade HS-90 OD 1.5" wall 0.125" string 13125' x wall 0.156" string 6875' (Single piece, total string 20,000')
Swivel joint st. no 10MxF2" fig 1502
Plug valve MxF 2" fig 1502
Hammer union 2" fig 1502

Coil tubing unit to complete for coil tubing size 1,5"
