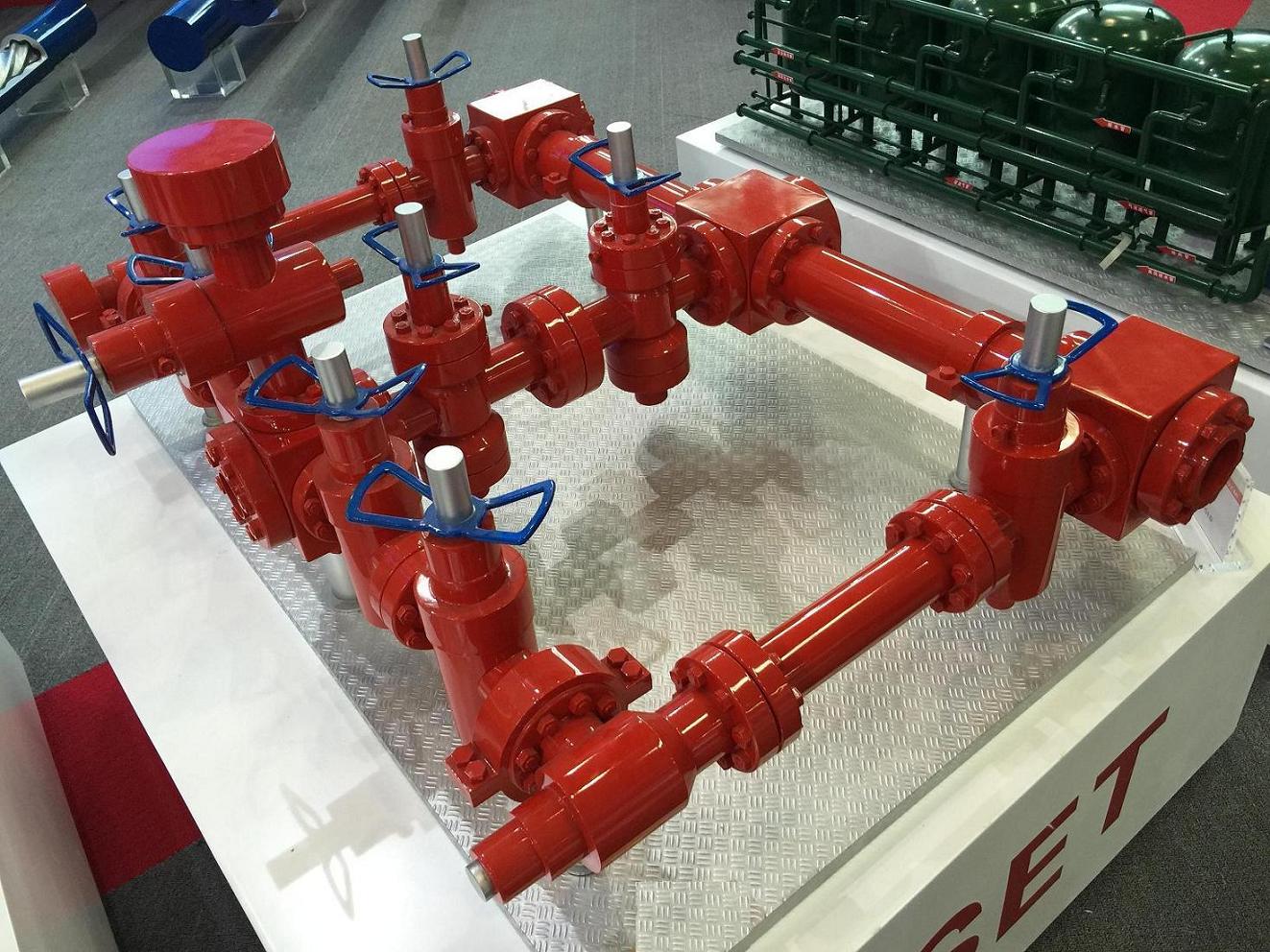

Kill Manifold and Choke Manifold


Product Number: KW-WH-03 KINGWELL offers a full line of maifolds for wellhead pressure control.


We're here to help:
Easy ways to get the answers you need.


  • +86-029-88601839
  • +86-029-88601839
  • kingwell@kingwelloilfield.com
  • Follow Us:
KINGWELL Kill Manifold and Choke Manifold Features & Benefits:

The choke and kill manifold are necessary equipment for well control on well kick and implementation of oil and gas well pressure control. The equipments are designed and manufactured according to API Spec 16C/6A, and also can be manufactured according to the reqirements of the users.

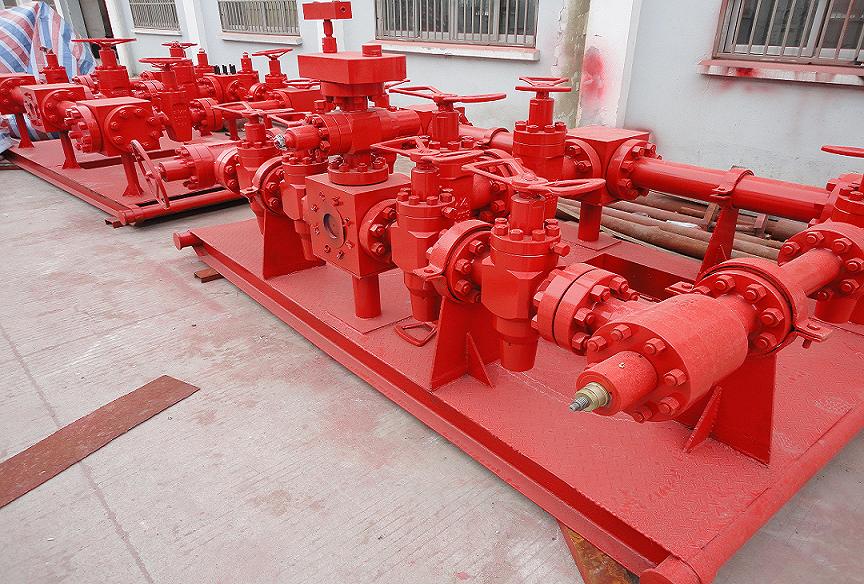

1. Kill Manifold

In case well head pressure is too high, the kill manifold can be used to pump drilling fluid down hole to balance bottom hole pressure so as to prevent blowout; or used with the blow-off pipe lines connected to it, it can drain fluids from the well to reduce bottom hole pressure.

The kill manifold consists of check valves, gate valves, pressure gauges and pipe lines.

KINGWELL Kill Manifold Techincal Data:

•  Working pressure: 2000PSI~20000PSI
•  Nominal Bore: 2.1/16"~4.1/16"(46mm~103mm)
•  Working Medium: oil, natural gas, mud
•  Working Temperature: -46°C~121°C(Class LU)

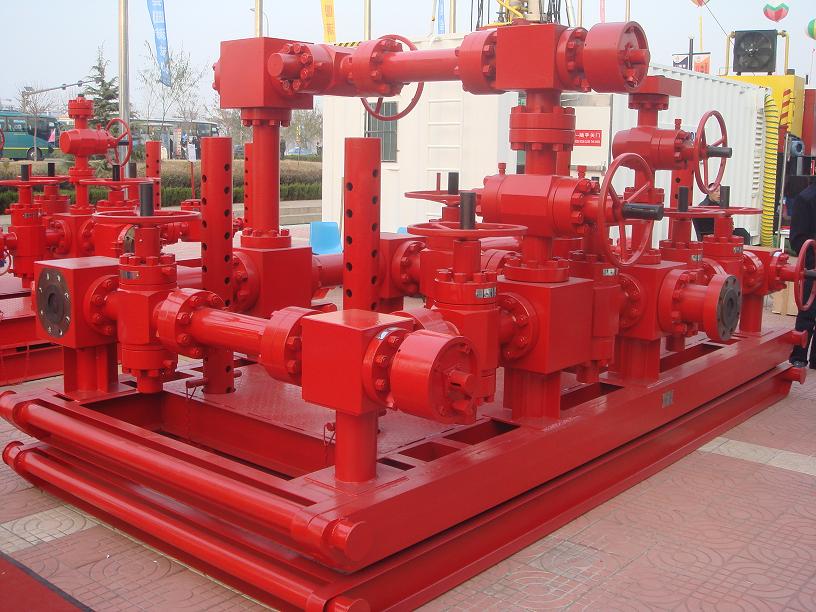

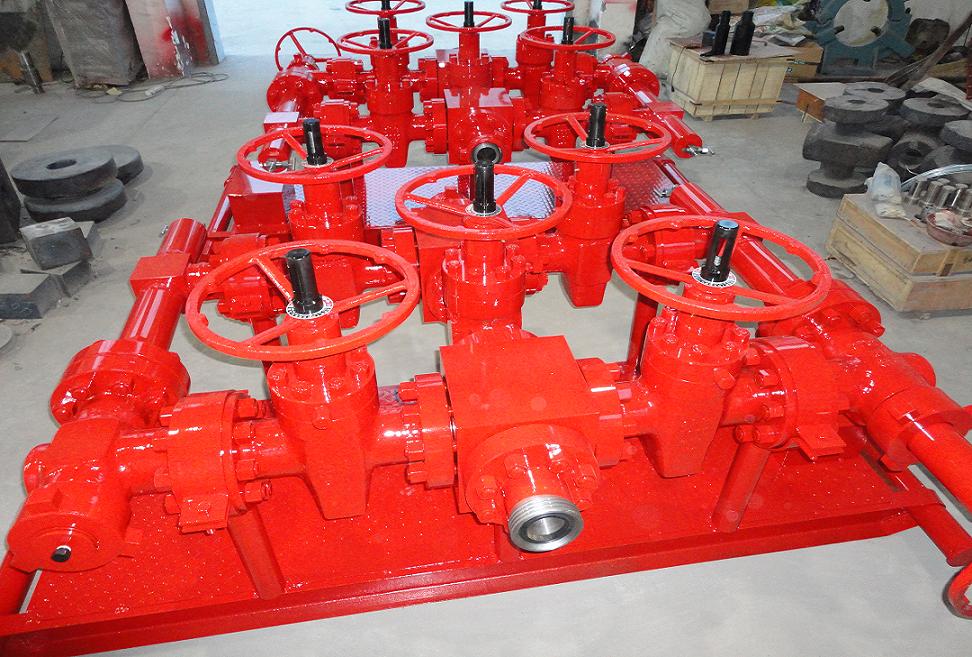

2. Choke Manifold

Choke Manifolds are indispensable equipments to prevent well kick and to regulate pressure in oil and gas wells. The choke manifold is support equipment of hydraulic BOP for controlling well blow out and well pressure. Through the choke valve, perform well killing, replacing polluted slurry in well. It controls wellhead pressure of casing and standpipe, restoring mud to control pressure at well bottom to stop overflow.

KINGWELL Choke Manifold Techincal Data:

•  Working pressure: 2000PSI~20000PSI
•  Nominal Bore: 2.1/16"~4.1/16"(46mm~103mm)
•  Working Medium: oil, natural gas, mud
•  Working Temperature: -46°C~121°C(Class LU)

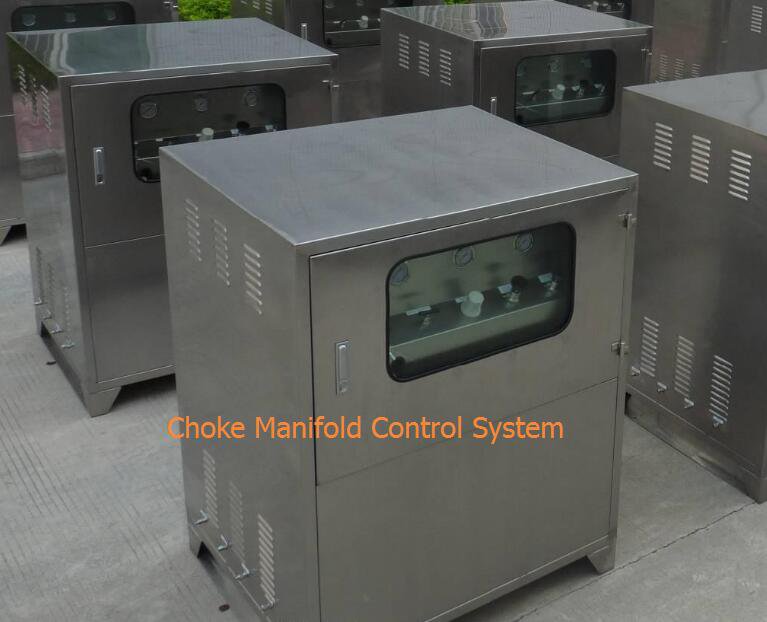

3.Choke Manifold Control System
Applications

Choke manifold control system is a requisite equipment to maintain a stable bottom hole pressure after well kick or blowout through remote control the open/close of choke valves properly.

Technical Data

System Driving Mode: Electric pump: 380VAC, 220VAC
Pneumatic pump: 75~120psi
Control Pieces: 01pc
Rated Output Oil Pressure: 900psi
Max. Output Oil Pressure: 1,200psi
Locale Pressure Acquisition Mode: Pneumatic signal
Working Temperature: -20℃~60℃
Quick Coupling Connection Size: M16*1.5, M22*1.5
Hydraulic Oil: 10# Aircraft hydraulic oil
Dimensions: 700 X 470 X 1200 mm
Weight: 200 Kg
