Shale Shaker Screens
06/11/2015

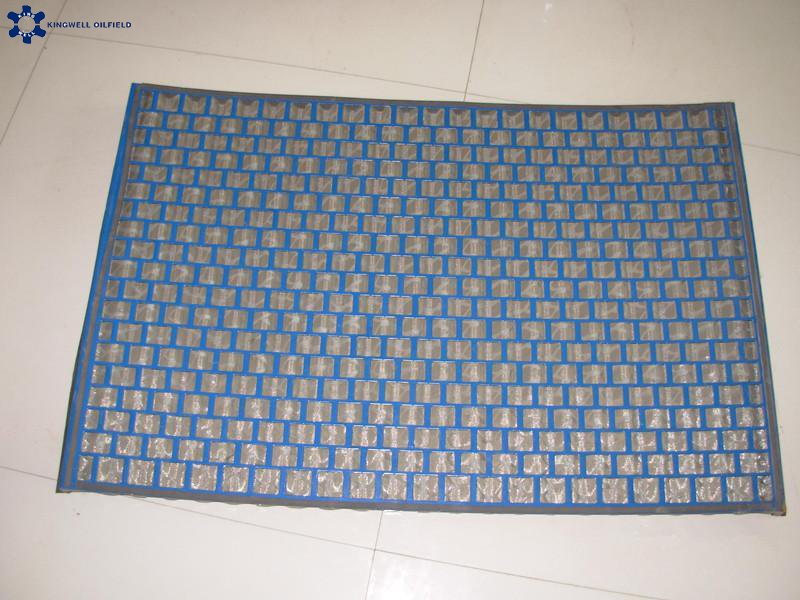

Hook strip soft screens

•Material: stainless steel wire screen (304 316)
•Advantages: wear-resistant, high temperature resistant, oil resistant, acid and alkali resistant, longer service life.
•Usage: For drilling mud filtration

The structure of hook strip soft screens is similar to the flat plate screen. The primary structure is usually one block which is composed of 2 to 4 layers bond together. KINGWELL screens are API RP 13C compliant.


Hookstrip soft screens
Screen Model	Pange of Mesh	Dimension (Length x Width)	Brand & Model Of Shaker	Weight(Kg)
KWF-1	20-150	600×1040mm	NCS-300*2	1.5
KWF-2	20-150	700×1165mm	S250	2
KWF-3	120-210	1400×460mm	ZCN	2.4
KWF-4	120-210	1000×1150mm	NS-115/2	2.8
KWF-5	20-80	927×914mm	JSS（U.S.A）	2.1
KWF-6	20-80	1219×1524mm	SSS(U.S.A)	4.5

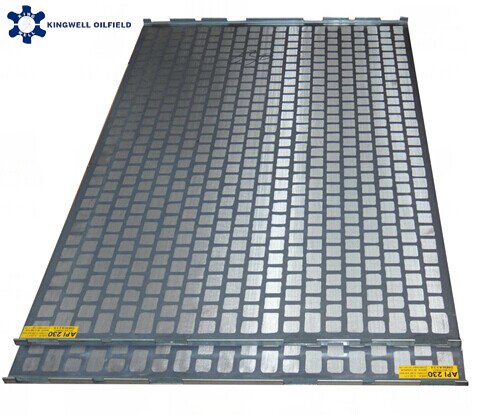

Hook strip flat plate screens

•Material: stainless steel wire screen (304 316).
•Advantages: wear-resistant, high temperature resistant, oil resistant, acid and alkali resistant, longer service life.
•Usage: For drilling mud filtration

Hook strip flat plate screens is widely used for oilfield at present. The screen is composed of 2 to 3 stainless steel layers bonded to a steel plank. It makes bonding strength stronger, reduces friction and vibration, thus increasing durability. Under the condition of guaranteeing enough bonding strength, hole size for the perforated metal plate can be different, can strive to obtain maximum effective area. This kind of screens can be used for different drilling conditions. KINGWELL screens are API RP 13C compliant.


Hook flat screens
KWP-1	16-325	903×1155mm	SWACO	5.6
			BEM-3
KWP-2	16-325	1212×1141mm	SWACO	9
			ALS-11
KWP-3（PWP）	16-325	697×1050mm	DERRICR	6
			FLC500 Series
KWP-4（PWP）	16-325	697×1053mm	DERRICR	4.2
			FLC2000
KWP-5	16-325	697×846mm	DERRICR	4
			FLC313M
KWP-6（PWP）	16-325	915×1150mm	BRANDT LCM-20	8.6
KWP-7（PWP）	16-325	720×1220mm	KEMTRON	5.6
			KTL48 Series
KWP-8（PWP）	16-250	700×1165mm	S250	4.6
KWP-9	16-250	1186×1280mm	ZX60	9.2

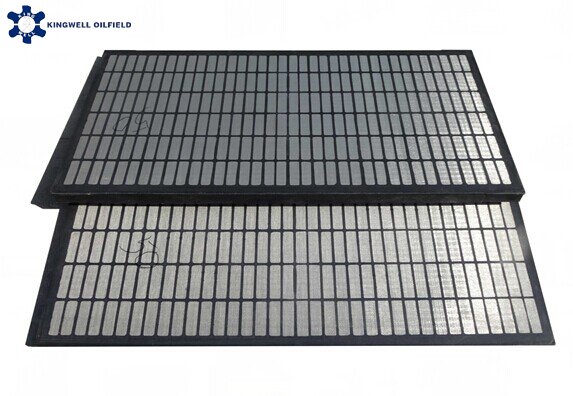

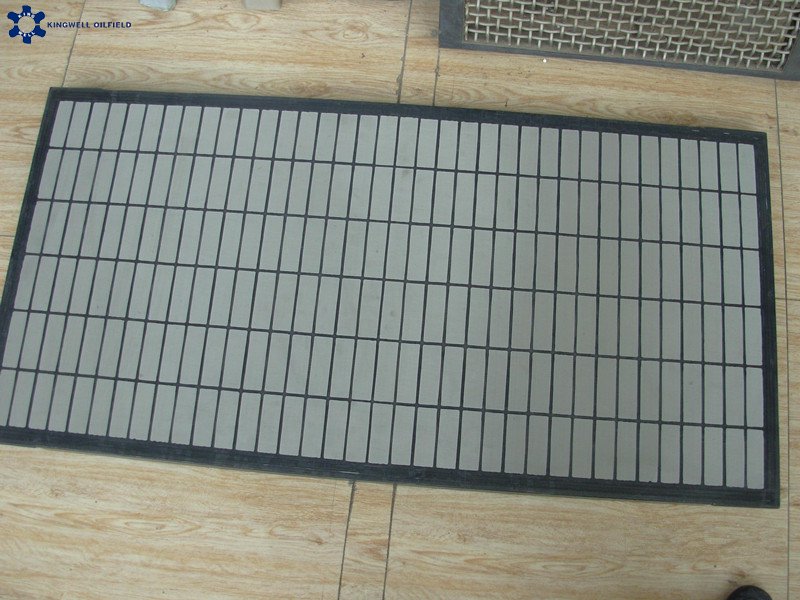

  Steel frame screens

•Material: stainless steel wire screen (304 316).
•Advantages: wear-resistant, high temperature resistant, oil resistant, acid and alkali resistant, longer service life.
•Usage: For drilling mud filtration, mud cleaning.

Steel frame screen is widely used for oilfield at present. The screen is composed of 2 to 3 stainless steel layers bonded to a steel frame. The frame is made up of high-strength square steel tube or flat steel welded to multi-ribbed construction. Screens can be bonded to steel frame via metal plate, or bond to frame directly. The frame screen can be wave type and flat type. The advantages are high performance, easier install and disassembly. KINGWELL screens are API RP 13C compliant.

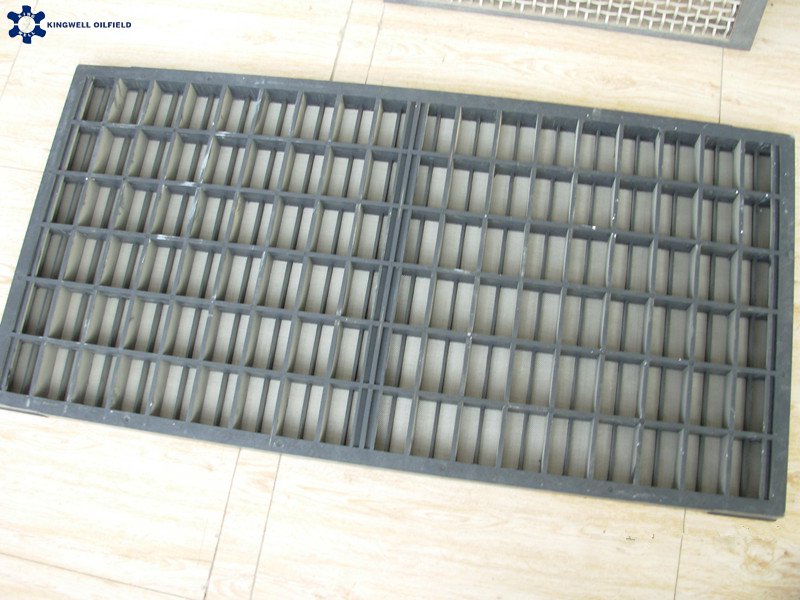

Steel frame screens
KWK-1	16-325	585×1165mm	SWACO	12
			MON900SE
KWK-2	16-325	635×1253mm	BRANDT	13.5
			BL-50
KWK-3	16-325	913×650mm	BRANDT	12.5
			VSM-300
KWK-4	16-325	720×1220mm	KEMTRON	17
			KTL48 Series
KWK-5	16-325	712×1181mm	SF300	17

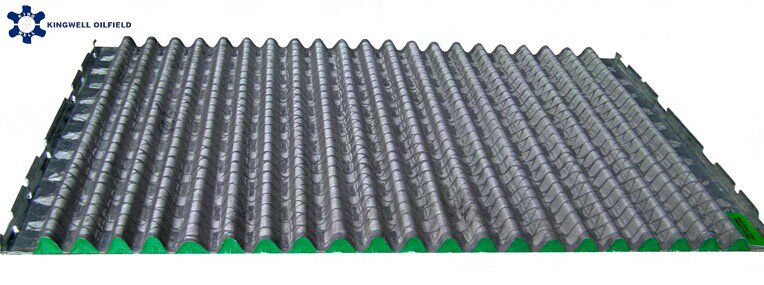

Wave Screen (Pyramid screen)

• Material: stainless steel wire screen (304, 316)
• Advantages: wear-resistant, high temperature resistant, oil resistant, acid and alkali resistant, larger sieving area, sieving capacity enhancement, longer service life.
•Usage: For drilling mud filtration
Related equipment: shale shaker, mud cleaner.

Wave screen adopt unique hot pressing process to make the screen surface to be wave type. To collect the different mesh screens together reasonably and accurately. Compared with same specification flat plate screens, the effective area can be 125% - 150% larger, to increase sieving capacity, service life. It is be able to load more drilling fluid flow. KINGWELL screens are API RP 13C compliant

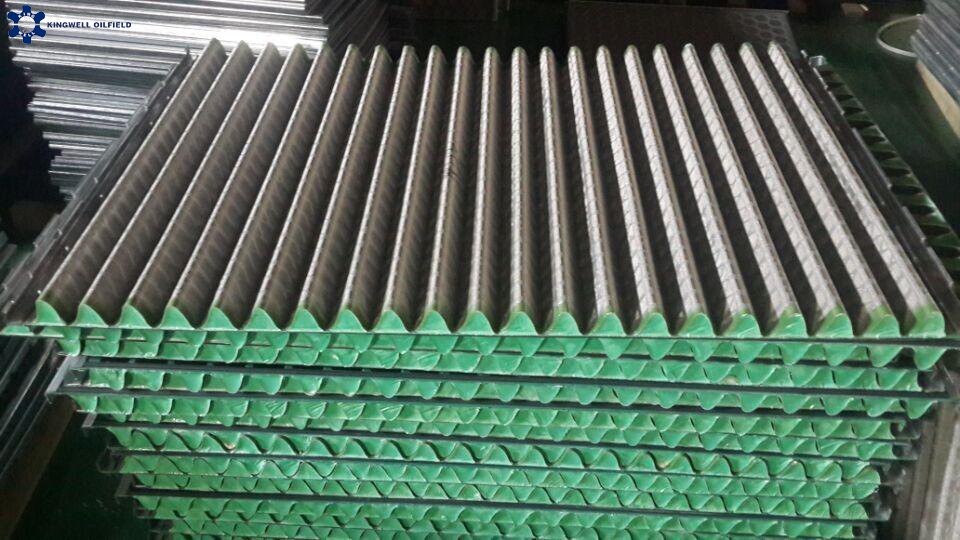

Wave Screens
KWB-1	80-210	635×1253mm	BRANDT	17.5
			BL-50
KWB-2	80-210	697×1050mm	FLC 500 Series	7.5
KWB-3	80-210	697×1053mm	FLC2000	5.8
KWB-4	80-210	915×1150mm	BRANDT	10
			LCM-ZD
