Services > MWD Service
Owning experienced directional professionals, advanced domestic and imported MWD tools, directional drilling design software & calculating software, KINGWELL can provide excellent, economic, efficient, reliable MWD/LWD service, which is suitable for oil wells, gas wells and horizontal wells.
Parameters
● Mud flowv：66gpm~1100gpm
● Mud density：7.5ppg~18ppg
● Working temperature：-30℃~150℃/-20℃~175℃
● Working pressure of down hole instruments：140Mpa
● Measurement precision of inclination：±0.1°
● Measurement precision of azimuth：±1°
● Measurement precision of tool face：±1°
● Measurement range of Gamma：0-500API
● Measurement precision of Gamma：±5%
Overall Structure Diagram
Main tools
MWD

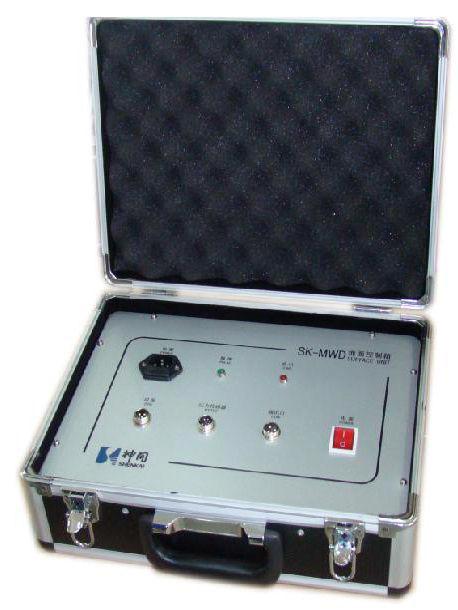

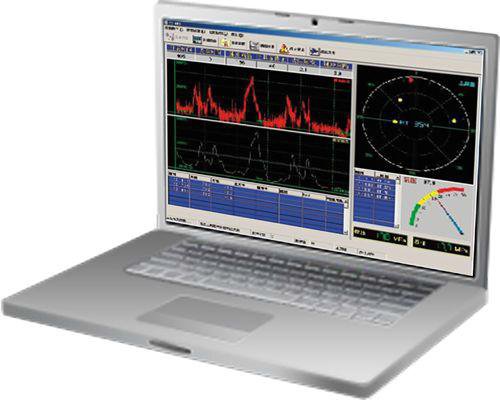

Remote Data Processing Unit Special Data Processing Unit

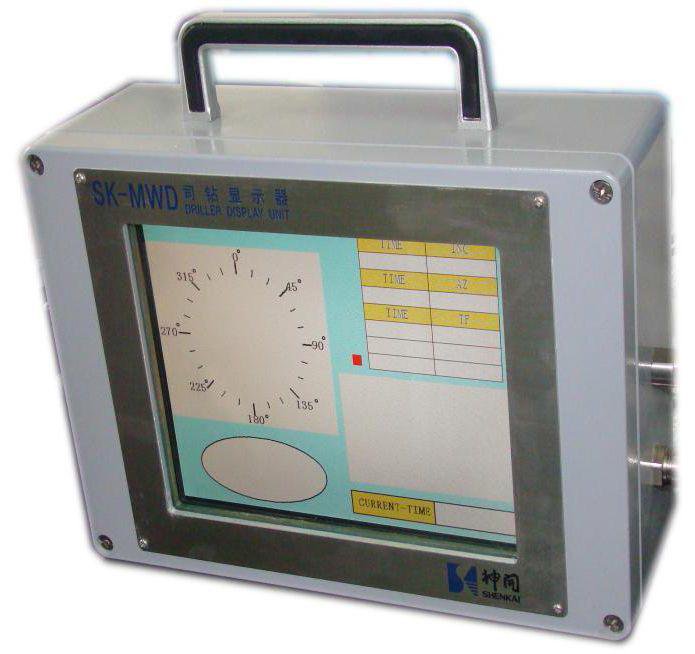

Pressure Sensor Drill's Monitor
Overall
