Blowout Preventer
09/05/2016

Blowout Preventer

General Introduction:

A blowout preventer is a large, specialized valve or similar mechanical device, usually installed redundantly in stacks, used to seal, control and monitor oil and gas wells. In addition to controlling the downhole (occurring in the drilled hole) pressure and the flow of oil and gas, blowout preventers are intended to prevent tubing (e.g. drill pipe and well casing), tools and drilling fluid from being blown out of the wellbore (also known as bore hole, the hole leading to the reservoir) when a blowout threatens. Blowout preventers are critical to the safety of crew, rig (the equipment system used to drill a wellbore) and environment, and to the monitoring and maintenance of well integrity; thus blowout preventers are intended to provide fail-safety to the systems that include them.

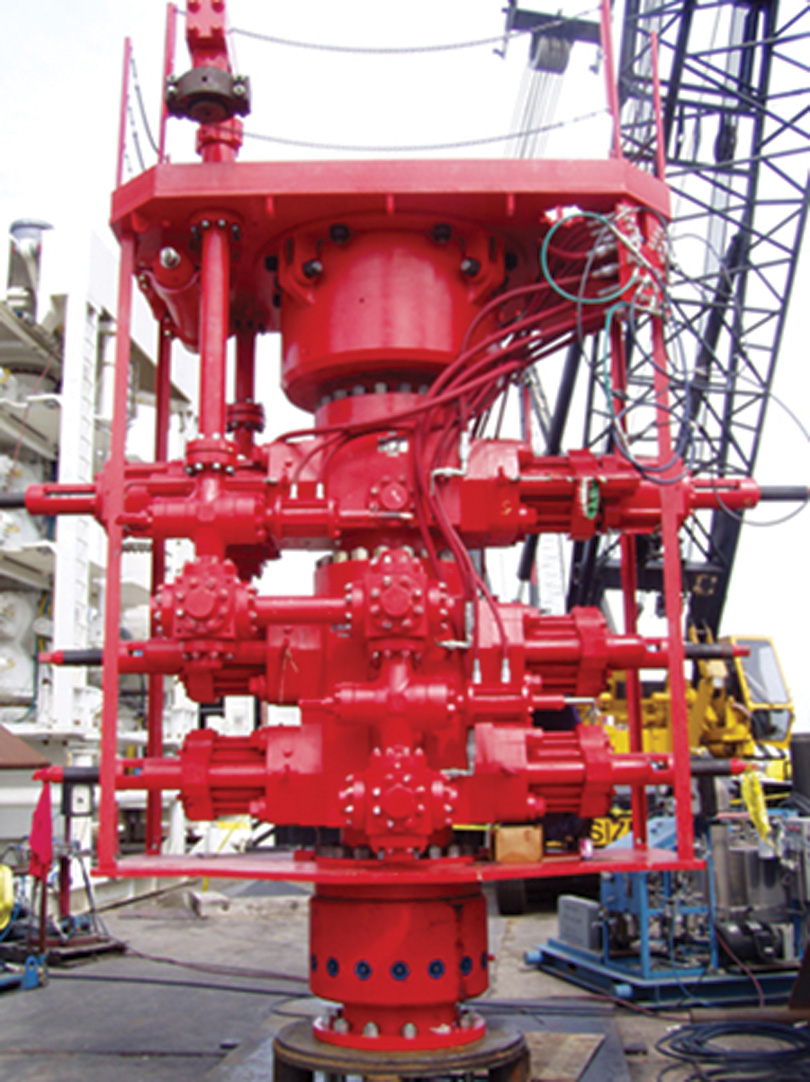

Most blowout preventer (BOP) stacks contain at least one annular BOP at the top of the BOP stack, and one or more ram-type preventers below.

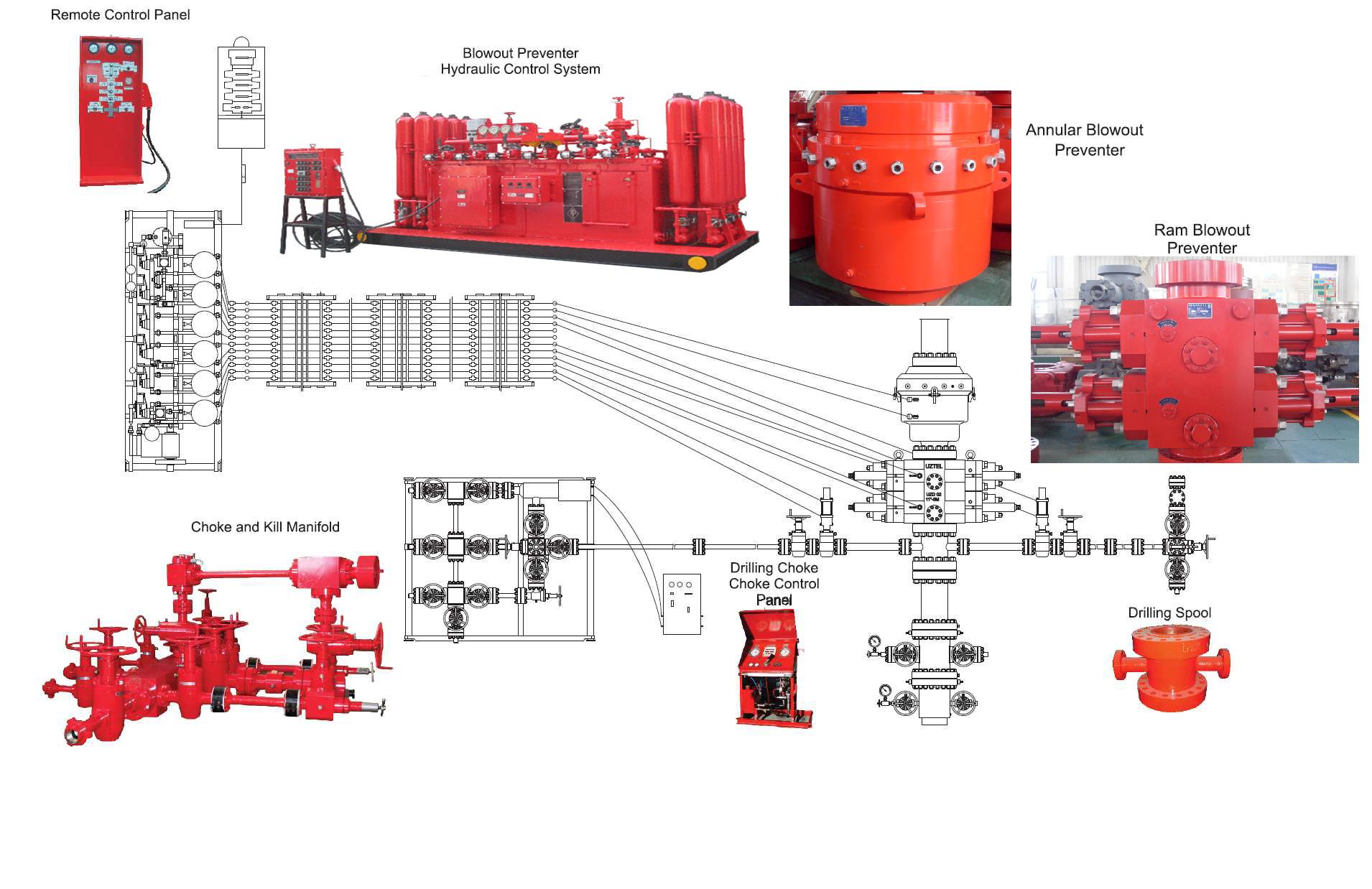

Whole BOP Operation Systerm

Usage:

Blowout preventers come in a variety of styles, sizes and pressure ratings. Several individual units serving various functions are combined to compose a blowout preventer stack. Multiple blowout preventers of the same type are frequently provided for redundancy, an important factor in the effectiveness of fail-safe devices.

The primary functions of a blowout preventer system are to:
Confine well fluid to the wellbore;
Provide means to add fluid to the wellbore;
Allow controlled volumes of fluid to be withdrawn from the wellbore.

Additionally, and in performing those primary functions, blowout preventer systems are used to:
Regulate and monitor wellbore pressure;
Center and hang off the drill string in the wellbore;
Shut in the well (e.g. seal the void, annulus, between drillpipe and casing);
Prevent the flow of formation fluid, influx, from the reservoir into the wellbore) ;
Seal the wellhead (close off the wellbore);
Sever the casing or drill pipe (in case of emergencies).

Types

BOPs come in two basic types, ram and annular. Both are often used together in drilling rig BOP stacks, typically with at least one annular BOP capping a stack of several ram BOPs.

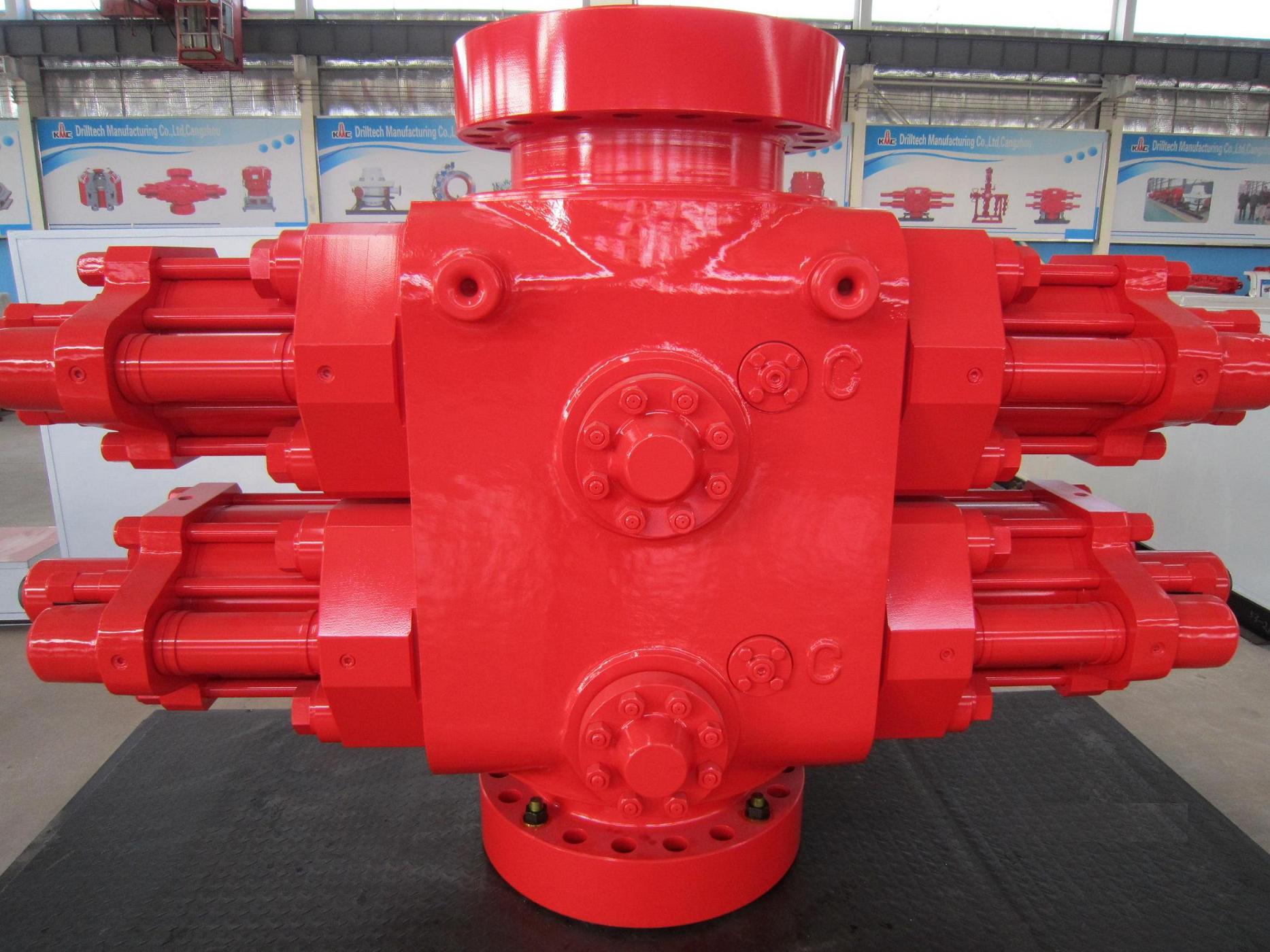

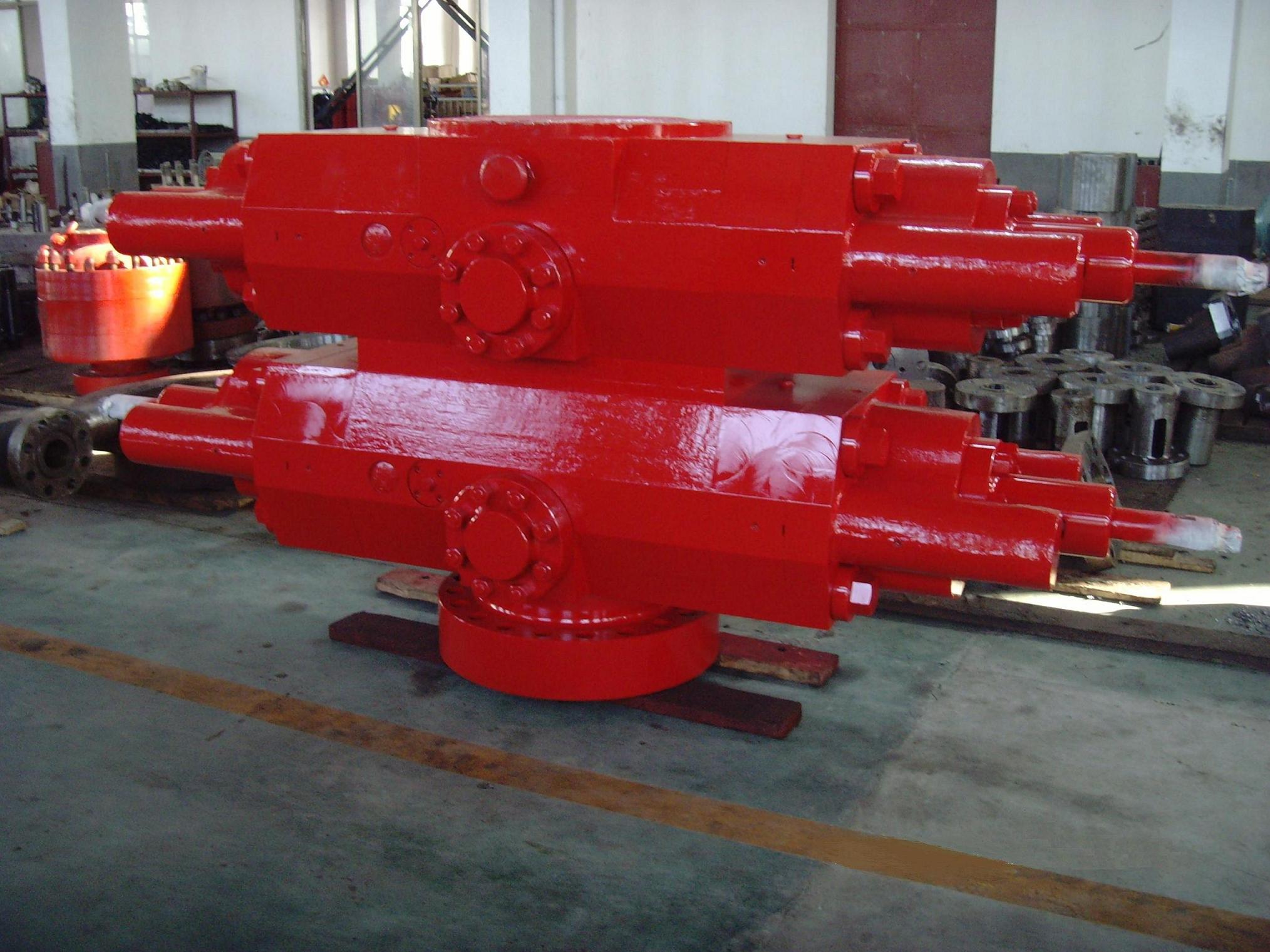

1.Ram blowout preventer

Introduction:

A ram-type BOP is similar in operation to a gate valve, but uses a pair of opposing steel plungers, rams. The rams extend toward the center of the wellbore to restrict flow or retract open in order to permit flow. The inner and top faces of the rams are fitted with packers (elastomeric seals) that press against each other, against the wellbore, and around tubing running through the wellbore. Outlets at the sides of the BOP housing (body) are used for connection to choke and kill lines or valves.

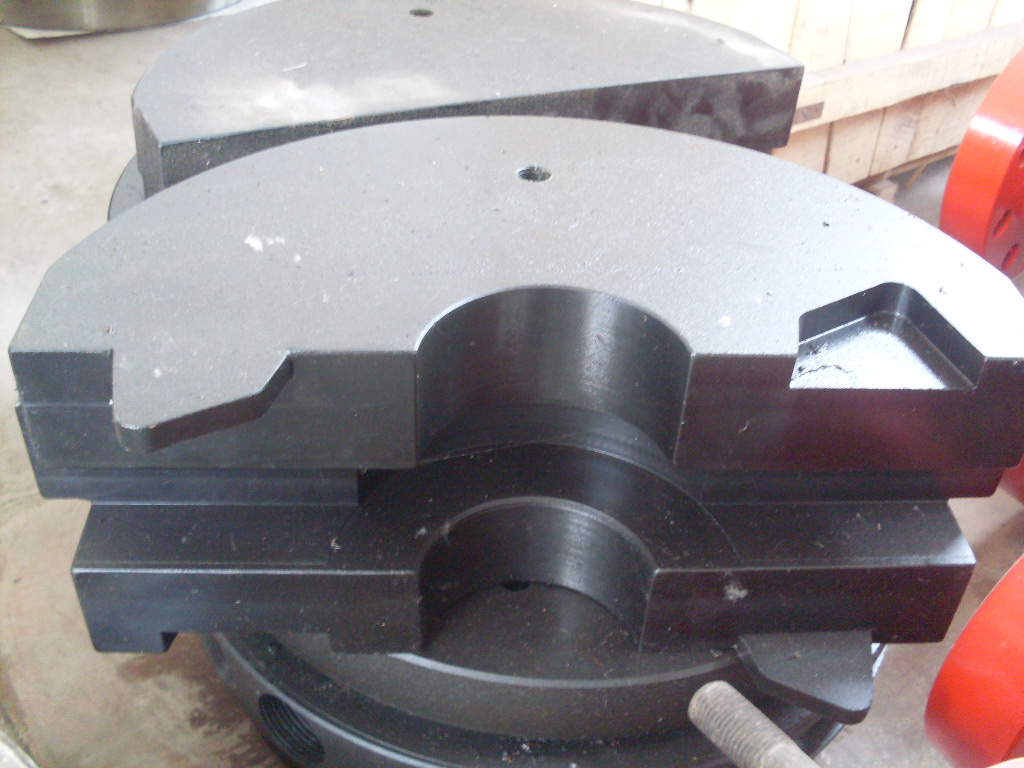

Four common types of ram blocks: pipe ram, blind ram, shear ram, and blind shear ram.

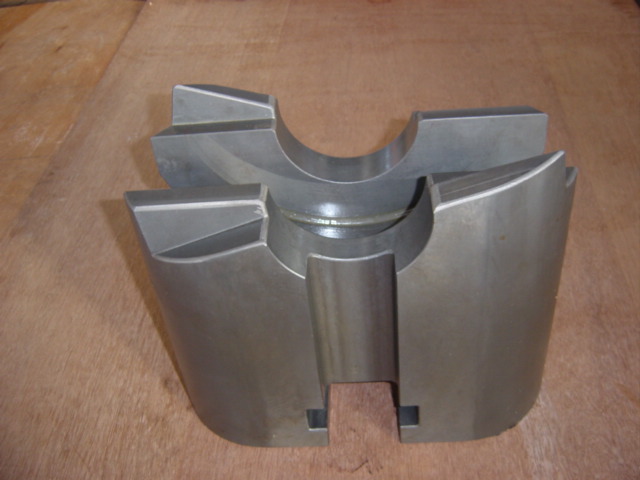

Pipe rams close around a drill pipe, restricting flow in the annulus (ring-shaped space between concentric objects) between the outside of the drill pipe and the wellbore, but do not obstruct flow within the drill pipe. Variable-bore pipe rams can accommodate tubing in a wider range of outside diameters than standard pipe rams, but typically with some loss of pressure capacity and longevity.

Blind rams (also known as sealing rams), which have no openings for tubing, can close off the well when the well does not contain a drill string or other tubing, and seal it.

Shear rams cut through the drill string or casing with hardened steel shears.

Blind shear rams (also known as shear seal rams, or sealing shear rams) are intended to seal a wellbore, even when the bore is occupied by a drill string, by cutting through the drill string as the rams close off the well. The upper portion of the severed drill string is freed from the ram, while the lower portion may be crimped and the “fish tail” captured to hang the drill string off the BOP.

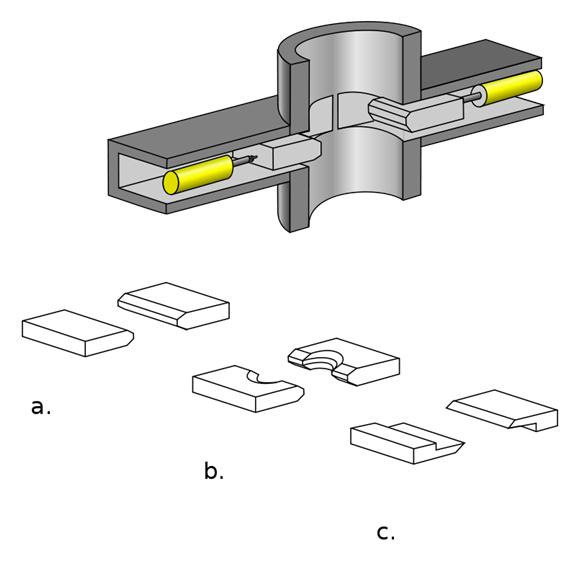

Respectively are: a. Blind ram  b. Pipe ram  c. Shear ram


2. Annular blowout preventer


An annular-type blowout preventer can close around the drill string, casing or a non-cylindrical object, such as the kelly. Drill pipe including the larger-diameter tool joints (threaded connectors) can be "stripped" (i.e., moved vertically while pressure is contained below) through an annular preventer by careful control of the hydraulic closing pressure. Annular blowout preventers are also effective at maintaining a seal around the drillpipe even as it rotates during drilling. Regulations typically require that an annular preventer be able to completely close a wellbore, but annular preventers are generally not as effective as ram preventers in maintaining a seal on an open hole. Annular BOPs are typically located at the top of a BOP stack, with one or two annular preventers positioned above a series of several ram preventers.

Function:

An annular blowout preventer uses the principle of a wedge to shut in the wellbore. It has a donut-like rubber seal, known as anelastomeric packing unit, reinforced with steel ribs. The packing unit is situated in the BOP housing between the head and hydraulic piston. When the piston is actuated, its upward thrust forces the packing unit to constrict, like a sphincter, sealing the annulus or openhole. Annular preventers have only two moving parts, piston and packing unit, making them simple and easy to maintain relative to ram preventers.

Category

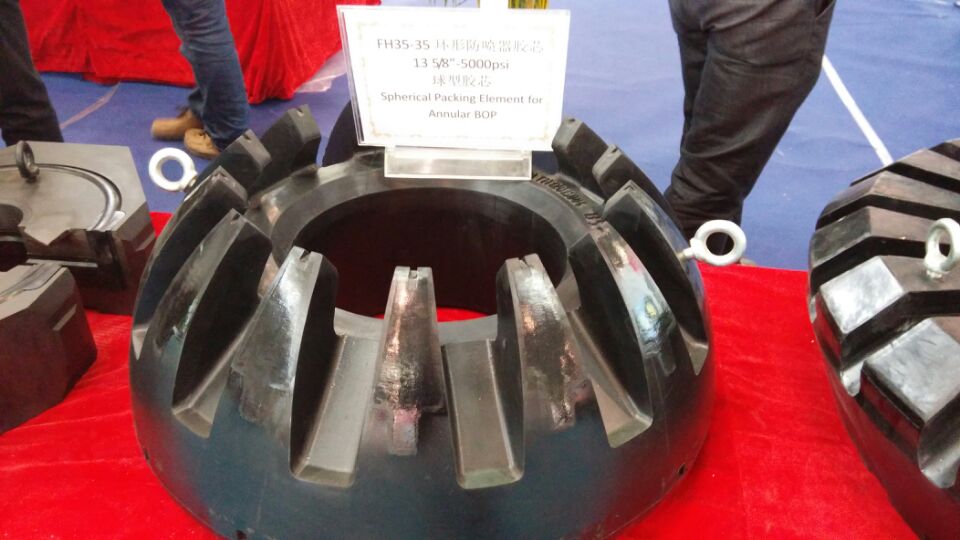

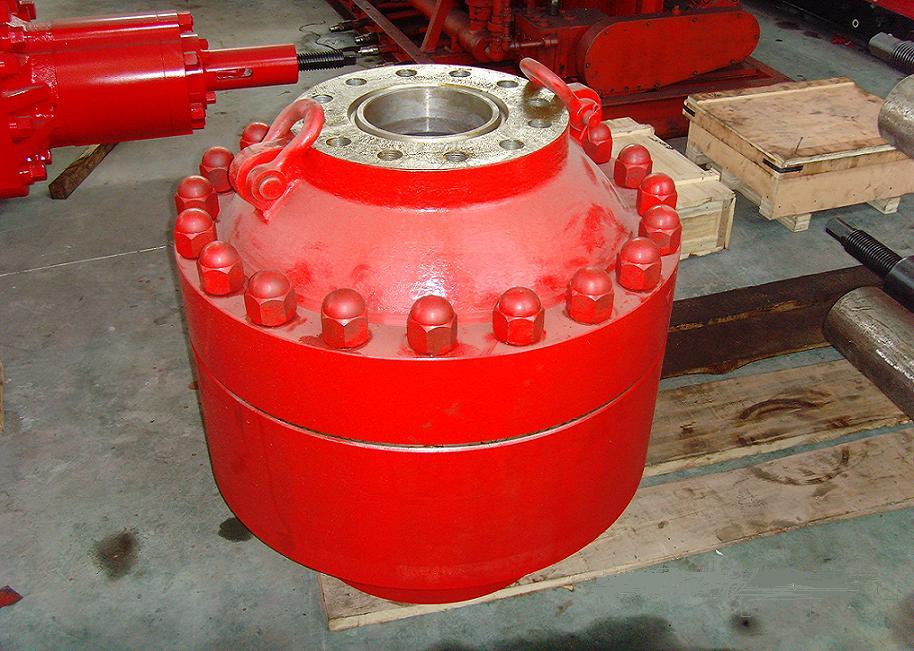

Annular BOP using the spherical packing element

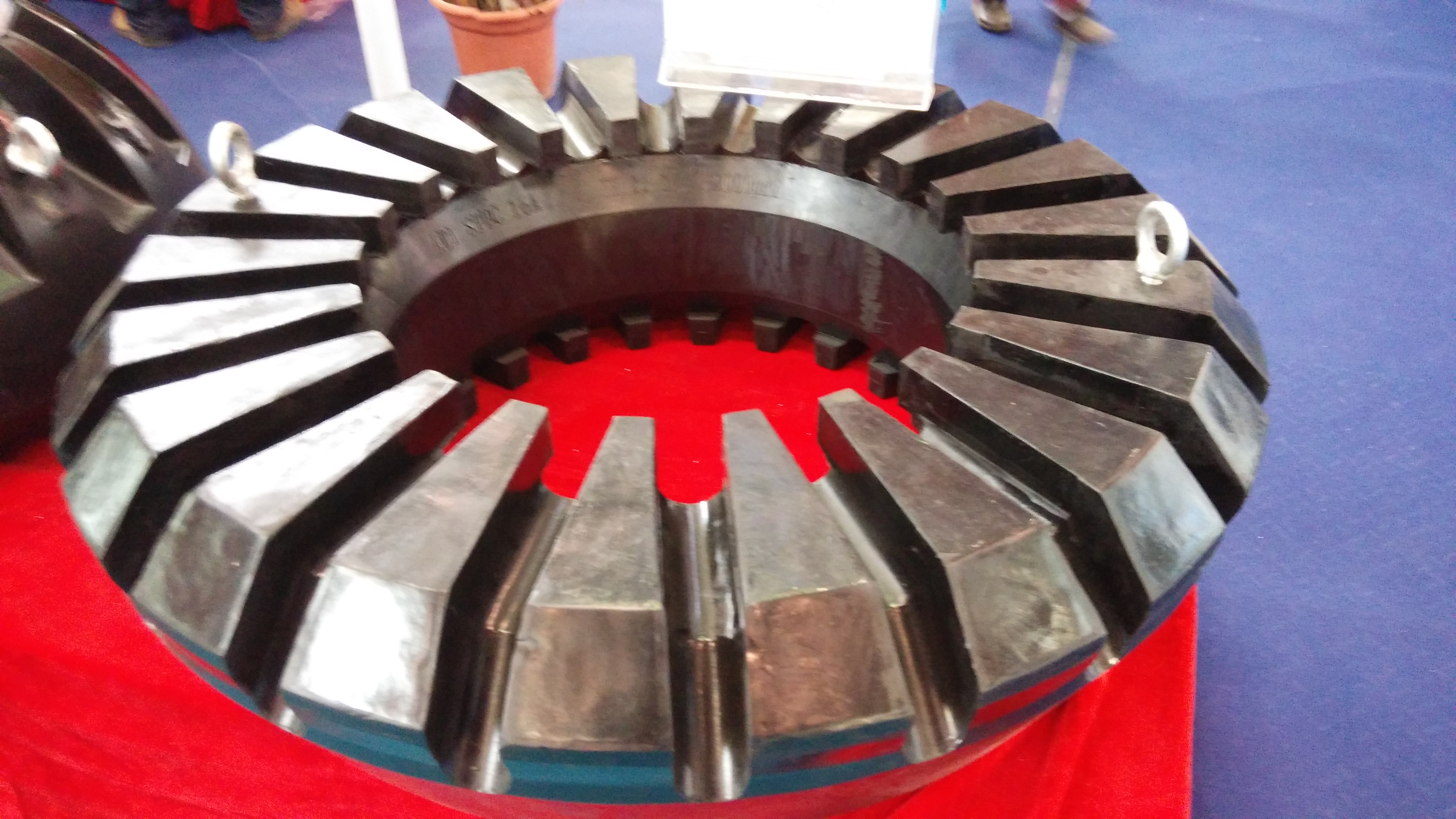

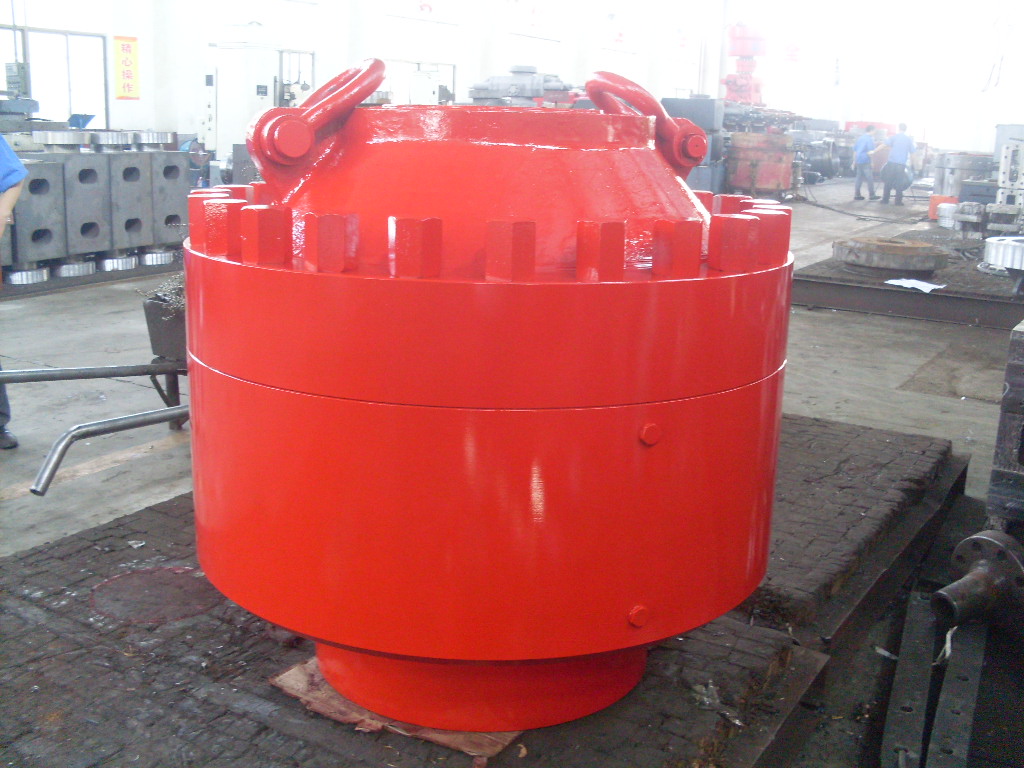

Annular BOP using the conical packing element

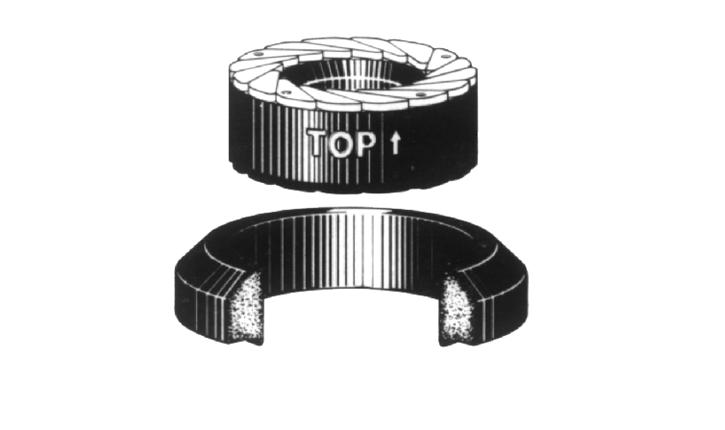

Annular BOP using the Combined packing element

Control methods

When rigs are drilled on land or in very shallow water where the wellhead is above the water line, BOPs are activated by hydraulic pressure from a remote accumulator. Several control stations will be mounted around the rig. They also can be closed manually by turning large wheel-like handles.
