Products > Drilling Equipment
Fishing Bumper Sub Type KXJ
Product Number: KW-DE-27 It is a releasing tool during the fishing operation.
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

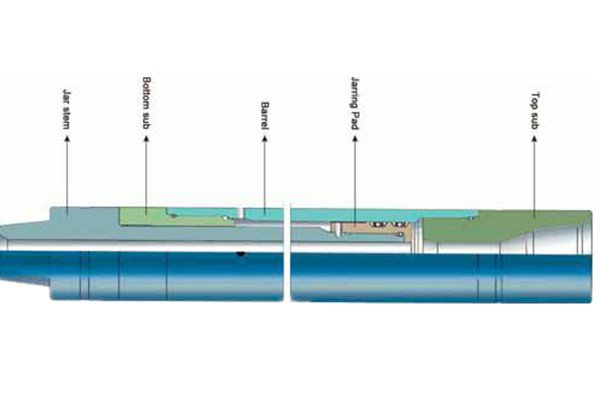

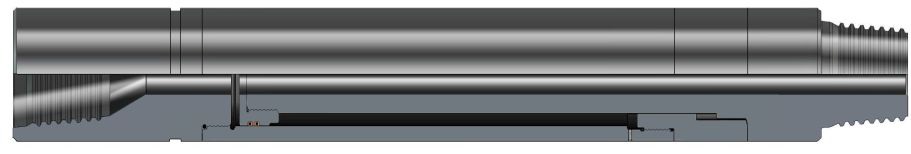

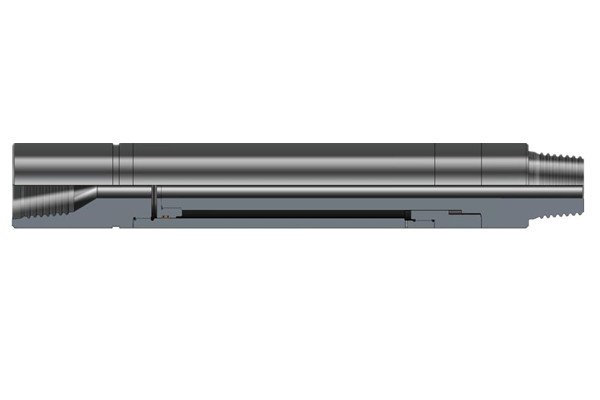

KINGWELL Fishing Bumper Sub Type KXJ
Model “KXJ” Fishing Bumper Sub has a long working stroke and large down jarring force. The simple structure can be in favor in maintenance and service. It is a releasing tool during the fishing
operation.
KINGWELL Fishing Bumper Sub Type KXJ Technical Data:
KINGWELL Fishing Bumper Sub Type KXJ Technical Data:
| Model |
O.D. mm(in) |
I.D. mm(in) |
Connec tion API |
Max working Load kN(lbf) |
Tensie Yield Strength kN(lbf) |
Max.Working Torgue kN·m(lbf·ft) |
Torsional Yield Strength kN·m(lbf·ft) |
Max. Stroke mm(in) |
Closed overall length mm(in) |
| KXJ73 | 73(2-7/8) | 20(13/16) | NC23 | 300(67000) | 500(112000) | 3(2200) | 4.5(3320) | 450(17-11/16) | 1510(59-7/16) |
| KXJ31 | 80(3-1/8) | 25.4(1) | NC23 | 340(76000) | 510(115000) | 3(2200) | 6(4400) | 450(17-11/16) | 1510(59-7/16) |
| KXJ95 | 95(3-3/4) | 38.1(1-1/4) | NC26 | 370(83100) | 560(125000) | 4(2950) | 8(5900) | 508(20) | 1800(70-7/8) |
| KXJ40 | 102(4) | 32(1-1/4) | 2 3/8REG | 540(120000) | 810(182000) | 4(2950) | 8(5900) | 700(27-9/16) | 1900(74-13/16) |
| KXJ42 | 108(4-1/4) | 38.1(1-1/2) | NC31 | 800(180000) | 1200(270000) | 10(7400) | 20(14800) | 440(17-5/16) | 1470(57-7/8) |
| KXJ44 | 114(4-1/2) | 38.1(1-1/2) | NC31 | 800(180000) | 1350(300000) | 10(7400) | 20(14800) | 440(17-5/16) | 1470(57-7/8) |
| KXJ46 | 121(4-3/4) | 38.1(1-1/2) | NC38 | 1000(225000) | 1670(375000) | 15(11000) | 27(20000) | 914(36) | 1986(78-3/16) |
| KXJ62 | 159(6-1/4) | 50.8(2) | NC50 | 1600(360000) | 2700(600000) | 25(18000) | 65(48000) | 1400(55-1/8) | 2627(103-7/16) |
| KXJ165 | 165(6-1/2) | 50.8(2) | NC50 | 2200(500000) | 3300(740000) | 25(18000) | 75(55000) | 1400(55-1/8) | 2633(103-5/8) |
| KXJ70 | 178(7) | 70(2 3/4) | NC50 | 1800(400000) | 2700(600000) | 30(22000) | 80(59000) | 1552(61-1/8) | 2737(107-3/4) |
| KXJ197 | 197(7-3/4) | 70(3 3/4) | 6 5/8REG | 1400(315000) | 2100(470000) | 30(22000) | 100(74000) | 1600(63) | 2925(115-3/16) |
| KXJ80 | 203(8) | 70(2 3/4) | 6 5/8REG | 2200(495000) | 3300(740000) | 35(26000) | 145(100000) | 1600(63) | 2901(114-3/16) |
| KXJ90 | 229(9) | 76(3) | 7 5/8REG | 3000(670000) | 6200(1400000) | 35(26000) | 160(118000) | 1600(63) | 2881(113-7/16) |
| KXJ241 | 241(9-1/2) | 76(3) | 7 5/8REG | 3500(787000) | 4100(920000) | 40(29500) | 180(133000) | 1600(63) | 2925(115-3/16) |
