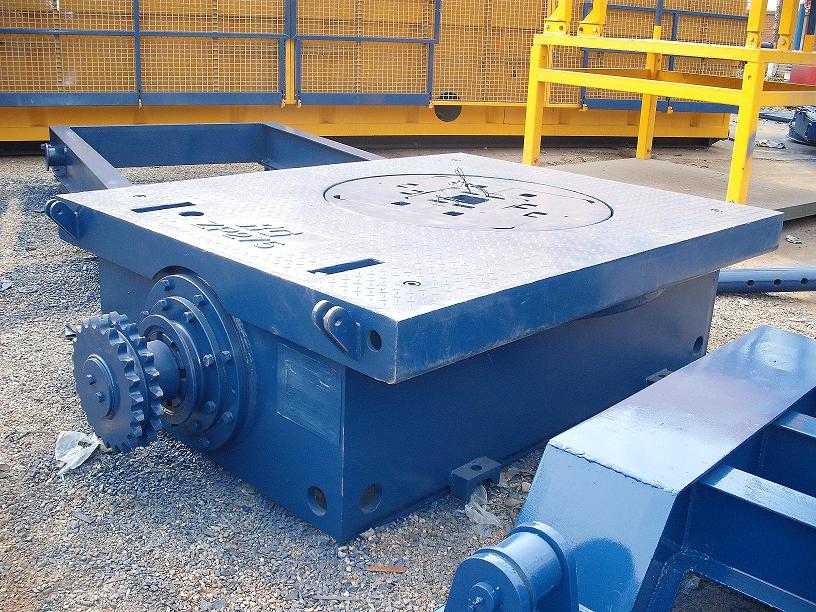

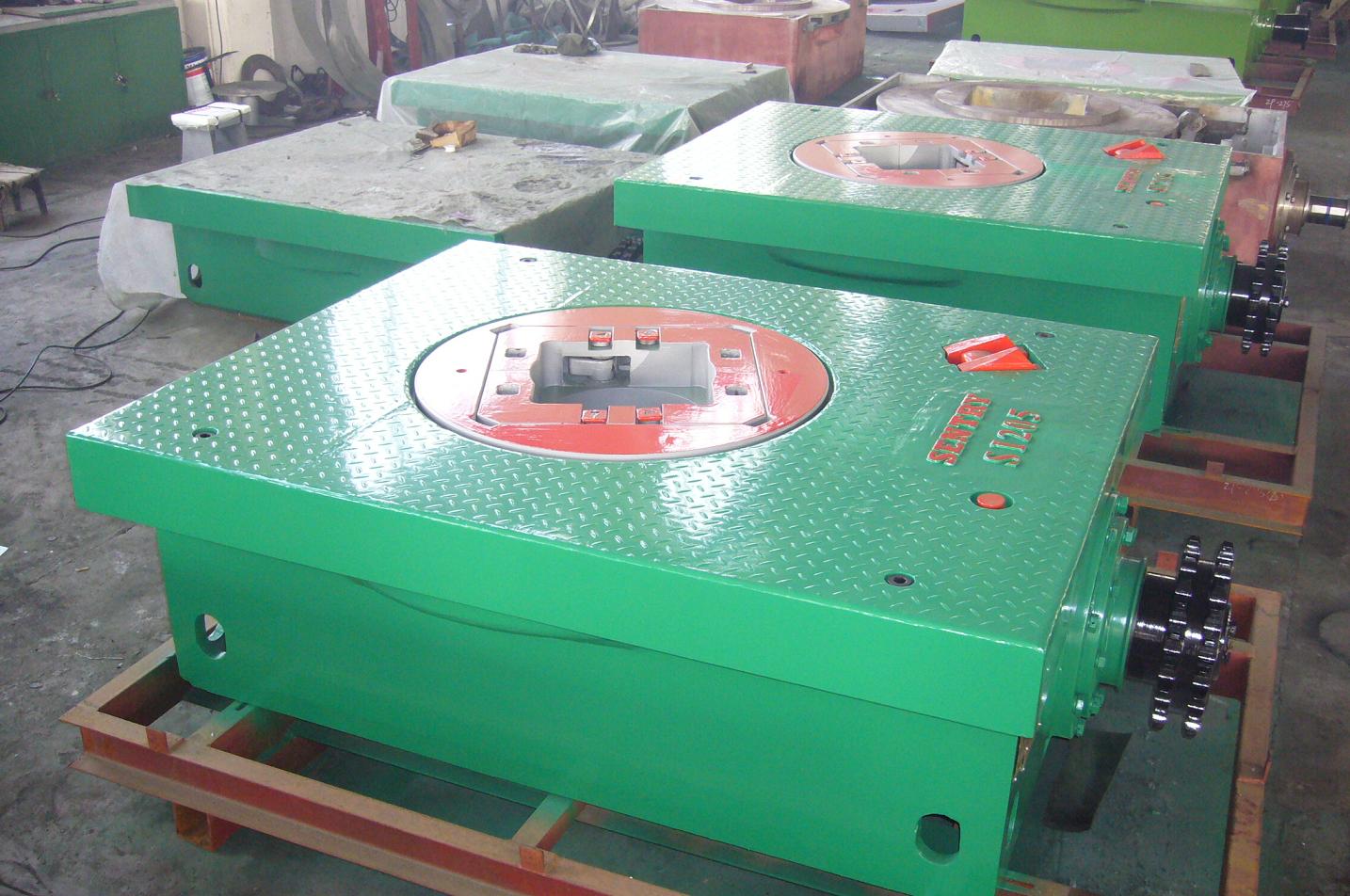

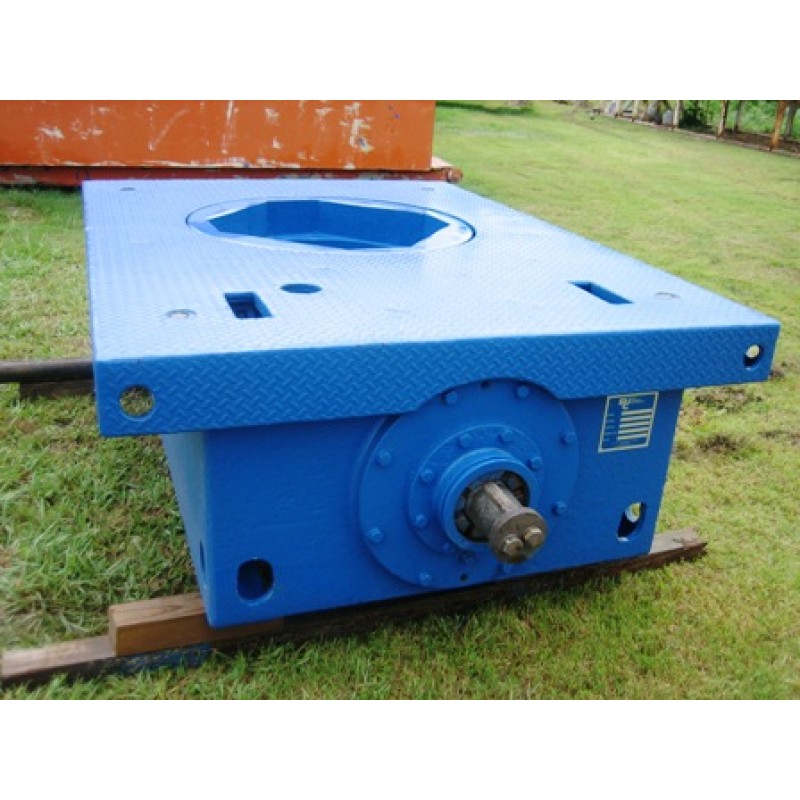

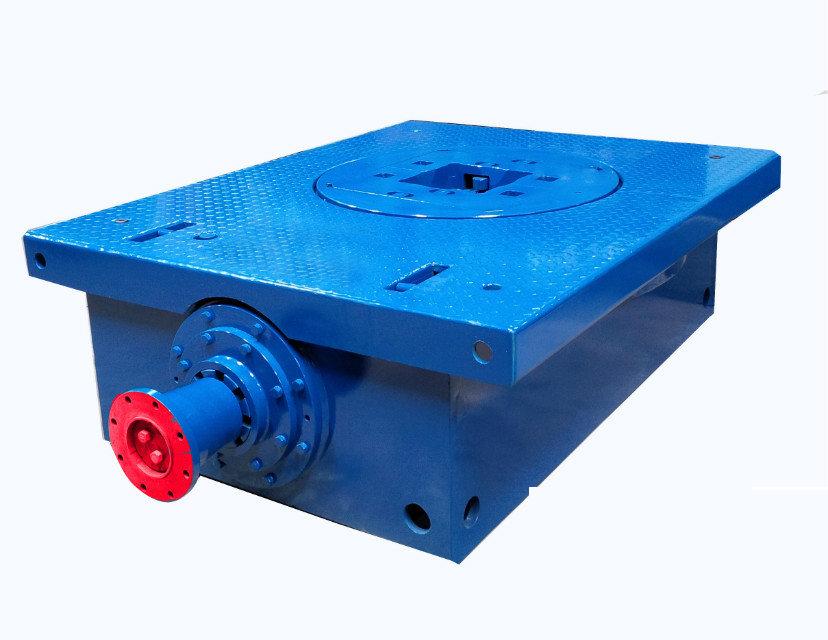

KINGWELL Rotary Table Features & Benefits:

Rotary table is effective device used in drilling rig which conforms to API spec 7K. Kingwell can offer a full range of table from 17 ½ to 60 ½.  These tables are able to stand the worst drilling conditions with fabricated frame, heavy duty main thrust bearing and precision machined spiral bevel gear. That is why our table is in superior strength, toughness and durability

1. Gear and pinion are made of alloy steel
2. Split main bushing is steel cast.  Kelly drive and slip drive are available for choose.
3. Match with API standard casing bushing and special lifting tool
4. Spiral bevel gear ensures a strong load capacity, steady operation and a long service life.
5. Efficient lubrication and reliable sealing.
6. Fabricated frame which ensures a strong rigidity and high precision.
7. Higher load, smaller overall size and lighter weight.

KINGWELL Rotary Table Technical Data:


Model	ZP175	ZP205	ZP275	ZP375	ZP495
Opening dia. mm(in)	444.5  (17 1/2)	520.7  (20 1/2)	698.5  (27 1/2)	952.5  (37 1/2)	1257.3  (49 1/2)
Distance between rotary center and the teeth center of inner sprocket mm(in)	1118 (44)	1353  (53 1/4 )	1353  (53 1/4 )	1353  (53 1/4 )	1651 (65)
Max. static load KN	1350	3150	4500	5850	7200
Max. working torque  Nm	14000	23000	28000	33000	37000
Max. speed  rpm	300	300	300	300	300
Gear ration	3.58	3.22	3.67	3.56	3.93
Dimensions (L x W x H) mm	1935×1280×585	2292×1475×668	2392×1670×685	2468×1810×718	2940×2184×813
Weight  kg	3888	5530	6163	7548	11626
