KINGWEL Ram Type Blowout Preventer Features & benefits:


Ram BOP is an important part of well-control equipments. It is mainly used to control wellhead pressure during drilling, workover operations and formation testing etc to prevent well blowout effectively and realize safe construction.


Our ram-type blowout preventers (BOPs) are in accordance with API 16A standards for low and high pressure applications. All components such as the ram block assemblies, pistons, body, pressure seals, flanged or studded end connections, and bonnets are remanufactured to API standards and are restored to a “like-new” condition. Our rebuilt Ram BOPs are high quality units sold at a fraction of buying an OEM replacement RAM BOP.

Category:

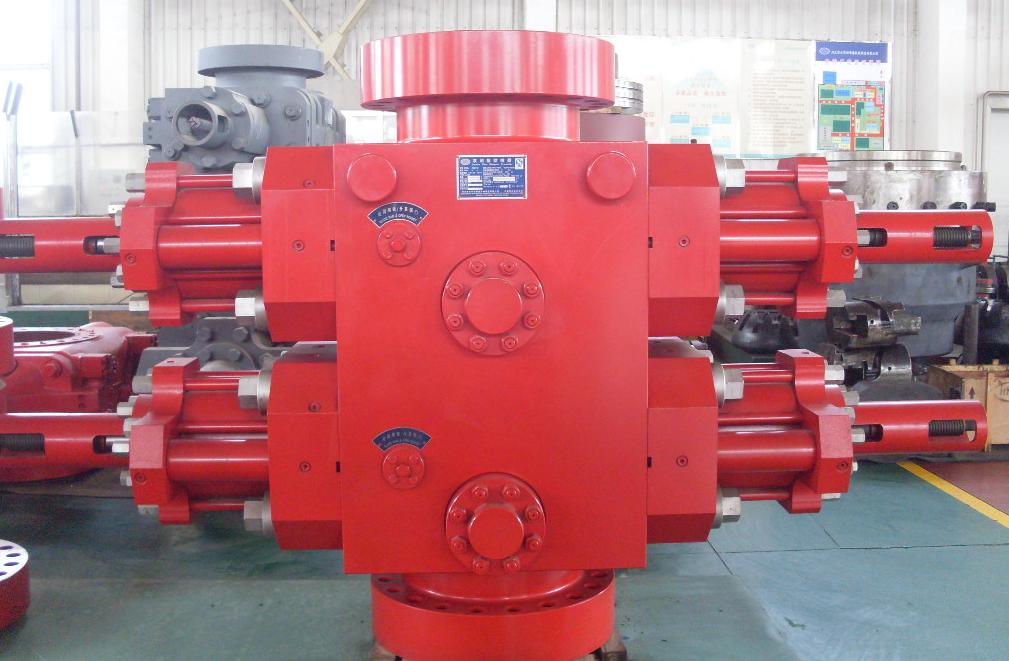

1. Classified as per ram quantity: Single ram blowout preventer; Double ram blowout preventer; Triple ram blowout preventer;

2. Classified as per ram shape:

Blind Rams: The rubber sealing element is flat and can seal the wellbore when there is nothing in it

Pipe Rams: The sealing element is shaped to fit around a variety of tubulars, which include production tubing, drill pipe, drill collars, and casing that will seal off the wellbore around it

Variable Bore Rams: The sealing element is much more complex and allows for sealing around a particular range of pipe sizes

Shearing Blind Rams: The blade portion of the rams shears or cuts the drill pipe, and then a seal is obtained much like the blind ram


KINGWEL Ram Type Blowout Preventer Technical Data:


Bore Size: 7 1/16～16 3/4(180mm～680mm)

Working Pressure: 14~140Mpa(2000~20000Psi)


Annular Blowout Preventer


KINGWEL Annular Blowout Preventer Features & benefits:

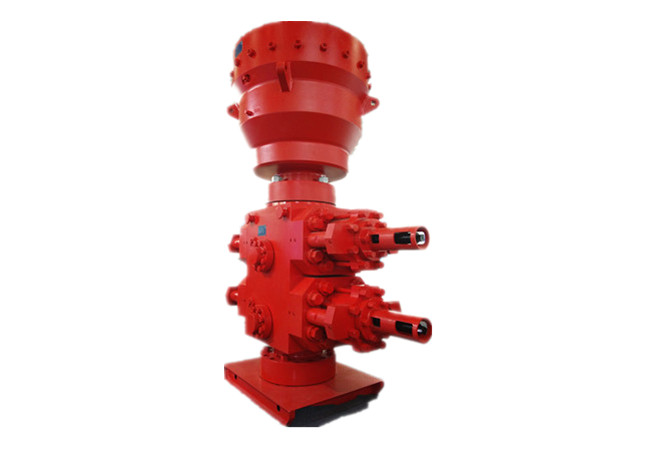

Annular BOP is an important part of well-control equipments. It mainly applies to control wellhead pressure during drilling workover operations and formation testing etc to prevent well blowout effectively and realize safe construction. Annular BOP shall be equipped with hydraulic control system. It is usually used with ram BOP and also independently.

Annular BOP consists of the body, upper housing, dust-proof ring, piston and packing elemant etc. It can seal all size of kelly, drill pipes, drill pipes subs, drill collar, casing strings and cables in various shapes.

Usages:


When there is no drilling tool in hole, it can seal the wellhead completely.

It can seal any size of annular space with a kind of rubber if there is a drilling tool, tubing or casing in hole.

When the well blowout and overflow happens during drilling, coring or well logging, it can seal the annular spaces between Kelly, coring tools, cable, wireline and wellbore.

Under the control of the hydraulic control system which is equipped with a depressuring pressure regulating valve or a cushion accumulator, it can force stripping with 18°tool joint.


Category：


Annular BOP using the spherical packing element

Annular BOP using the conical packing element

Annular BOP using the Combined packing element


KINGWEL Annular Blowout Preventer Techincal Data:


Bore Size: 7 1/16～21 1/4 3/4(180mm～540mm)

Working Pressure: 14~105Mpa(2000~15000Psi)

The Key Spare Part for BOP:


Rotating BOP, Model FXB20/35-14/21                 USD PRICE,Control unit and BOP=223076.00
· Max. Static sealing pressure: 3000 psi
· Max. Dynamic Sealing Pressure: 1200 psi
· Max. Rotary Speed: 100 rpm
· Center pipe size: 7 inch
· Rotating Assy OD: 436 mm
· Sealing range: 5 1/4" Hex. Kelly + 5" Drill pipe with 18 degree and 35 degree taper
· Working temperature: -18~121 Degree
· Bottom flange size: 13 5/8-5000 psi 6BX BX 160
Side flange size: 7 1/16" x 5000 psi 6B R46 & 2 1/16" x 5000 psi 6B R24
