Drilling Jar


Product Number: KW-DE-10 Drilling Jar is an effective tool for releasing stuck drill pipe and an accelerator is used to intensify force


We're here to help:
Easy ways to get the answers you need.


  • +86-029-88601839
  • +86-029-88601839
  • kingwell@kingwelloilfield.com
  • Follow Us:

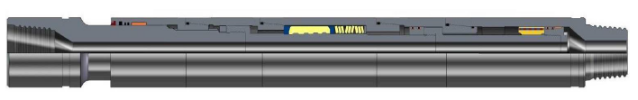

KINGWELL Drilling Jar Features & Benefits:

The KINGWELL Drilling Jar is an effective tool for releasing stuck drill pipe and an accelerator is used to intensify force generated by the drilling jar at the upper depth of the well.

The KINGWELL Drilling Jar is designed to perform in any drilling environment, including offshore, onshore, conventional, horizontal and deep drilling.

KINGWELL Drilling Jar Technical Data:

Type O.D. I.D. Tool Joint Up Stroke mm Down Stroke Max. Tensile Load Max. up Jarring Max. down Jarring
mm mm Connection (in) mm kN KN KN
(in) (in) API   (in) (Lbf) (Lbf) (Lbf)
KW121 124 50.8 NC38 227 102 1300 250 200
-4 7/8 -2 -8.9 -4 -362000 -56250 -45000
KW121Ⅱ 121 57.2 NC38 227 102 1300 250 200
-4 3/4 -2 1/4 -8.9 -4 -362000 -56250 -45000
KW159 159 57 NC46 230 152 2220 600 330
-6 1/4 -2 1/4 -9 -6 -730000 -135000 -74250
KW165 165 70 NC50 230 152 2220 600 330
-6 1/2 -2 3/4 -9 -6 -730000 -135000 -74250
KW178 178 70 NC50 230 152 2220 600 330
-7 -2 3/4 -9 -6 -730000 -135000 -74250
KW203 203 76.2 65/8REG 232 152 2500 800 400
-8 -3 -9.1 -6 -1000000 -180000 -90000
KW241 241 76.2 75/8REG 232 152 5400 1400 460
-9 1/2 -3 -9.1 -6 -2160000 -315000 -103500




KINGWELL Other Types Drill Jar

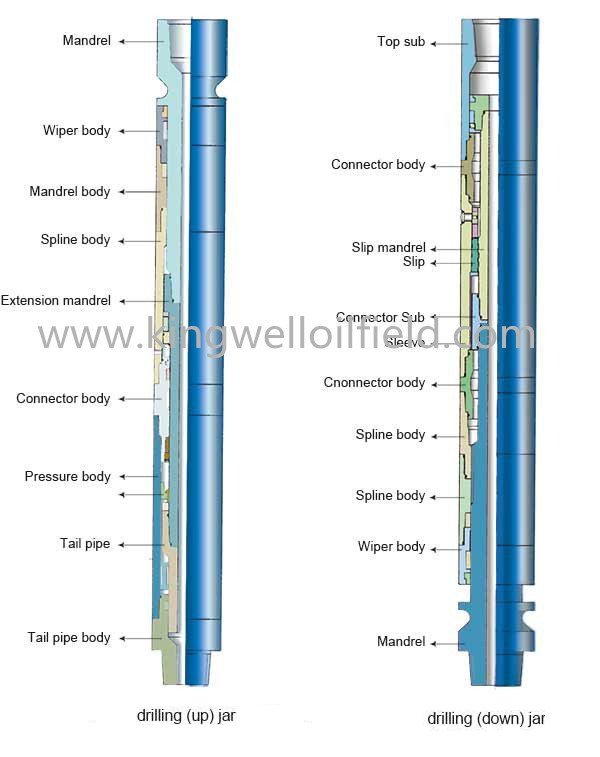

Mechanical Drilling Jar Type KW
The up-down jarring tonnage can be adjusted for a large range.The Drilling Jar can be actuated by mechanical fully. The inner chamber cannot produce high-pressure. The change of oiliness cannot impact jarring effect.The low sealing property can make the using life improve observably.The mounted special flexible joint can reduce the bending stress of Jar body effectively.It should adopt the new special material as to insure the higher performance.It should be used for straight hole, deep hole, complicated hole and directional hole.




Full-Hydraulic Drilling Jar Type KWⅡ
The up-down jarring of Full-Hydraulic Drilling Jar Type KWII can be acted hydraulically, realizing the stepless control of up-down jarring tonnage. It can protect the drill string effectively and improve the using life. The hydraulic stored energy mechanism has the advantage of reliable property and good stability. The scope of time delay interval can be 30s~240s;the scope of service temperature can be - 40℃~180℃. It can adopt the new special material for higher property and safety. It can normally used for drilling, coring, work over and fishing etc.






Integral Mechanical Drilling Jar Type QW
Model “QW” Drilling Jar can be actuated by mechanical fully. The inner chamber cannot roduce high-pressure. The change of oiliness cannot impact jarring effect.The short overall length can reduce the harm of bending alternating stress, facilitating the conveyance. It has the low sealing property and reliable using property.It should be used for offshore drilling and directional Drilling.






Hydro-Mechanical Drilling Jar Type QWJX
Model QWJX Drilling Jar can integrate the mechanical and hydraulic. The up jarring can be acted by hydraulic as to realize the stepless control of up jarring tonnage. The lock mechanism designed specially can avoid the mistaken jarring of up. The down jarring can be acted mechanically. It can adopt the new special material for higher property and safety. It can be used for directional hole, deep hole and so on.





Mechanical & Hydraulic Drilling Jar Type KWQW
Model “KWQW” Drilling Jar belongs to the advanced product of model JYQ Jar. The up jarring can be acted by hydraulic as to realize the stepless tonnage control. The new hydraulic valve machine makes upjarring more stable and reliable. The down jarring can be acted mechanically. And the adjusting mechanism designed specially can realize manual regulation of down-jarring tonnage; the special slips construction makes down-jarring more stable and larger service. It can adopt the new special material for higher property and safety. It can be used for directional hole, deep hole and so on.
