Products > Drilling Equipment
Two-action Drill Accelerator Type SZJQ
Product Number: KW-DE-37 It can be stored energy by hydraulic spring and should be applied with Model QYⅡ Hydraulic Drilling Jar jointly.
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

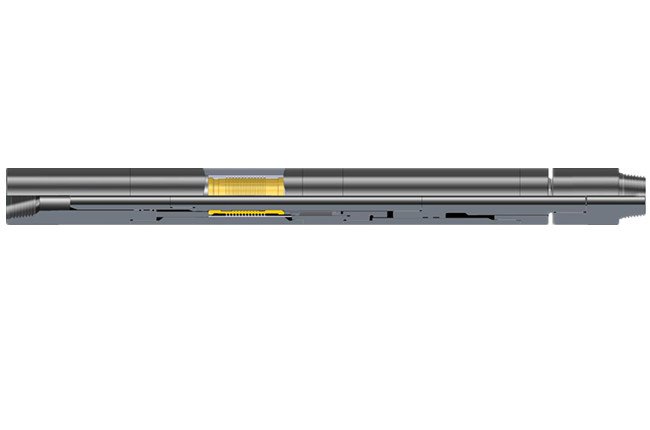

KINGWELL Two-action Drill Accelerator Type SZJQ
Two-action Drill Accelerator Type SZJQ can be stored energy by hydraulic spring. It should be applied with Model QYⅡ Hydraulic Drilling Jar jointly. The drill collar and Hydraulic Jar
(below the Drill Accelerator ) can function an accelerated effect when jarring operates as for making the stuck point gain more jarring force. Meanwhile, it can decrease the damage of tremor produced by up-down jarring for drill tools above Drill Accelerator.
KINGWELL Two-action Drill Accelerator Type SZJQ Technical Data:
| Model |
O.D. mm(in) |
I.D. mm(in) |
Connection API |
Max. Upjarring Stroke mm(in) |
Max. Downjarring Stroke mm(in) |
Hole Seal Pressure Mpa(psi) |
Max Working Load kN(lbf) |
Yield Tension kN(lbf) |
Max Torque kN﹒m (lbf·ft) |
Yield Torque kN﹒m (lbf·ft) |
Length mm(in) |
| SZJQ95 |
95 (3-3/4) |
31.8 (1-1/4) |
NC26 |
178 (7) |
178 (7) |
35 (5000) |
600 (135000) |
800 (180000) |
4 (3000) |
40 (29500) |
6651 (261-7/8) |
| SZJQ121 |
121 (4-3/4) |
50.8 (2) |
NC38 |
178 (7) |
178 (7) |
1100 (247000) |
1560 (350000) |
15 (11000) |
27 (20000) |
7185 (282-3/4) |
|
| SZJQ165 |
165 (6-1/2) |
57.2 (2-1/4) |
NC50 |
165 (6-1/2) |
165 (6-1/2) |
2000 (450000) |
3750 (700000) |
25 (18400) |
75 (55300) |
7476 (294-3/8) |
|
| SZJQ197 |
197 (7-3/4) |
71.4 (2-13/16) |
6 5/8REG |
203 (8) |
203 (8) |
2600 (585000) |
4000 (900000) |
30 (22100) |
100 (73700) |
8000 (315) |
|
| SZJQ203 |
203 (8) |
71.4 (2-13/16) |
6 5/8REG |
203 (8) |
203 (8) |
2600 (585000) |
4000 (900000) |
30 (22100) |
100 (73700) |
8000 (315) |
|
| SZJQ241 |
241 (9-1/2) |
76.2 (3) |
7 5/8REG |
254 (10) |
254 (10) |
3500 (787000) |
5800 (1300000) |
40 (29500) |
180 (133000) |
7259 (285-3/4) |
