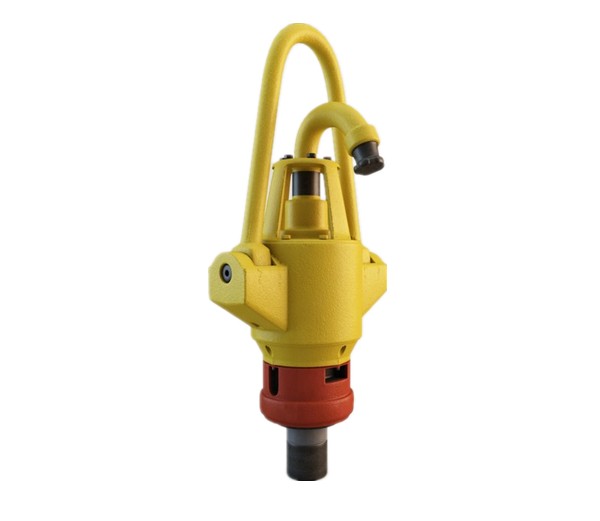

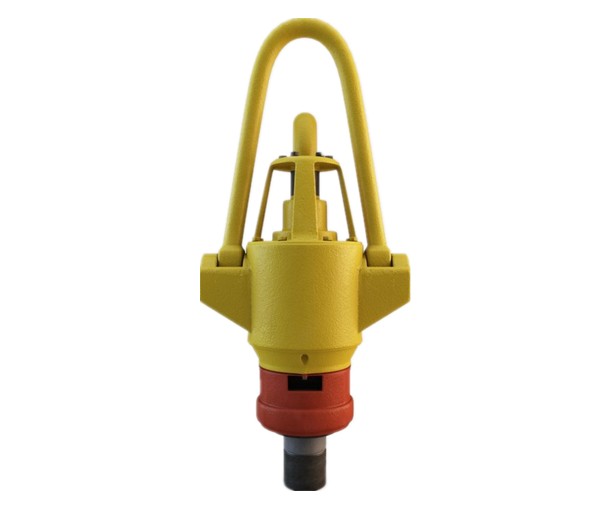

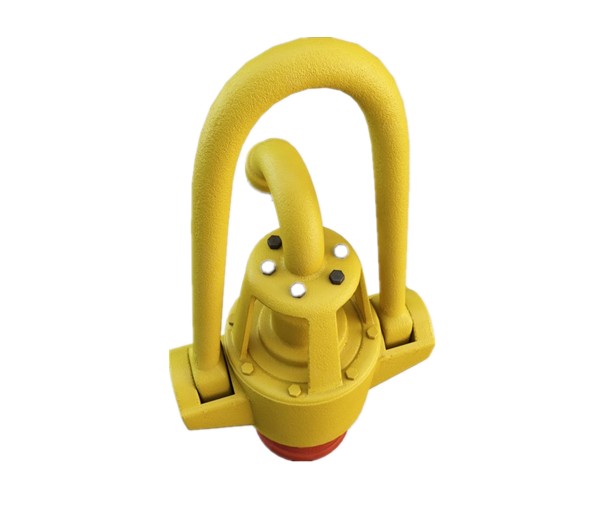

Rig Swivel


Product Number: KW-RP-04 A water swivel allows fluid or air to pass into a rotating pipe. The swivels job is simple though very demanding.


We're here to help:
Easy ways to get the answers you need.


  • +86-029-88601839
  • +86-029-88601839
  • kingwell@kingwelloilfield.com
  • Follow Us:
KINGWELL Swivel Features & Benefits:

A water swivel allows fluid or air to pass into a rotating pipe. The swivels job is simple though very demanding. If the
HPU's (Hydraulic Power Units) are the heart of the drilling rig system the water pump and water swivel are the veins. KINGWELL swivel has certificated by international institutions, API and ISO, GOST

KINGWELL Swivel Technical Data:

Model SL135 SL160 SL170 SL225 SL450 LB140 CH125
Max. static load rating
(kn)
1350 1600 1700 2250 4500 1245 1250
Max. Speed
(r/min)
300 300 300 300 300 300 300
Max. working pressure
(Mpa)
27.5 35 35 35 35 27.5 21
Dia. of stem
(mm)
60 57 70 75 75 60 68
  15° 15° 15° 15° 15° 15° 15°
Coupling thread API
To stem
4 1/2
FH LH
4 1/2
REG LH
4 1/2
REG LH
65/8
REG-LH
6 5/8
REG LH
4 1/2
FH LH
4 1/2
FH LH
API
To Kelly
6 5/8
REG LH
6 5/8
REG LH
6 5/8
REG LH
6 5/8
REG LH
75/8
REG LH
6 5/8
REG LH
6 5/8
REG LH
Overall dimension(L×W×H)
(mm)
2291×
638×
648
2267×
781×
660
2169×
638×
648
2980×
1060×
860
3034×
1096×
1110
2291×
638×
648
620×
660×
2099
Weight
(kg)
777 1750 1500 2500 3060 777 625
