Manufacturer of Top Quality O.E.M. Interchangeable Pump Parts:

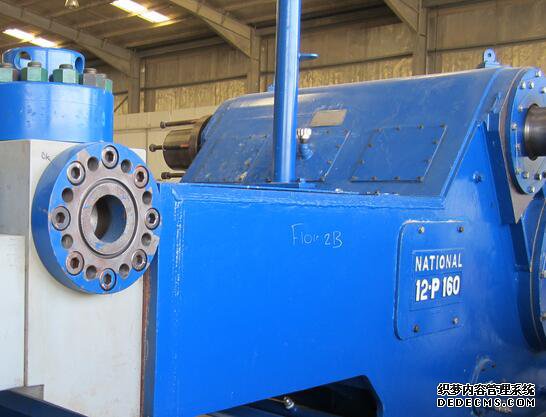

| National 12-P-160 Triplex Mud Pumps 7 1/4" x 12" | ||||||||||||||||
| Liners | Liner Gaskets | Pistons | Piston Replacement Rubbers | |||||||||||||
| Size | Ceramic | Supreme | Rubber | Urethane | White Lightning | Supreme | Green Duo | Flexlip | White Lightning | Supreme | ||||||
| 4" | PPNO 012180170 | PPNO 1502052 | PPNO 011102926 | PPNO 015180102 | ||||||||||||
| 4 1/4" | ||||||||||||||||
| 4 1/2" | PPNO 012180197 | PPNO 012180196 | PPNO 1502054 | PPNO 011102928 | PPNO 015180145 | PPNO 015180144 | ||||||||||
| 4 3/4" | ||||||||||||||||
| 5" | PPNO 07466500 | PPNO 05466500 | PPNO 07923265 | PPNO 012180254 | PPNO 012180253 | PPNO 1502056 | PPNO 011103033 | PPNO 015180186 | PPNO 015180185 | |||||||
| 5 1/4" | ||||||||||||||||
| 5 1/2" | PPNO 07466550 | PPNO 05466550 | PPNO 07923263 | PPNO 012180338 | PPNO 012180337 | PPNO 1502058 | PPNO 011103132 | PPNO 015180228 | PPNO 015180227 | |||||||
| 5 3/4" | ||||||||||||||||
| 6" | PPNO 07466600 | PPNO 05466600 | PPNO 07923261 | PPNO 012180395 | PPNO 012180394 | PPNO 1502060 | PPNO 011103629 | PPNO 015180269 | PPNO 015180268 | |||||||
| 6 1/4" | PPNO 05466625 | PPNO 07923283 | PPNO 012180493 | PPNO 1502061 | PPNO 011103322 | PPNO 015180285 | PPNO 015180284 | |||||||||
| 6 1/2" | PPNO 07466650 | PPNO 05466650 | PPNO 07923284 | PPNO 012180536 | PPNO 012180535 | PPNO 1502062 | PPNO 011103827 | PPNO 015180301 | PPNO 015180300 | |||||||
| 6 3/4" | ||||||||||||||||
| 7" | PPNO 07466700 | PPNO 05466700 | PPNO 07923285 | PPNO 012180619 | PPNO 012180618 | PPNO 1502064 | PPNO 011103926 | PPNO 015180343 | PPNO 015180342 | |||||||
| Valves, Seats, Springs & Inserts | Gaskets | |||||||||||||||
| Roughneck | Roughneck HP | Supreme | OEM | Urethane | L Style | Urethane | ||||||||||
| Valve - White Lightning Insert | PPNO 9700368 | PPNO 9700356 | PPNO 060155042 | N/A | Valve Cover | PPNO 1540138 | PPNO 1540127 | PPNO 07207119 | ||||||||
| Valve - Urethane Insert | PPNO 9700250 | PPNO 9700354 | PPNO 060155041 | PPNO 1560985 | Cylinder Head | |||||||||||
| Valve - Rubber Insert | PPNO 9700293 | N/A | PPNO 060155033 | PPNO 1560984 | Plug Seal | |||||||||||
| Seat | PPNO 9702539 | PPNO 9702539 | PPNO 061102505 | PPNO 1561440 | HYDRA-LOK | OEM | Mission L | |||||||||
| Spring | PPNO 8201684 | PPNO 8201684 | PPNO 055413421 | PPNO 1560702 | Complete Assembly | PPNO 80500100 | PPNO 80500100 | |||||||||
| Spring - Stainless | PPNO 055402945 | |||||||||||||||
| Insert - Urethane | PPNO 9705228 | PPNO 9700360 | PPNO 062400338 | PPNO 1560557 | Modules | OEM | Mission L | |||||||||
| Insert - Rubber | PPNO 9705244 | N/A | PPNO 062400239 | PPNO 1560558 | Complete Assembly | PPNO FEMNAT12PCA | PPNO FEM12PASSYSWNS | |||||||||
| Seat Puller Assemblies | Discharge Module Studded | PPNO 1292240 | PPNO FEM12PDISSWNS | |||||||||||||
| Puller Assembly | PPNO M1060 | PPNO M1060 | PPNO M1060 | PPNO M1060 | Suction Module Studded | PPNO FEMNATSUC12P | PPNO FEM12PSUCSWNS | |||||||||
| Puller Head | PPNO 8401985 | PPNO 8401985 | PPNO 181235300 | PPNO M1092 | One Piece OEM Style Studded | |||||||||||
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods | ||||||||||||||||
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | Pony Rod Baffle | Piston Rod | Sub Rod | Stud | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal | ||||||
| PPNO 1602586 | PPNO 2095220 | PPNO 005402052 | PPNO 1292147 | PPNO 1292146 | PPNO 1292194 | w/ Spray | PPNO 1292085 | PPNO CRN-1 | PPNO 07209103 | |||||||
| w/o SPRAY | PPNO 005417357 | |||||||||||||||
Fluid End Modules & Accessories
| National 12-P-160 7 1/4" x 12" Style "L" Module Fluid End Modules & Accessories | ||||
| Item # | Qty | AM OEM Part # | AM Part # | Description |
| 3 | PPES 8476-A | PPNO Fem12Passysw | Fluid End Module Complete Assembly (Includes Items: 1-23) | |
| 1 | 3 | PPES 8476-2S | PPNO Fem12Psucsw | Module, Suction Studded (Includes Items: 1,13,14,& 22) |
| 2 | 3 | PPES 8476-1D | PPNO Fem12Pdissw | Module, Discharge Studded - (Includes Items: 2,3,4,5,6,7,8,13 & 14) |
| 3 | 18 | PPES 4018-17 | PPNO 12P160Dsucs | Stud, Discharge To Suction Module |
| 4 | 18 | PPNO Pep55 | Nut, Discharge To Suction Stud | |
| 5 | 30 | PPES 4015-95 | PPNO Nat12P160Pfs | Stud, Power End |
| 6 | 30 | PPNO Nat8P80Trsn | Nut, Power End Stud | |
| 7 | 6 | PPES 8488-5 | PPNO Pep70 | Pin, Dowell |
| 8 | 18 | PPES 4017-65 | PPNO Pep75 | Capscrew,Liner Retainer Socket Head |
| 9 | 3 | PPES 8476-3 | PPNO Pp6021260Sw | Plate, Liner Wear |
| 10 | 6 | PPES 2988 | PPNO 1290344 | Gasket, Wear Plate And Module |
| 11 | 3 | PPES 6476 | PPNO 12Plasw | Flange, Liner Retainer (Liner Bushing) |
| 12 | 3 | PPES 6576 | PPNO 12Plansw | Nut, Liner Retainer |
| 13 | 72 | PPES 4015-54 | PPNO 12Ptrssw | Stud, Threaded Ring |
| 14 | 72 | PPNO 12P160Trsn | Nut, Threaded Ring Stud | |
| 15 | 6 | PPES 4676-2A | PPNO 12Pvcsw | Plug, Valve Cover (Includes Items 15,19,20,& 21) |
| 16 | 6 | PPES 4476 | PPNO 12Pflgsw | Ring, Threaded (Threaded Flange) |
| 17 | 6 | PPES 4597 | PPNO 12Pcapsw | Cap, Threaded (Screw Gland) |
| 18 | 6 | PPES P-107 | PPNO 07207107 | Seal, Valve Cover Plug |
| 19 | 6 | PPES 4776R | PPNO 12Pvgswns | Guide, Valve (Includes Items 19,& 20) |
| 20 | 6 | PPES 4700-I | PPNO Pz789Vgi | Bushing, Valve Guide |
| 21 | 12 | PPES 4016-98 | PPNO Pep73 | Screw, Valve Guide |
| 22 | 24 | PPES 4018-19 | PPNO 700048511 | Capscrew, Suction Manifold |
| 23 | 3 | PPES AJO-419R | PPNO 1540851 | Gasket, Suction Manifold |
| 24 | 2 | PPES 8376-2 | PPNO Nat12Pdsma | Adapter, Discharge |
| 25 | 4 | PPES 2976-2 | PPNO 2410031437 | Seal, Discharge Adapter |
| 26 | 2 | PPES 8376-1 | PPNO Nat12Pdsmc | Connector, Discharge |
| 27 | 2 | PPES 2976-1 | PPNO 2410031433 | Seal, Discharge Connector To Discharge Adapter |
| 28 | 16 | PPES 4018-18 | PPNO 700030711 | Capscrew, Discharge Connector (W /Lockwasher) |
| 29 | 4 | PPES 8376-3 | PPNO 1292175 | Ring, Backup (Discharge Connector) |
| 30 | 16 | PPES 4018-39 | PPNO 7006685 | Capscrew, Socket Head |
| 3 | PPNO 07924540 | skets, Two Discharge Connecting Gaskets, Wear Plate Gasket) | ||
| 80718055 | Suction modules |
| 80718056 | Discharge module |
| 1295174 | Plug valve cover |
| 80503012 | Lock ring |
| 80503014 | Lug adapter |
| 80503016 | Retainer plate |
| 80503017 | Snap ring |
| 80503015C | Stop locator |
| 80503013C | Lug ring assy |
| 6511416 | Dowell pin for manifold |
| 2408048 | Stud with nut |
| 2408049 | Stud with nut |
