Mud Pump Pistons

Product Number: KW-MPP-03 Piston is the Main Parts of Fluid End, KINGWELL have Bonded/replaceable urethane piston, replaceable rubber piston.

We're here to help:
Easy ways to get the answers you need.

+86-029-88601839
+86-029-88601839
kingwell@kingwelloilfield.com

KINGWELL Mud Pump Pistons Features & Benefits:

1. KINGWELL Piston and piston rod are made of high hardness alloy steel. Piston rubber can be made of Nitrile Rubber, Hydrogenated Nitrile Butadiene Rubber (HNBR) to accommodate for all types of drilling conditions, mud properties.

2. Wear-resistant, anti-corrosive, anti-distortion and temperatures reaching up to 350°F.

3. KINGWELL pistons are interchangeable to OEM’s such as BOMCO, RG, HH, National, Emsco, Gardner Denver, Ideco and Oilwell

4. Three type: Bonded urethane piston, replaceable urethane piston, replaceable rubber piston

Bomco/RG
F-500	F-800	F-1000	F-1300	F-1600
F-1600HL	F-1600L	F-2200HL	F-2200HL
Russian
8T-650	UNBT-600	UNBT-950	UNBT-1180L	UNBT-950A
UBT-400	BT-600	UB-590	UNB-600
8T310		8T650-01
National
7-P-50	8-P-80	9-P-100	10-P-130	12-P-160
14-P-200	14-P-220	N-1000/1300
EMSCO
F-350	F-500	F-650	F-800	F-1000
FB-1300	FB-1600
Gardner Denver
PAH	TEE	PZ-7	PZ-8	PZ-9
PZ-10	PZ-11
IDECO
T-500	T-800	T-1000	T-13000	T-1600
Oilwell
A-350	A-560	A-600	A-850	A-1100
A-1400	A-1700
Others
350-D	350-DG	500-DC	700-HDL	1000-HDL
MAS1000

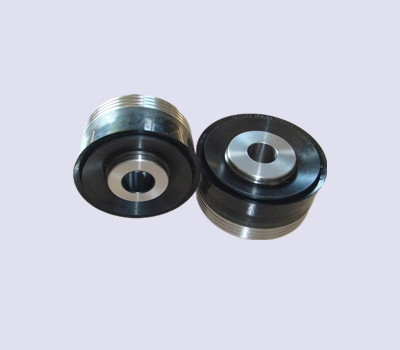

Double-action pistom

double-action piston,which is proof against heat, oil, water and is fit for working under high pressure and long stroke condition
---------------------------------------------------------------

Mud Pump Parts-Mud Pump Pistion

API mud pump accessories piston

Tips:

KINGWELL produces a series of API7K-compliant mud pumps ranging from F-500 to F-2200. F-2200 is a tri-cylinder, single-action, heavy-duty, high-pressure drilling pump with a maximum power of 2,200HP, maximum working pressure of 52MPa, and maximum displacement of 77.65L/s.

F-1300, F-1600, F-1300L and F-1600 mud pumps have a Max Pump pressure of 34.5MPa (5000Psi) and a displacement of 46.5L/S with a liner of Φ180mm. These two models are the first choice for medium and deep drilling rig as an assorted component.

F-1600,F-2200 mud pumps with high-power and high-pressure are developed to meet drilling requirements of offshore deep-water, terrestrial and horizontal wells, especially in desert areas.

Our premium pistons are fully interchangeable with other API standard designed pistons and deliver maximum performance in almost all drilling conditions. High tensile strength, resistance to chemicals, hydrocarbons, and abrasion, long Service, and full interchangeability with other API designed pistons make our premium piston a sound value.

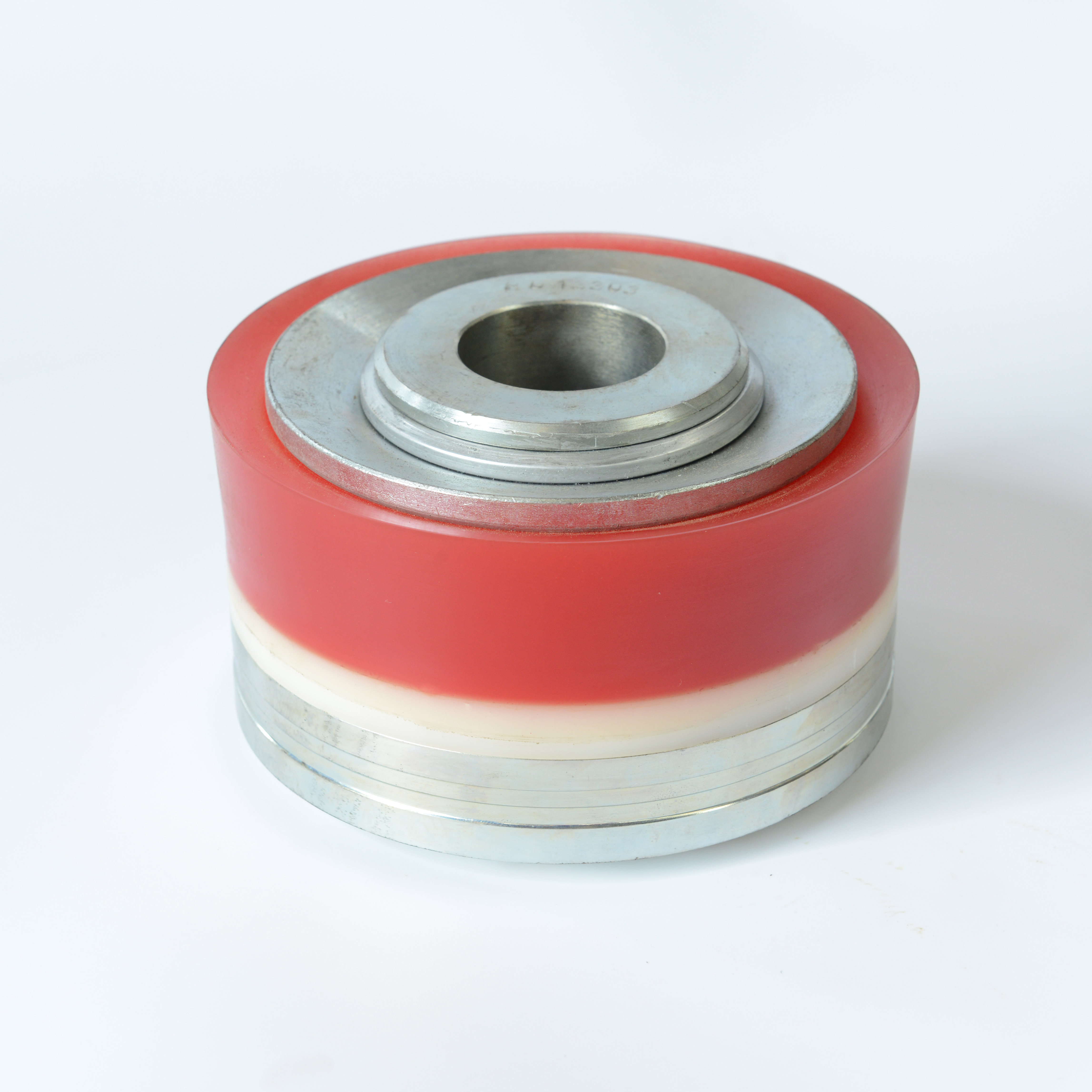

Bonded Rubber Pistons Premium Bonded Urethane Pistons

This one piece bonded constructed piston has no joints to leak. Eliminates abrasive fluids between piston and liner. The fluid expanded lip is not damaged by high pressure and fast pump strokes. This Fail-Safe piston seals off to greater diameter as liner wears

Currently running in pumps using exotic muds and highest drilling pressures! Bonded construction - no joints, no leakage. Longer piston and liner life. This piston will run in higher-pressure, fast stroking pumps, and is resistant to oil base muds and other additives currently being used. This Premium Piston has been in service for years, providing unmatched performance under extreme drilling conditions. This one piece bonded unit provides the same series of advantages., being imprevious to oil and other chemicals

Size of Piston & Parts

	3"	3-1/2"	4"	4-1/2"	5"	5-1/2"	6"	6-1/4"	6-1/2"	6-3/4"	7"	7-1/4"
Duplex	K	K	K	K	B	B	B	L	L	L	L	L
Triplex	K	K	K	K	B	B	B	L	L	L	L	L

3-1/2"

4-1/2"

5-1/2"

6-1/4"

6-1/2"

6-3/4"

7-1/4"

Duplex

Triplex

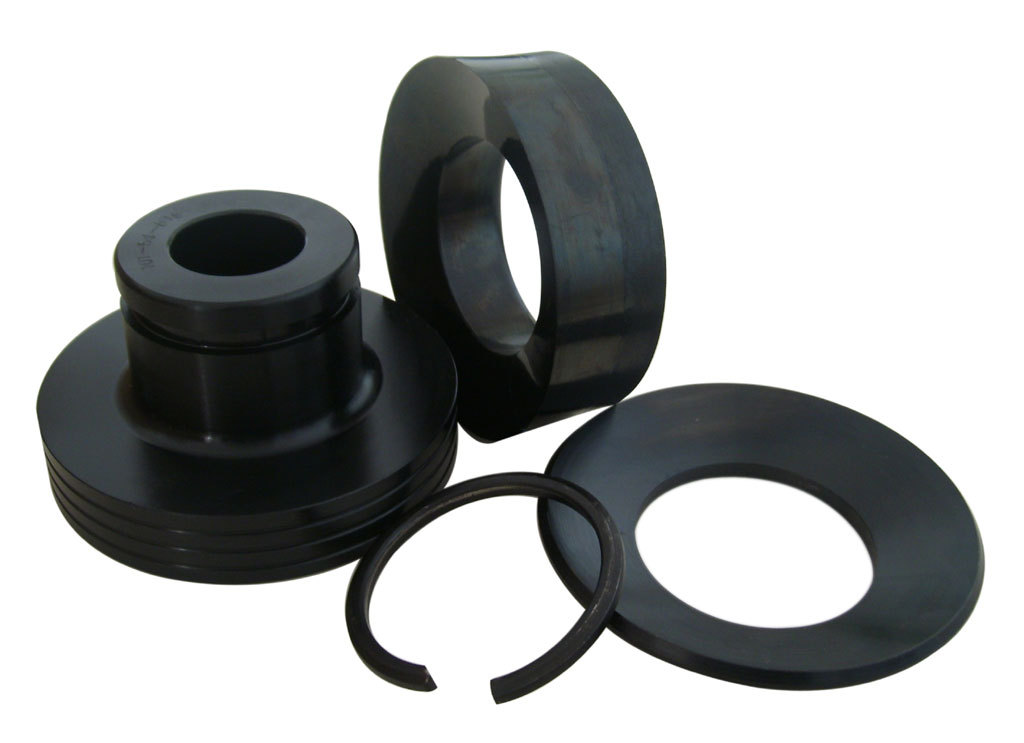

We also offers a full line of piston replacements including Piston Hubs, Plates, Snap rings and Replacement Rubbers.

The hub is formed from high grade steel.

The piston rubber is made from specially formulated compounds which are resistant to the effects of heat, oil and water. The multi-ply fabric reinforced backings used in the production of the piston rubbers provide positive, wear resistant seals.

----------------------
Specifications:

1.Mud Pump Piston assy.
2.working life 1500 hours.
3.API standard.
4.In stock.

Description:

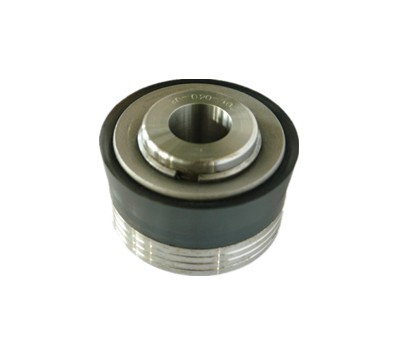

The piston rubber is vulcanized on the piston directly, without plate pinch and snap spring, widely used in all kinds of mud, especially used in high pressure jet drilling and ceramic liner. It can be exchanged with the pistons with replacement rubbers.

A.White Lightning Bonded piston is manufactured from a highly engineered elastomeric compound that provides superior resistance to tear abrasion and extrusion and is capable of operating in fluid temperatures up to 220F (104C). The bonded construction increase run times even at pressures up to 5000 psi.

B.Green piston is a bonded piston that is highly resistant to abrasion and tear. The bonded construction resists extrusion under pressure and restricts movement to reduce the build-up of heat. This bonded piston can be operated in pressures up to 6300 psi.

C.Yellow slip seal piston is capable of operating in fluid temperatures of up to 220F while maintaining superior resistance to tear and extrusion. It has reliable performance, quality and high temperature resistance The yellow slip seal piston increase run times at pressures up to 7500 psi.

D. The black supreme piston’s replaceable seal element is manufactured from a specially formulated elastomeric compound that reduce the extrusion of the rubber even at the pump’s maximum pressure rating. The piston body is manufactured from a high strength alloy steel forging and heat treated for durability. The piston can be widely used in all kinds drilling conditions. The black supreme piston increase run times at pressures from 1500 up to 7500 psi.

E. Blue Lightning piston delivers excellent resistance to tear, abrasion and extrusion, and can operate in extremely bad oil drilling operation environment Blue Lightning piston has long service life, increase run times at pressures from 1500 up to 7500 psi.
