High Pressure Unit (HPU)
19/04/2016

Application and Function
Application: To prevent the blow out of pressurized oil and gas fields safety installations like BOP’s are installed and need to be operated by means of hydraulic pressure.
Function: Pressure generation and pressure control for the hydraulic operation of the well head and further safety installations.
Advantages: ATEX Approved Design (Zone 1), Filter mesh according to NAS6, Filter are designed for redundant operation.


Product Features
-Electrical Control installed in pressure-capsulated switch cabinet.

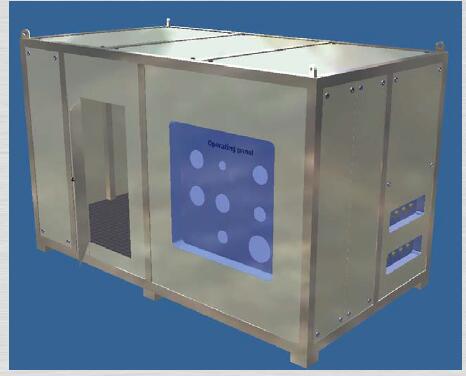

-Stainless Steel Container for Sea Water environment incl. Heating and lighting for explosive area
- Logical Panel Design
- Operating interface with Opus 7 and remote control
- Circulation pump for NAS6
- 200L/400 bar Pressure accumulator
- Low and High Pressure Circuit (100bar/400bar)
- Block & Bleed Valves for easy maintenance and calibration for pressure gauges and pressure transmitters

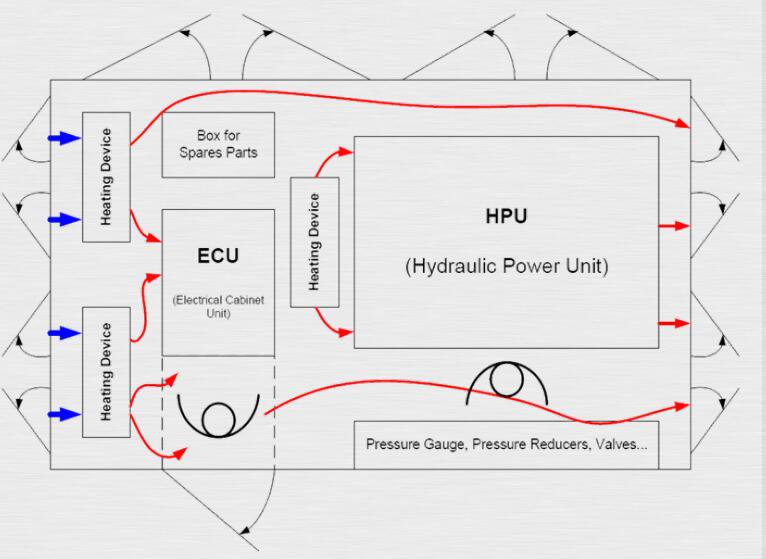

General Arrangement
