Christmas Tree

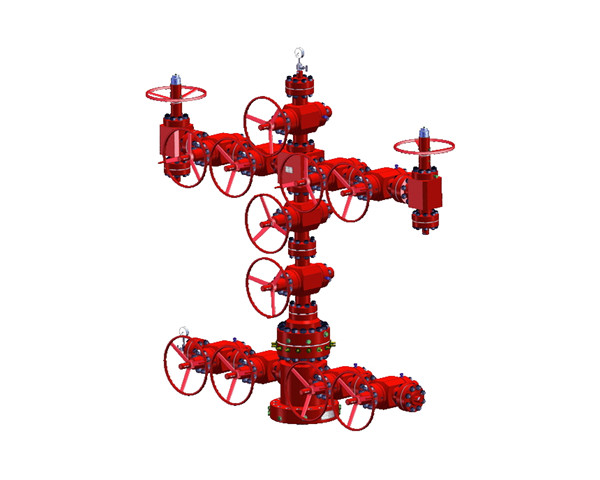

Product Number: KW-WH-01 KINGWELL Christmas Tree strictly meets API 6A standard and it is used to control and adjust the oilwell production.

We're here to help:
Easy ways to get the answers you need.

+86-029-88601839
+86-029-88601839
kingwell@kingwelloilfield.com

KINGWELL Christmas Tree Features & Benefits:

Christmas Tree is used in the flowing well and the mechanical recovery well to exploit oil. It can control and adjust the oilwell production, ensure the operation.

Features:

Control the pressure in wellhead and adjust the flowrate of oil/gas well in oil/gas production operation.
Strictly meet API 6A, NACE MR-0175 standard.
Can be equipped with (pneumatic) hydraulic safety valve.
Structure can be single-wing and the dual-wing.
Two designs of general or integral structure.
Choke valve can be fixed or adjustable.

KINGWELLChristmas Tree Techincal Data:

Working pressure: 2000PSI～20000PSI
Working medium: oil, natural gas, mud ,including H2S,CO2
Working temperature: -46°C～121°C（Class LU）
Material class: AA、BB、CC、DD、EE、FF
Specification level: PSL 1-4
Performance level: PR 1-2

Wellhead Control Panel

Wellhead control panel is key equipment in oil & gas industry to protect oilfield facilities and environment from occurring wellhead fire and emergency incidents, which is one of main control systems to ensure oilfield oil production and transportation to be safely operation according to international standards and national regulation.

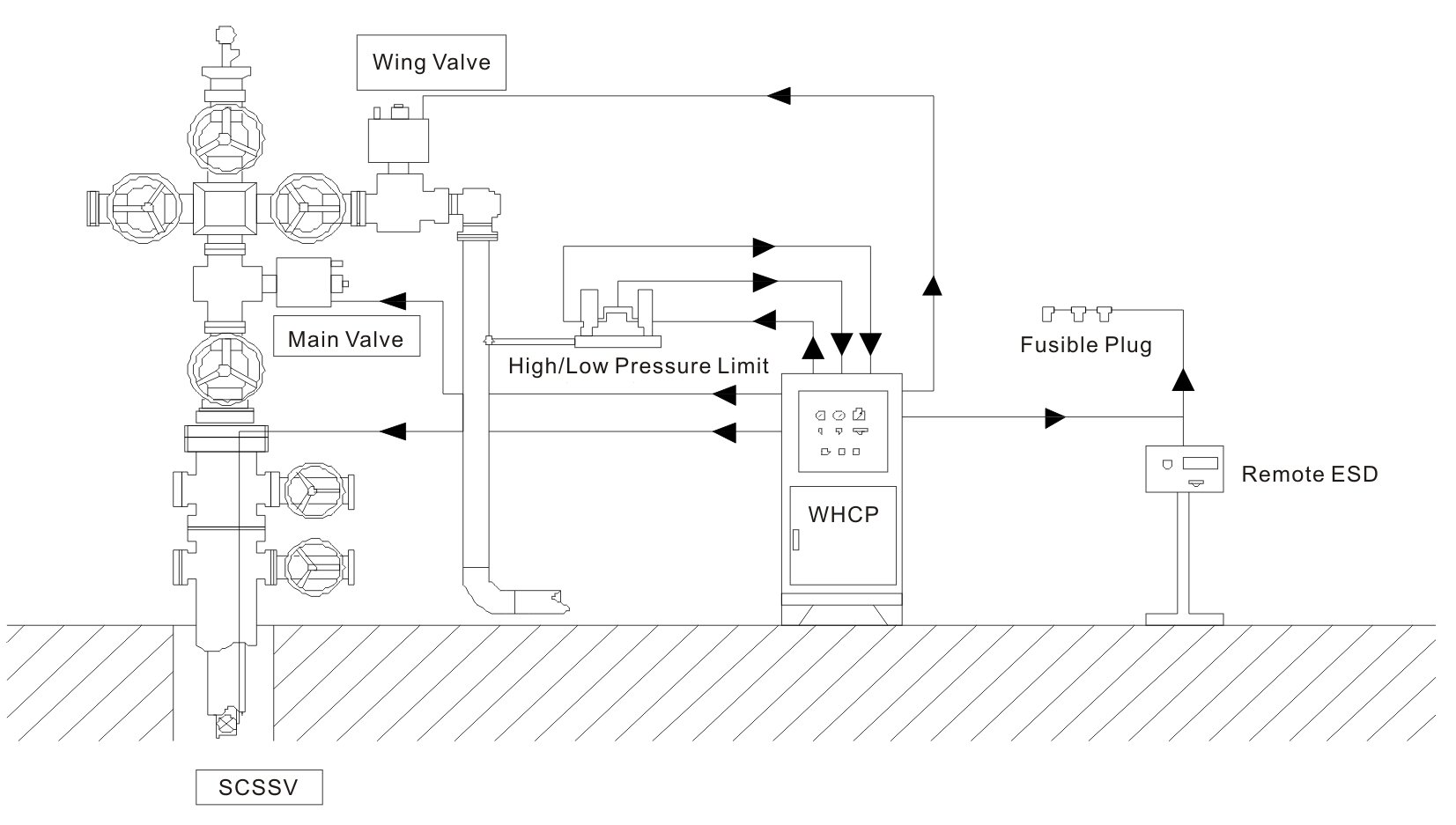

Wellhead control panel is composed of hydraulic power unit, tubing & fitting and instrument valve and electrical control devices. HPU supply hydraulic resource to open and close SSVs including MSSV, WSSV and SCSSV.

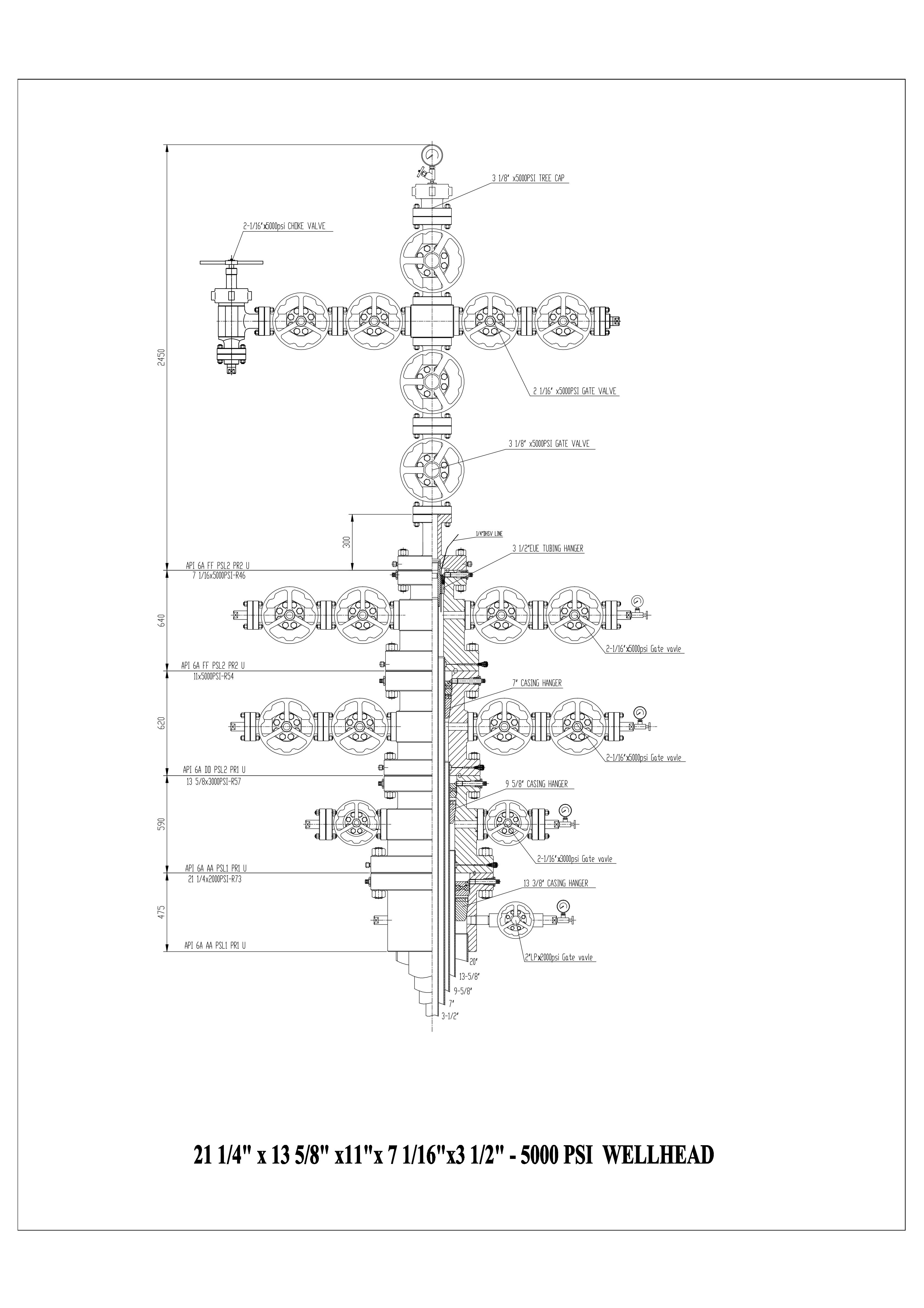

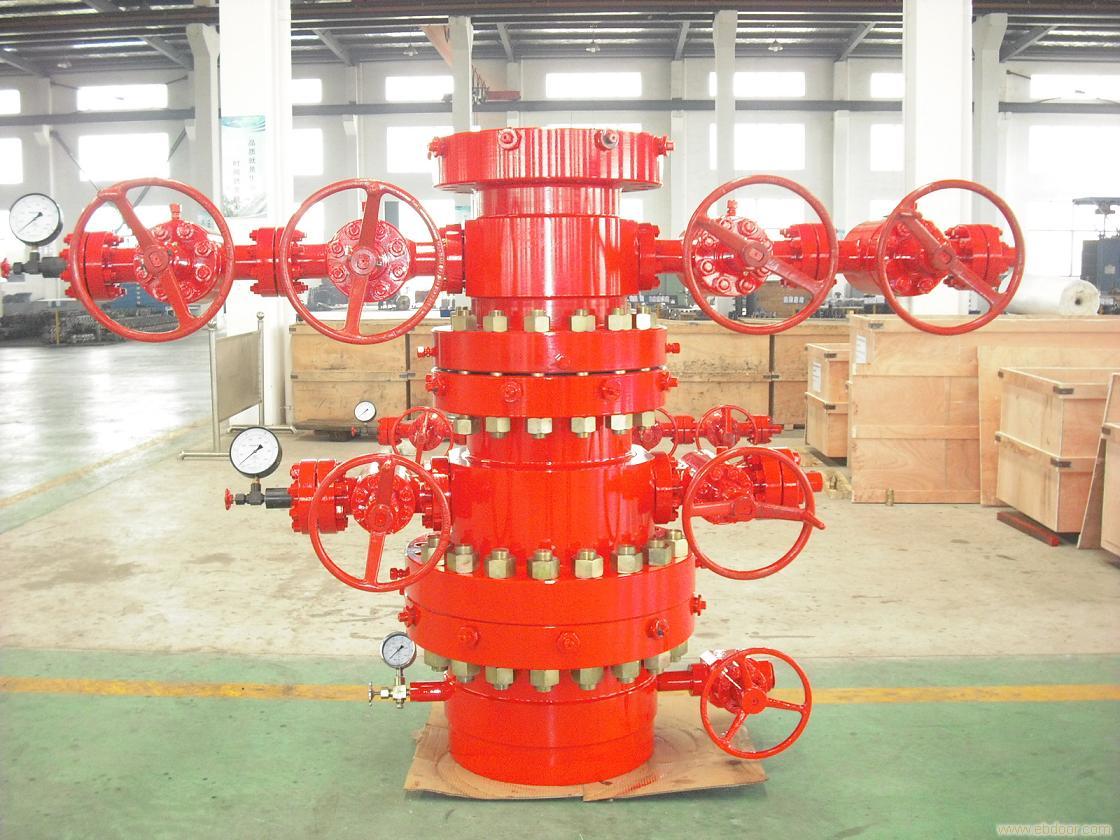

1.casing spool 20 3/4"x3000psi w.p flanged bottom R-74 x13 5/8"x5000psi w.p flanged top BX-160 with two 21/16"API 5000psi w.p studded
side outlets.

slip and seal casing hanger manual 13 5/8"x9 5/8"

secondary seal 13 5/8"x9 5/8"

gate valve 2 1/16"x5000psi w.p flanged ends.full bore through conduit non rising stem metal to mental seal between gate and seat and between
seats and body,hand wheel operated.

2 1/16"cmpanion flange x2"L.p5000psi w.p

bull plug 2"L.p x blind 5000PSI W.P

bull plug 2"L.p x1/2" N.P.T female 5000PSI W.P

needle valve 1/2"NPT male x female 5000psi w.p angle type.

pressure gauge(0-5000) psi 1/2"NPT male 4 1/2"O.D ST/STL case

ring gasket RX-24 cadmium plated

ring gasket BX-160 cadmium plated

Set of 8 studs with two nuts 7/8"x6"ASTM A193 GR-B7M studs and ASTM A194 GR-2HM nuts cadmium or zinc plated

Set of 16 studs with two nuts1 5/8"x12.5"ASTM A193 GR-B7M studs and ASTM A194 GR-2HM nuts cadmium or zinc plated

casing head 20 3/4" x3000psi w.p flanged top type R-74x 20" slip-on welded bottom with two 2"L.p threaded side outlets.

slip and seal casing hanger manual 20 3/4"x13 3/8"

secondary seal casing 20 3/4"x13 3/8"

bull plug 2"L.p x1/2"NPTtapped end 3000PSI W.P

nipple 2"L.p x6"approx.long 3000PSI .W.P

gate valve 2 1/16"x3000psi w.p L.p screwed ends.full bore through conduit non rising stem metal to mental seal between gate and seat and
between seats and body,hand wheel operated.

needle valve 1/2"NPT male x female 3000psi w.p angle type.

pressure gauge(0-3000) w.p 1/2"NPT male 4 1/2"O.D face ST/STL case

ring gasket API R-74 cadmium plated,

set of 20 studs with two nuts 2"x14.5"ASTM A193 GR-B7M studs and ASTM A194 GR-2HM nuts cadmium or zinc plated
