KINGWELL Mud Pump Features & Benefits:

KINGWELL can supply F Series, 3NB series Triplex Single Acting Mud pump. KWF series is main part.

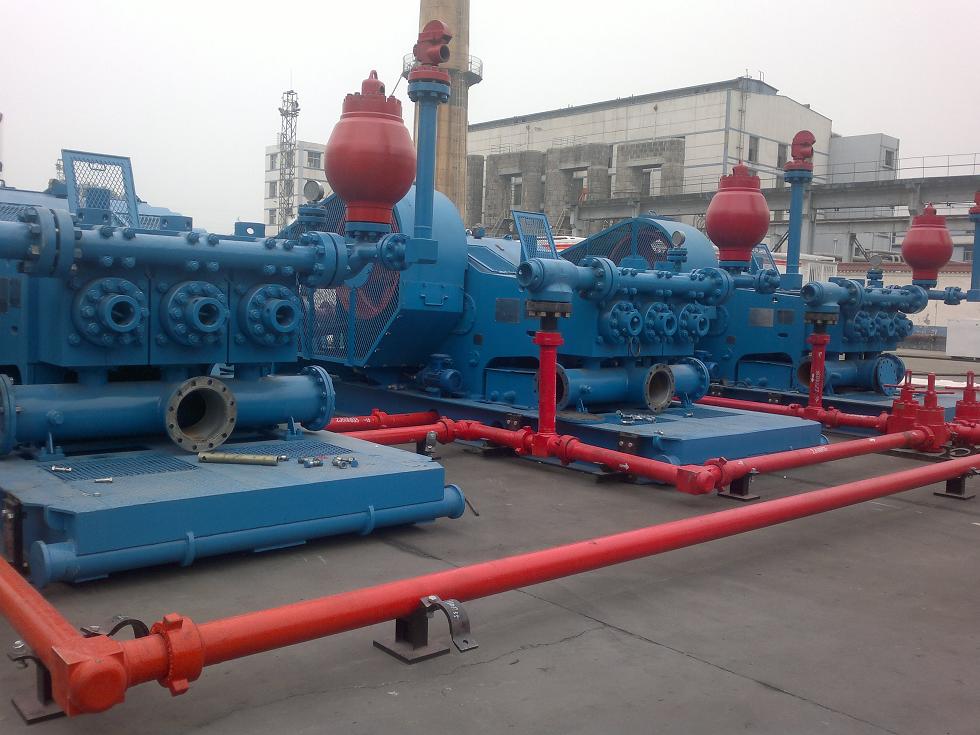

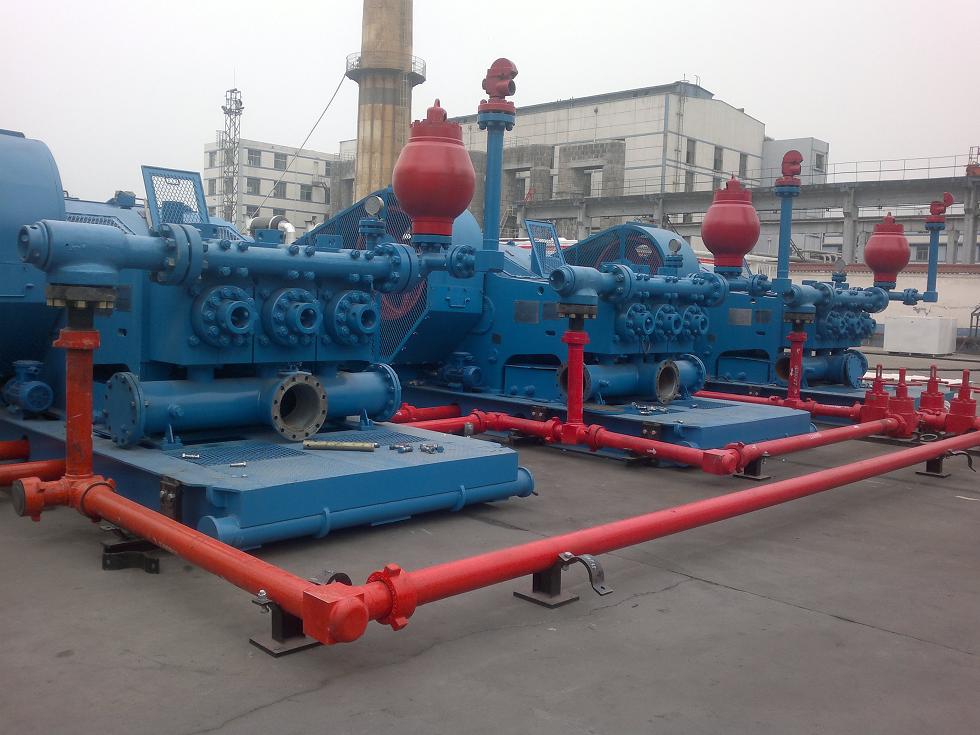

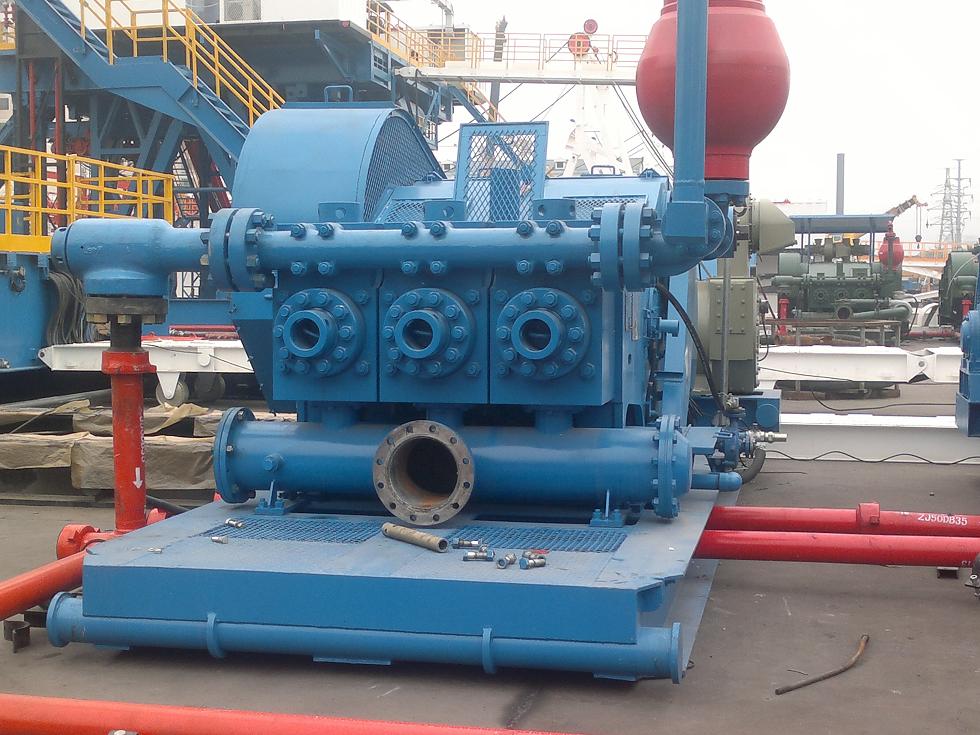

KW F series Triplex Mud Pump

Technical features:
1.          The volume and weight are strictly controlled, good and reliable performance, which is widely used for offshore well drilling, workover, drilling in marshland and etc.
2.          longer stroke and it can be operated at a lower stroke, thus improved the water supplying performance effectively and  effectively and extended the lifetime of expendable parts in the fluid end greatly
3.          Its weight is 22% off than conventional Pump, much more portable
4.         Stable operation for assembled crank of forge and cast pieces
5.         Crosshead surface coated with Babbitt alloy improves reliability
6.         All pressure parts of fluid end use forgings parts

KINGWELL F series Triplex Mud Pump Technical Data:


Model	KWF-500	KWF-800	KWF-1000	KWF-1300	KWF-1600
Type	Triplex single acting
Rated Power	373kw	596kw	735kw	969kw	1193kw
	500HP	800HP	1000HP	1300HP	1600HP
Rated Speed	165 SPM	150 SPM	140 SPM	120 SPM	120 SPM
Stroke(mm/inch)	190/7 1/2″	228.6/9″	254/10″	305/12″	305/12″
Max. Liner Dia.	170/6 3/4″	170/6 3/4″	170/6 3/4″	180/7″	180/7″
Gear Type	Herringbone
Valve Pot	API-5	API-6	API-6	API-7	API-7
Gear Ratio	4.286:1	4.185:1	4.207:1	4.206:1	4.206:1
Suction Inlet	203/8″	254/10″	305/12″	305/12″	305/12″
Discharge Inlet	4″Flange	5″Flange	5″Flange	5″Flange	5″Flange
	5000 psi	5000 psi	5000 psi	5000 psi	5000 psi
Lubrication	Forced&	Forced&	Forced&	Forced&	Forced&
	Splash	Splash	Splash	Splash	Splash
Max. Pressure	27.2Mpa	34.5Mpa	34.5Mpa	34.5Mpa	35Mpa
	3945 psi	5000 psi	5000 psi	5000 psi	5080 psi
Overall Size(in)	144*106*86	156*79*66	163*89*70	174*121*78	181*129*106
Weight(kg)	9770	14500	18790	24572	24791


KW 3NB Triplex Mud Pump

Technical features:
1.        Widely used in oilfields and other industrial mining enterprises for well drilling and well repairing etc.
2.        Increased the stroke length and displacements appropriately, lowered the stroke reasonably, thus improved the service life of expendable parts.
3.        Strictly manufactured and inspected according to SY5138 standard and API 7-1 Spec.

KINGWELL 3NB Triplex Mud Pump Technical Data:


Model	3NB800	3NB1000	3NB1300	3NB500C	3NB1000C	3NB1300C	3NB1600
Power KW(HP)	588(800)	735(1000)	956(1300)	368(500)	735(1000)	956(1300)	1176(1600)
Strokes per minutes (pm)	160	150	140	95	110	120	120
Stroke (mm)	216	235	245	254	305	305	305
Gear ratio	2.51	2.658	2.868	3.82	3.833	3.81	3.81
Max. working pressure	33	35	35	30	35	35	35
Max. dia of liner(mm)	160	170	171.5	160	170	180	190
Dia. Of suction pipe (mm)	257	254	257	254	305	305	305
Dia. Of discharge pipe (mm)	100	100	100	100	100	100	100
