Products > Solid Control
Mud Agitator
Product Number: KW-SC-09
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Mud Agitator Features & Benefits:

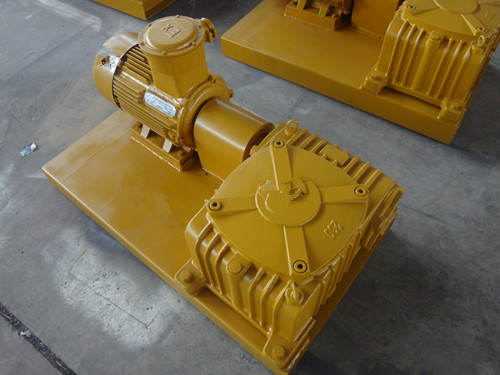

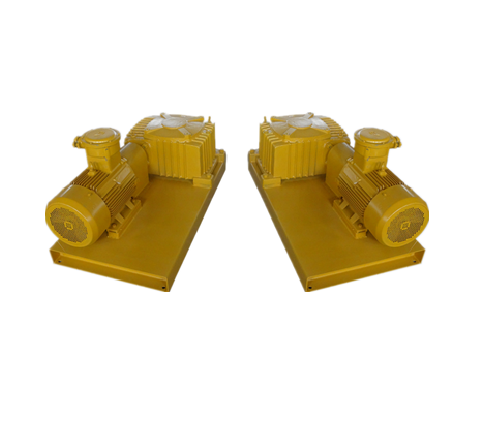

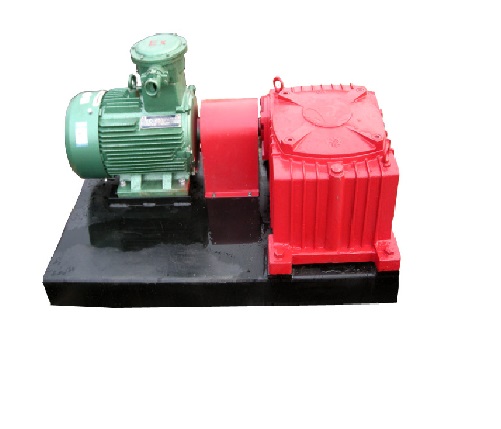

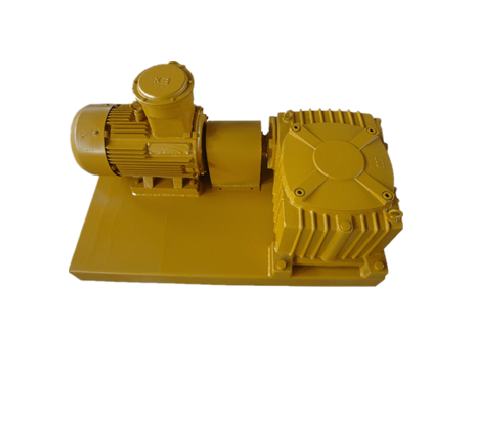

Mud Agitator is widely used in the mud solids control system. It is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solid particles from settling in circulating tank. A mechanical agitator is driven by an explosion-proof motor, coupled to a gear box that drives the impeller shaft. The impellers (turbines) transform mechanical power into fluid circulation or agitation. The objective is to obtain a uniform suspension of all solids.
KINGWELL Mud Agitator Technical Data:
Mud Agitator is widely used in the mud solids control system. It is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solid particles from settling in circulating tank. A mechanical agitator is driven by an explosion-proof motor, coupled to a gear box that drives the impeller shaft. The impellers (turbines) transform mechanical power into fluid circulation or agitation. The objective is to obtain a uniform suspension of all solids.
KINGWELL Mud Agitator Technical Data:
| Model | Motor (Kw) | Speed (RPM) | Impeller Size (mm) | Impeller Qty (pcs) | Ratio | Weight (Kg) | Dimension(mm) |
| KWJBQ030D | 3 |
60/72 (50HZ/60HZ) |
650 | 1 | 25:1 | 154 | 717×560×471 |
| KWJBQ055D | 5.5 | 850 | 1 | 280 | 892×700×597 | ||
| KWJBQ075D | 7.5 | 950 | 1 | 287 | 980×750×608 | ||
| KWJBQ075DD | 800 | 2 | 297 | ||||
| KWJBQ110D | 11 | 1050 | 1 | 402 | 1128×840×655 | ||
| KWJBQ110DD | 850 | 2 | 419 | ||||
| KWJBQ150D |
15 |
1100 | 1 | 423 | 1158×840×655 | ||
| KWJBQ150DD | 950 | 2 | 441 | ||||
| KWJBQ185DD | 18.5 | 1050 | 2 | 746 | 1270×1000×727 | ||
| KWJBQ220DD | 22 | 1100 | 2 | 820 | 1270×1000×727 | ||
| Remarks | Shaft and impeller will be provided by KINGWELL, but not including in the weight & dimension. | ||||||
