Products > Rig Parts
Crown Block
Product Number: KW-RP-01 A crown block is the stationary section of a block and tackle that contains a set of pulleys or sheaves
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Crown Block Features & Benefits:

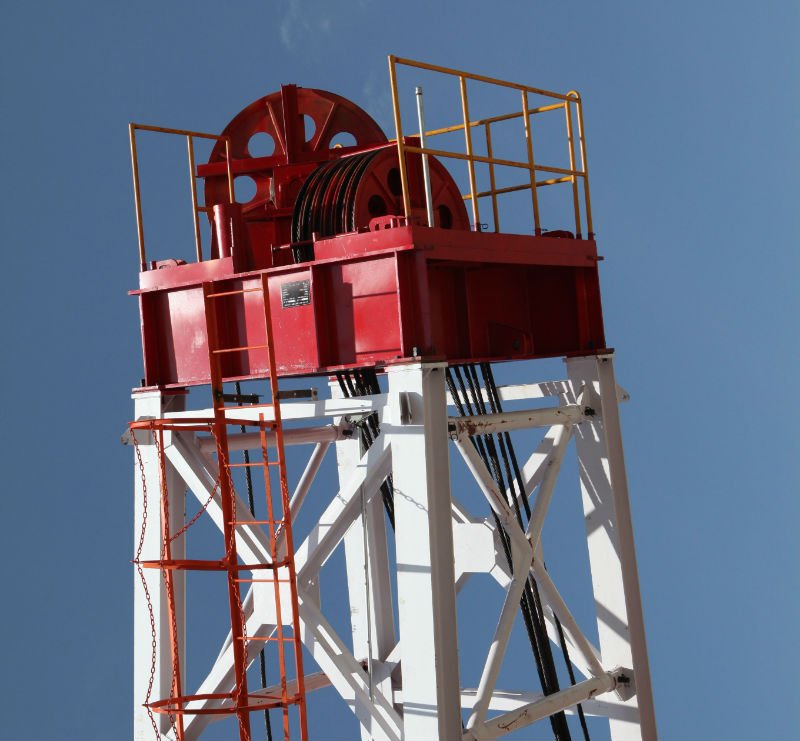

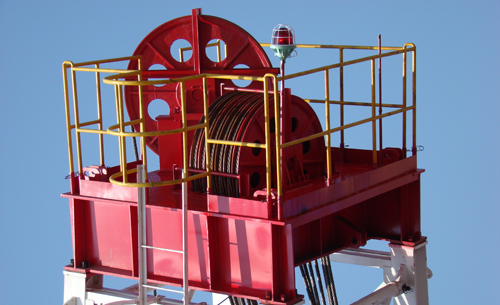

A crown block is the stationary section of a block and tackle that contains a set of pulleys or sheaves through which the drill line(wire rope) is threaded or reeved and is opposite and above the traveling block.
The combination of the traveling block, crown block and wire rope drill line gives the ability to lift weights in the hundreds of thousands of pounds. On larger drilling rigs, when raising and lowering the derrick, line tensions over a million pounds are not unusual.
Features:
The sheave groove is quenching-treated, anti-abrasion and long of service life
Equipped with wire line ward device, prevent the wire line bounce or fall off
Equipped with bumping wood and protective net
Equipped with gin pole for block serving
Equipped with sand block and auxiliary block
The sheaves of crown block and mated traveling block are fully interchangeable
Crown block conforms to API 4F & API 8C mandates
KINGWELL Crown Block Technical Data:
| Type | TC90 | TC170 | TC225 | TC315 | TC450 | TC585 | TC675 | TC675H | TC900 |
| Max. load, KN | 900 | 1700 | 2250 | 3150 | 4500 | 5850 | 6750 | 6750 | 9000 |
| Wire rope dia. mm | 26 | 29 | 32 | 35 | 38 | 38 | 45 | 38 | 48 |
| Number of sheaves, piece | 5 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 |
|
Size L×W×H (mm) |
2317 x2073 x1577 |
2668 x2450 x1855 |
2668 x2709 x2469 |
3192 x2783 x2350 |
3410 x2753 x2420 |
3625 x2832 x2580 |
4650 x3340 x2702 |
5180 x3220 x2904 |
4217 x3606 x3146 |
| Weight, kg | 2668 | 4540 | 6500 | 8500 | 11105 | 12100 | 13750 | 18780 | 18000 |
