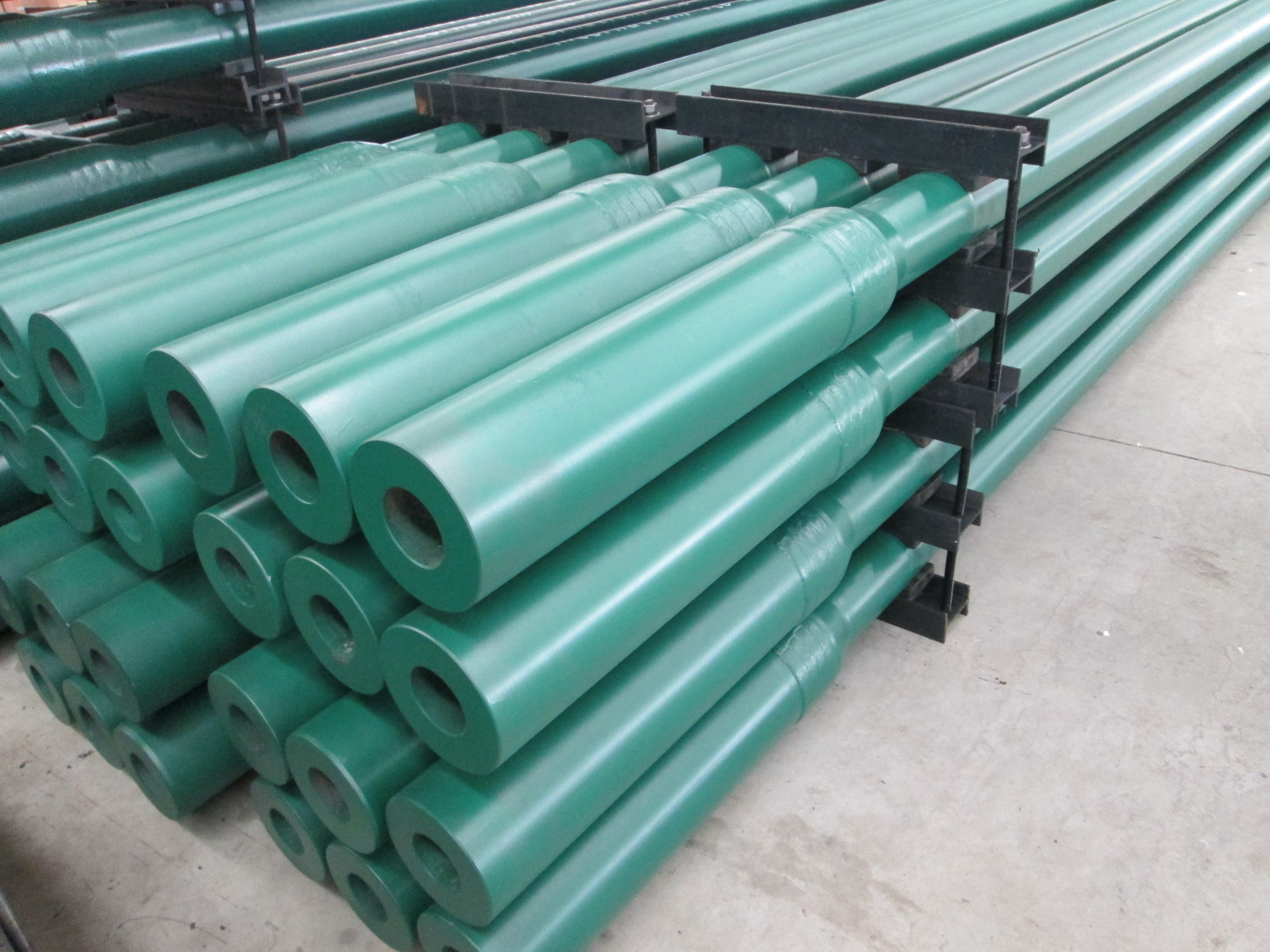

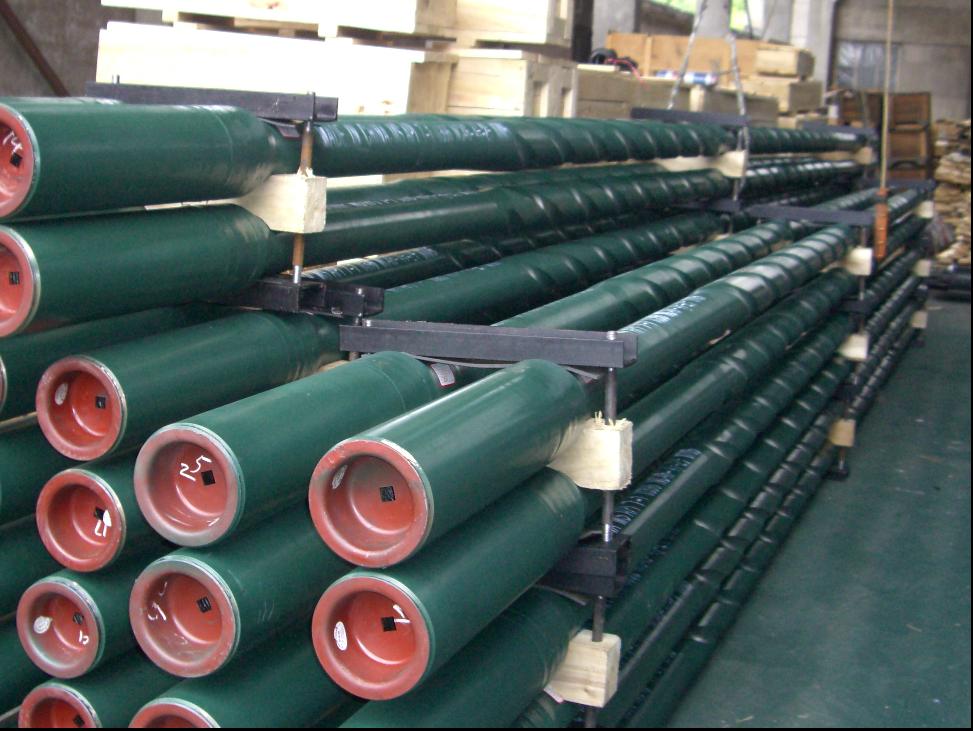

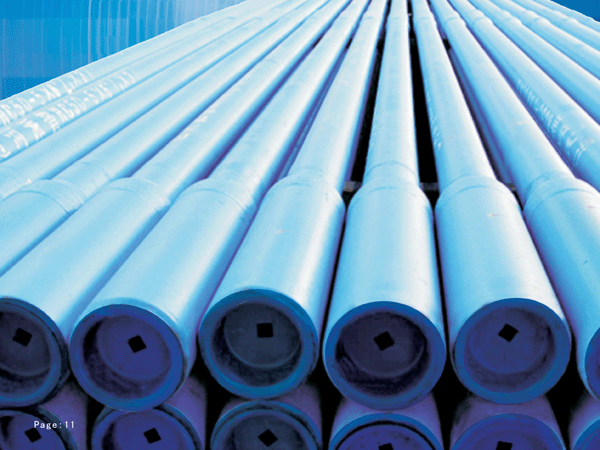

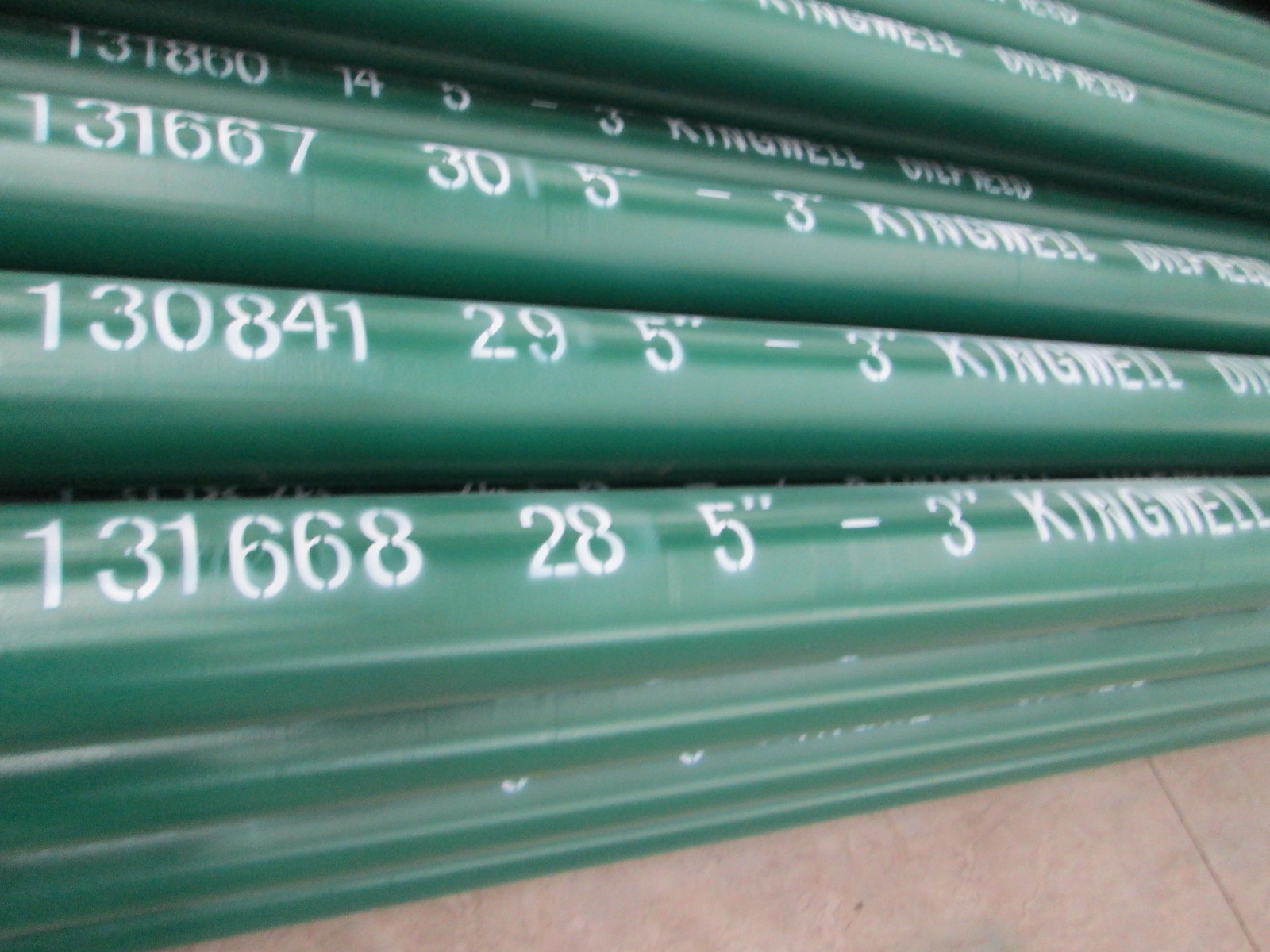

Heavy Weight Drill Pipe
Product Number: KW-DE-04 The heavy Weight Drill Pipe (HWDP) was developed to provide a gradual transition from the drill collars to the drill pipe
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Heavy Weight Drill Pipe Features & Benefits:
Size: 3 1/2", 4 1/2", 5", 5 1/2", 6 5/8"
Material: 4145H, 4145H Mod, Non Magnetic
Type: Integral HWDP, Friction welde
Hardbanding: ANRCO 100 XT, 200XT, 300XT.
KINGWELL Heavy Weight Drill Pipe Technical Data:
KINGWELL supplies welded and integral heavy weight drill pipes (API 7-1); their sizes are from 3-1/2 to 6-5/8 inches.
Heavy weight drill pipe has a "center upset", also known as wear pad, that increases tube life by protecting the tube from wearing on the outer diameter by keeping the tube away from the hole wall. The walls of heavy weight drill pipe are thicker and have longer upsets compared to conventional drill pipe, as well as being stronger with high tensile strength. There are a variety of specifications of heavy weight drill pipe.
Size: 3 1/2", 4 1/2", 5", 5 1/2", 6 5/8"
Material: 4145H, 4145H Mod, Non Magnetic
Type: Integral HWDP, Friction welde
Hardbanding: ANRCO 100 XT, 200XT, 300XT.
KINGWELL Heavy Weight Drill Pipe Technical Data:
| Size |
Nominal mass Lb/ft |
Calculated weight Wpe | Grade | Wall thickness | Upset ends (See note) for weld-on tool joint | |||
| in. | mm | lb/ft | kg/m | in. | mm | |||
| 2 3/8 | 60.3 | 6.65 | 6.26 | 9.32 | E,X,G,S | 0.280 | 7.11 | EU |
| 2 7/8 | 73.0 | 10.4 | 9.72 | 14.48 | E,X,G,S | 0.362 | 9.19 | EU , IU |
| 3 1/2 | 88.9 | 9.50 | 8.81 | 13.12 | E | 0.254 | 6.45 | EU , IU |
| 3 1/2 | 88.9 | 13.30 | 12.31 | 18.34 | E,X,G,S | 0.368 | 9.35 | EU , IU |
| 3 1/2 | 88.9 | 15.50 | 14.63 | 21.79 | E | 0.449 | 11.40 | EU , IU |
| 3 1/2 | 88.9 | 15.50 | 14.63 | 21.79 | X,G,S | 0.449 | 11.40 | EU , IEU |
| 4 | 101.6 | 14.00 | 12.93 | 19.26 | E,X,G,S | 0.330 | 8.38 | EU , IU |
| 4 1/2 | 114.3 | 13.75 | 12.24 | 18.23 | E | 0.271 | 6.88 | EU , IU |
| 4 1/2 | 114.3 | 16.60 | 14.98 | 22.31 | E,X,G,S | 0.337 | 8.56 | EU , IEU |
| 4 1/2 | 114.3 | 20.00 | 18.69 | 27.84 | E,X,G,S | 0.430 | 10.92 | EU , IEU |
| 5 | 127.0 | 16.25 | 14.87 | 22.15 | X,G,S | 0.296 | 7.52 | IU |
| 5 | 127.0 | 19.50 | 17.93 | 26.71 | E | 0.362 | 9.19 | IEU |
| 5 | 127.0 | 19.50 | 17.93 | 26.71 | X,G,S | 0.362 | 9.19 | EU , IEU |
| 5 | 127.0 | 25.60 | 24.03 | 35.79 | E | 0.500 | 12.70 | IEU |
| 5 | 127.0 | 25.60 | 24.03 | 35.79 | X,G,S | 0.500 | 12.70 | EU , IEU |
| 5 1/2 | 139.7 | 21.90 | 19.81 | 29.51 | E,X,G,S | 0.361 | 9.17 | IEU |
| 5 1/2 | 139.7 | 24.70 | 22.54 | 33.57 | E,X,G,S | 0.415 | 10.54 | IEU |
