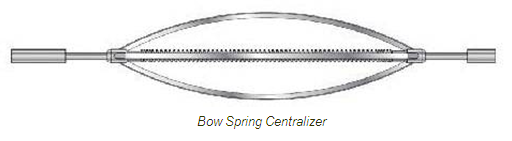

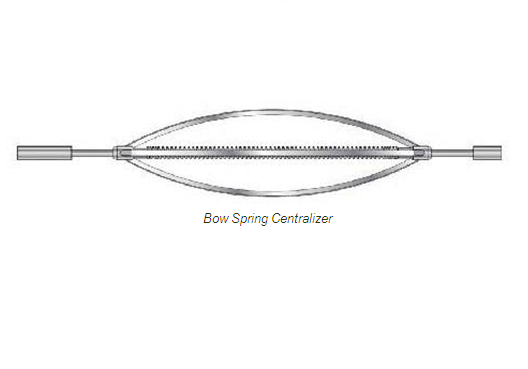

Bow Spring Centralizer

The Coiled Tubing Bow Spring Centralizer guides the coiled tubing or tool string directly in the center of the well bore. It overcomes the natural bend in the coiled tubing and prevents hang ups when approaching restrictions. It can be run in logging or wireline tool stings or with any other completion or production equipment.



Technical parameters:


Nominal O.D.	Spring O.D.	Overall Length
1.687”	13.5”	43.68”
2.000”	17.5”	56.50”
2.250”	17.8”	56.50”


Features:
Spring loaded bows set for optimum contact force with casing or tubing
Bore through centralizer for circulating flow Hardened bows for minimal wear
Wide variety of thread sizes Specifications
