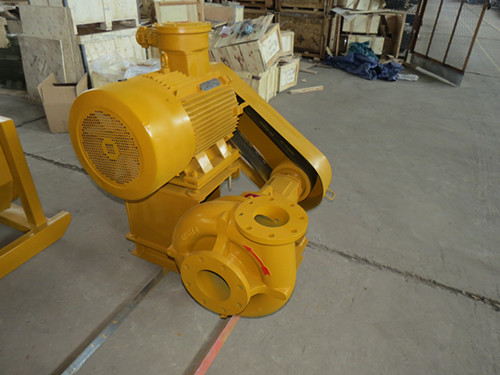

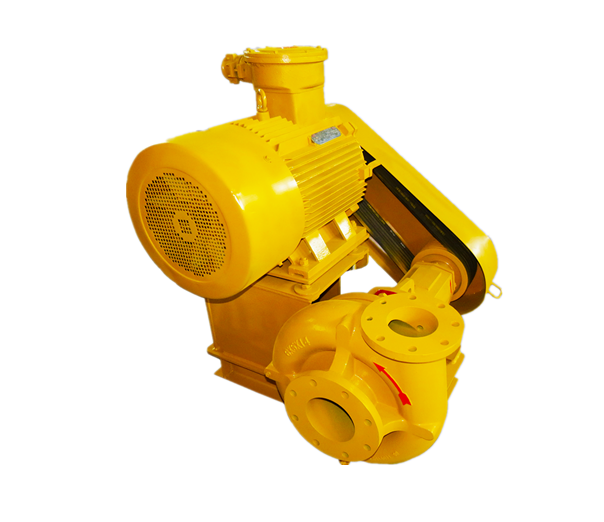

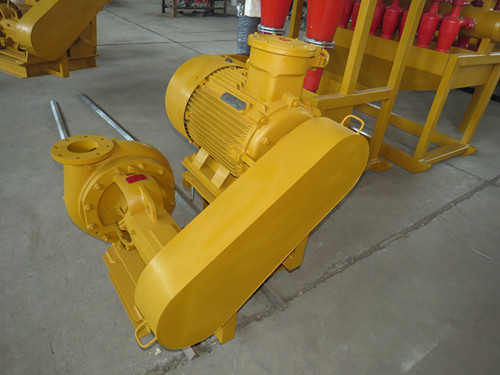

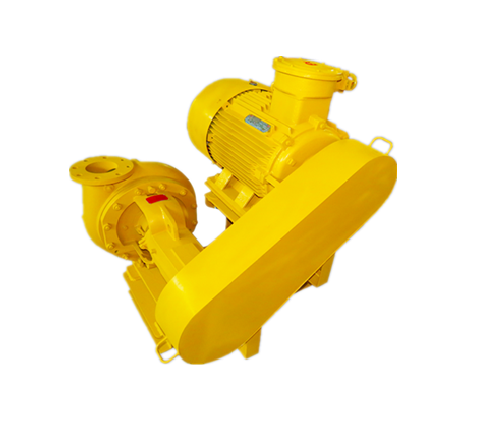

KINGWELL Shear Pump Features & Benefits:

Shear pump is used to effectively mix and hydrate material added into drilling fluid. With large capacity, high lift, and long reliable service life, the shear pump can speed up dilution and hydration of polymers to have high property mud, save the mud material, reduce the time of configuration, and provide the high performance mud for the well drilling.

 Features:

1. Greatly enhances the hydration of the soil particles.
2. Makes the compounds dilute, shear and hydrate in a shorter time while saving over 30% of betonies.
3. Offers larger capacity and lift to meet the demands on concoction and mud processing.

KINGWELL Shear Pump Technical Data:


Model	KWJQB6×5A-550
Flow	155m3/h(682GPM)
Lift	32 m
Motor Power	55Kw(75HP)
Speed(RPM)	2280
EX Standard	ExdIIBt4 / IEC EX/ ATEX
Weight	965Kg
Dimension	1327x970x870mm
