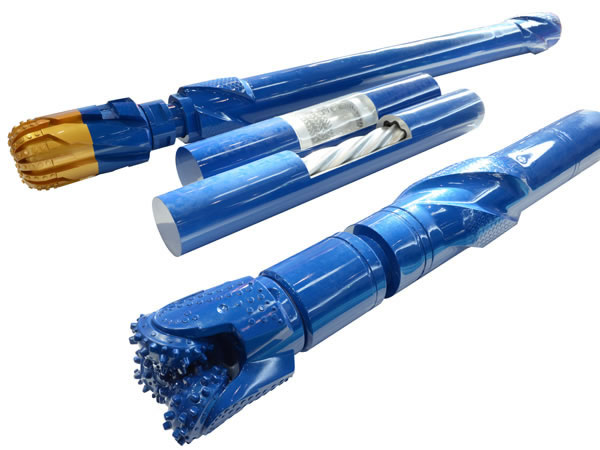

Downhole Motor
Product Number: KW-DE-01 Downhole Motor can be configured to answer specific downhole conditions or well designs
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Downhole Motor Features & Benefits:

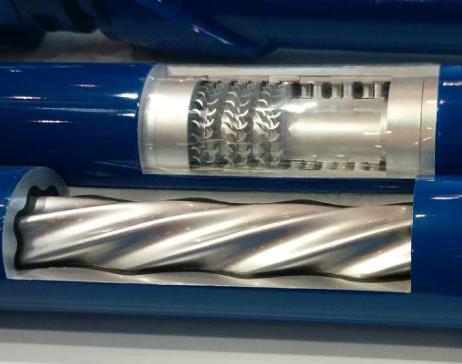

KINGWELL Downhole Motor is a powerful and reliable positive displacement motor. Using the latest available technology and materials, it can be configured to answer specific downhole conditions or well designs. The motor generates an optimum balance of rotational speed and high torque to drive a variety of drill bits at speeds that maximize tool life and performance.

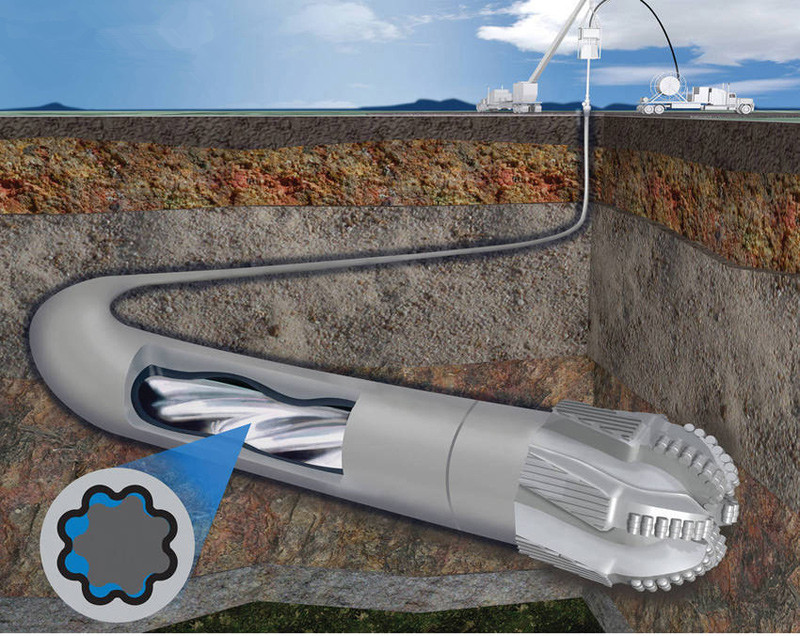

KINGWELL MOTORS are used in applications such as straight hole drilling, directional (steerable) drilling, horizontal drilling, hole opening, and re-entry(work over).

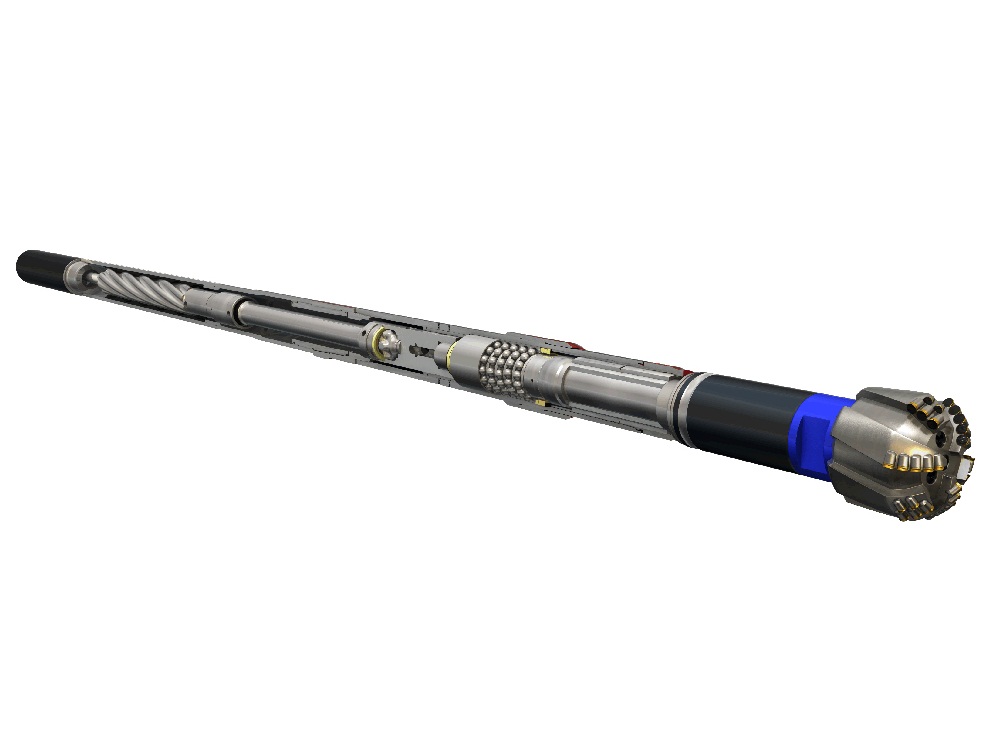

Technology advantages: adjustable bend housing; anti-break device on drive shaft; anti-drop device on rotor; non-magnetic material etc.
Outstanding technology & project: Many CAE technology are applied to the project, such as contact analysis, hydraudynamics analysis, static finite element analysis etc.
Quality and service system: ISO global quality system is the main quality management standard; API symbol utility supplies the complete control. Additionally, strong technological service team supplies the technical guide and help timely.
KINGWELL Downhole Motor Technical Data:|
Model |
Flow Rate (l/s) |
Pressure Drop (Mpa) |
Rating Torque (N`m) |
Max.Torque (N•m) |
Power (Kw) |
OD (mm) |
Length (m) |
Connections (API REG) |
||
| Box up | box down | |||||||||
| 5LZ43×7.0 | 0.5~1.5 | 108 | 173 | 3.68 | 43(11/16) | 3.3 | M27*2 | |||
| 5LZ60×7.0 | 1.26~3.13 | 2.5 | 160 | 280 | 2.35~6.03 | 60(23/8) | 3.3 | 1.9TBG | ||
| 5LZ73×7.0 | 1.26~5.05 | 3.5 | 275 | 480 | 3.5~13.82 | 73(27/8) | 3.45 | 23/8 TBG | 23/8 REG | |
| 5LZ89×7.0 | 2~7 | 4.1 | 560 | 980 | 5.6~19.35 | 89(31/2) | 4.67 | 23/8 REG | ||
| 5LZ95×7.0 | 4.73~11.04 | 3.2 | 950 | 1240 | 10.4~23.79 | 95(33/4) | 3.7 | 27/8 REG | ||
| C5LZ95×7.0 | 5~13.33 | 6.5 | 1490 | 2384 | 21.8~59.3 | 95(33/4) | 6.88 | 27/8 REG | ||
| 5LZ100×7.0 | 4.73~11 | 3.2 | 710 | 1240 | 10.4~23.79 | 100(37/8) | 4.35 | 27/8 REG | ||
| 5LZ120×7.0 | 5.78~15.8 | 2.5 | 1300 | 2275 | 9.5~27.23 | 120(43/4) | 4.88 | 31/2 REG | ||
| C5LZ120×7.0 | 6.667~20 | 5.2 | 2500 | 4000 | 70.5 | 120(43/4) | 6.88 | 31/2 REG | ||
| D5LZ120×7.0 | 5.78~15.8 | 1.6 | 900 | 1440 | 6.6~18.85 | 120(43/4) | 3.29 | 31/2 REG | ||
| 3LZ165×7.0 | 17~27 | 4.1 | 2500 | 3750 | 78.54 | 165(61/2) | 6.5 | 41/2 REG | ||
| 5LZ165×7.0 | 16~28(47) | 3.2 | 3200 | 5600 | 33.5~59.65 | 165(61/2) | 6.25 | 41/2 REG | ||
| D7LZ165×7.0 | 18~28 | 2.5 | 2300 | 3680 | 30.4~47.2 | 165(61/2) | 4.7 | 41/2 REG | ||
| 9LZ165×7.0 | 19~31.6 | 2.5 | 3200 | 5600 | 45.24 | 165(61/2) | 5.7 | 41/2 REG | ||
