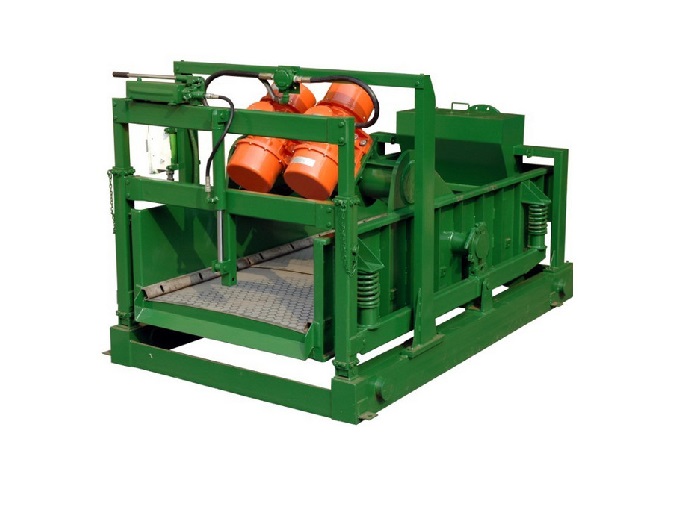

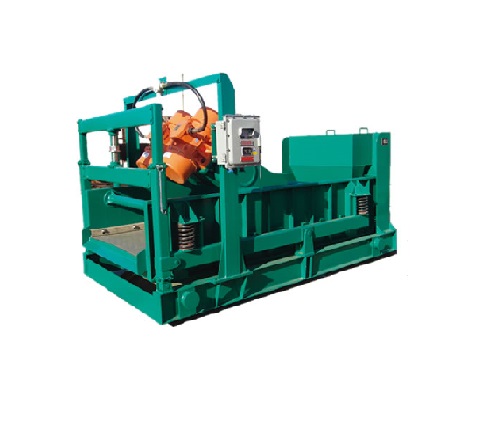

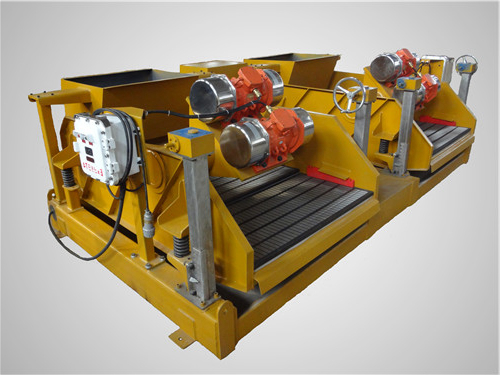

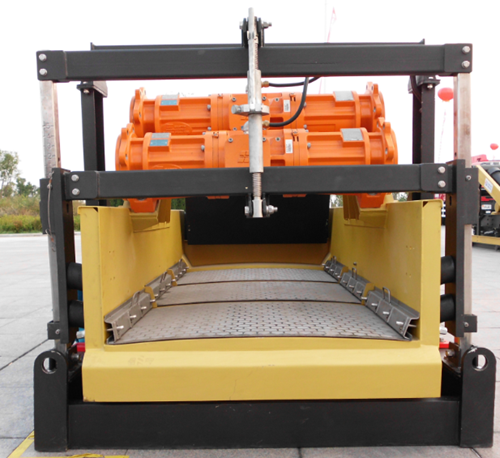

Linear Motion Shale Shaker
Product Number: KW-SC-02
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Shale Shaker Features & Benefits:
The shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment.
KINGWELL Shale Shaker Technical Data:
| Model | KWZS75-2P | KWZS85-2P | KWZS70-3P | KWZS-3P | KWZS-4P |
| Vibrating Mode | Liner motion | ||||
| Vibrating Power | 2×0.45kw | 2×1.0kw | 2×1.5kw | 2×1.5kw | 2×1.86kw |
| Vibrating Strength | ≤7.5G | ||||
| Double Amplitude | 6.0~7.2mm | ||||
| Capacity | 40m³/h(176GPM) | 80m³/h(352GPM) | 120m³/h(528GPM) | 150m³/h(660GPM) | 200m³/h(880GPM) |
| Deck Adjustment | 0~2° | -1~3° | -1~5° | -1~5° | -1~5° |
| Normal Power | 380V/50HZ,460V/60HZ or others | ||||
| Screen area |
1.4 m² |
2.1 m² | 2.6 m² | 2.1 m² | 2.7 m² |
| Screen of Deck | 2pcs | 2pcs | 3pcs | 3pcs | 4pcs |
| Weir Height | 1042mm or 944mm(Remark: mud logging tank divide into upper and back form) | ||||
| Starter | Magnetic force starter | ||||
| Decibels | <85db | ||||
| Weight | 760Kg | 1200Kg | 1390Kg | 1320kg | 1480kg |
| Dimension | 1650×1260×1080mm | 1975×1884×1448mm | 2403×1884×1448mm | 2370×1690×1420mm | 2950x1690x1420mm |
| Standards and Mesh | API, 40/60 | ||||
| Remark | Treating capacity test from mud:1.2g/cm³,density & viscosity 45s&40 mesh | ||||
