Products > Rig Parts

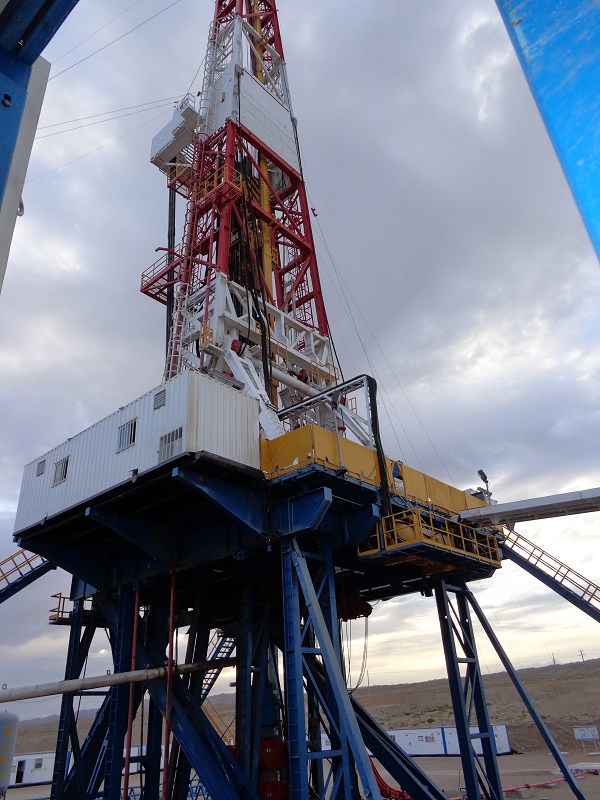

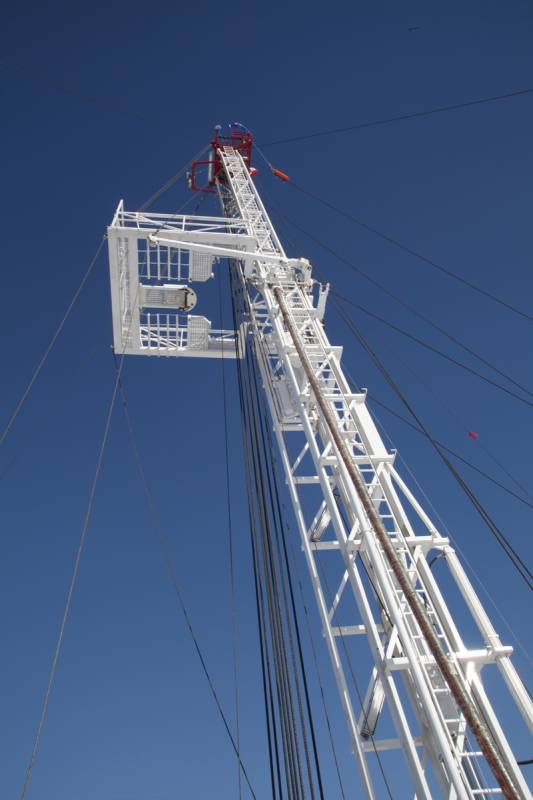

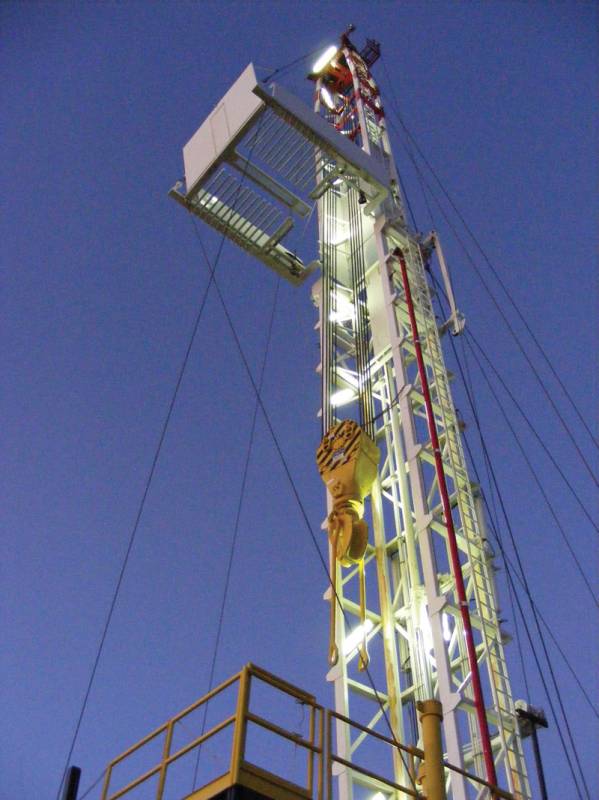

Product Number: KW-RP-05 Mast types are including A type, K type (open-front type), derrick, mast and bootstrap etc type.

We're here to help:
Easy ways to get the answers you need.

KINGWELL Rig Mast Technical Data:

Model	Mast type	Mast height /m	Max hook load(KN)	Stand capability/m (Φ114mm Drill Pipe)	The most bearable wind load(km/h)
JJ60/29-A	A Type	29	588	1000	172
JJ90/39-A	A Type	39	882	1500	172
JJ135/40-A	A Type	40	1323	2000	172
JJ170/41-A	A Type	41	1666	3000	172
JJ225/42-A	A Type	42	2205	4000	172
JJ315/43-A	A Type	43	3087	5000	172
JJ90/38-K	K Type	38	882	1500	172
JJ135/40-K	K Type	40	1323	2000	172
JJ170/41-K	K Type	41	1666	3000	172
JJ225/43-K	K Type	43	2205	4000	172
JJ315/45-K	K Type	45	3087	5000	172
JJ450/45-K	K Type	45	4410	7000	172
TJ2-41	Tower Type	41	2205	4000	80
HJJ315/45-T	Tower Type	45	3087	5000	172
HJJ450/4-T	Tower Type	45	4410	7000	172
HJJ450/49-T	Tower Type	49	4410	7000	172
