Products > Solid Control
Shaker Screen
Product Number: KW-SC-12
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Shaker Screen Features & Benefits:

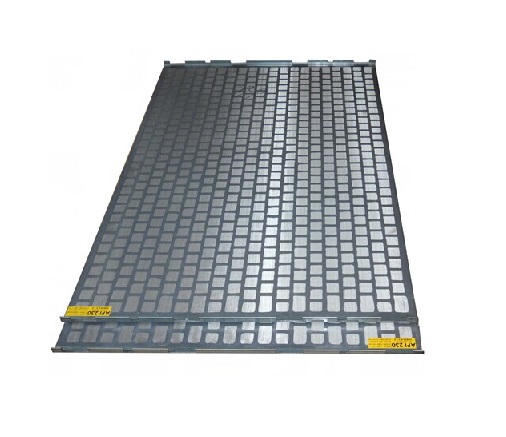

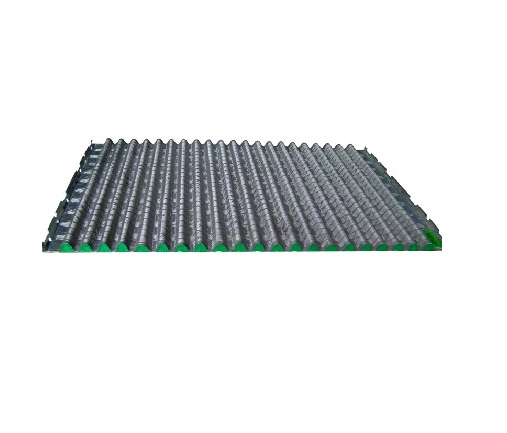

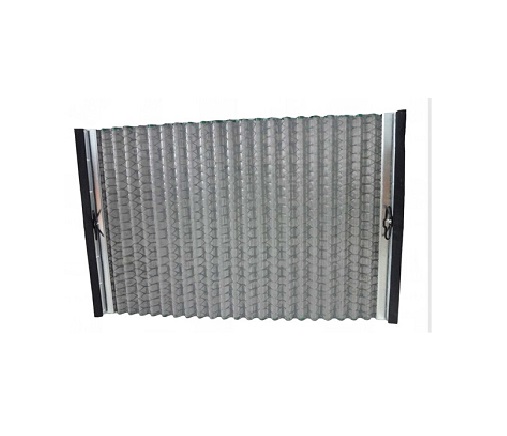

Shaker screen is wear part of the shale shaker, mainly classified into hookstrip soft screens, Hook flat screen, Steel frame screens and wave screen.
KINGWELL Shaker Screen Technical Data：
Shaker screen is wear part of the shale shaker, mainly classified into hookstrip soft screens, Hook flat screen, Steel frame screens and wave screen.
KINGWELL Shaker Screen Technical Data：
| Hookstrip soft screens | ||||
| Screen Model | Pange of Mesh | Dimension (Length x Width) | Brand & Model Of Shaker | Weight(Kg) |
| KWF-1 | 20-150 | 600×1040mm | NCS-300*2 | 1.5 |
| KWF-2 | 20-150 | 700×1165mm | S250 | 2 |
| KWF-3 | 120-210 | 1400×460mm | ZCN | 2.4 |
| KWF-4 | 120-210 | 1000×1150mm | NS-115/2 | 2.8 |
| KWF-5 | 20-80 | 927×914mm | JSS（U.S.A） | 2.1 |
| KWF-6 | 20-80 | 1219×1524mm | SSS(U.S.A) | 4.5 |
| Hook flat screen | ||||
| KWP-1 | 16-325 | 903×1155mm | SWACO | 5.6 |
| BEM-3 | ||||
| KWP-2 | 16-325 | 1212×1141mm | SWACO | 9 |
| ALS-11 | ||||
| KWP-3（PWP） | 16-325 | 697×1050mm | DERRICR | 6 |
| FLC500 Series | ||||
| KWP-4（PWP） | 16-325 | 697×1053mm | DERRICR | 4.2 |
| FLC2000 | ||||
| KWP-5 | 16-325 | 697×846mm | DERRICR | 4 |
| FLC313M | ||||
| KWP-6（PWP） | 16-325 | 915×1150mm | BRANDT LCM-20 | 8.6 |
| KWP-7（PWP） | 16-325 | 720×1220mm | KEMTRON | 5.6 |
| KTL48 Series | ||||
| KWP-8（PWP） | 16-250 | 700×1165mm | S250 | 4.6 |
| KWP-9 | 16-250 | 1186×1280mm | ZX60 | 9.2 |
| Steel frame screens | ||||
| KWK-1 | 16-325 | 585×1165mm | SWACO | 12 |
| MON900SE | ||||
| KWK-2 | 16-325 | 635×1253mm | BRANDT | 13.5 |
| BL-50 | ||||
| KWK-3 | 16-325 | 913×650mm | BRANDT | 12.5 |
| VSM-300 | ||||
| KWK-4 | 16-325 | 720×1220mm | KEMTRON | 17 |
| KTL48 Series | ||||
| KWK-5 | 16-325 | 712×1181mm | SF300 | 17 |
| Wave Screen | ||||
| KWB-1 | 80-210 | 635×1253mm | BRANDT | 17.5 |
| BL-50 | ||||
| KWB-2 | 80-210 | 697×1050mm | FLC 500 Series | 7.5 |
| KWB-3 | 80-210 | 697×1053mm | FLC2000 | 5.8 |
| KWB-4 | 80-210 | 915×1150mm | BRANDT | 10 |
| LCM-ZD | ||||
