Casing and Pipe cutting equipment

 Single-Trip Casing Cutting System was designed to speed up and simplify the mechanical abandonment operation. It removes the need for the old fashioned marine swivel and the heavy, rigid and hard to handle drill collar string. The system speeds up the handling of the cutting string as only one stand of 8" drill collars need to be run above the cutting assembly.

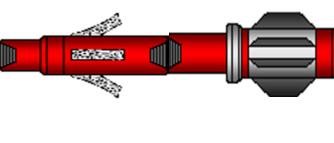

q pipe cuters range in size from 3 5⁄8" OD to 16" OD and will cut 4 ½" to 36" casing. The pipe cutter works on the principle of pressure drop across an orifice, which in turn forces the cutting blades into the open position. The tool is equipped with a piston position indicator which enables the operator to be positive that a cut has been achieved.


9 5⁄8" Rota0ng System
A. Series 9 Rotating Spear Connections: 4 ½" IF Box x Pin Top Sub: 2 ¼" ID
Fishing Neck: 6 ¼" OD
Inner Mandrel: 5 ⅜" OD x 2" ID Main Body: 7 ¼" OD
Must be dressed with suitable grapple for size and weight of casing.
B. 6 ½" OD Bumper Sub Connections: 4 ½" IF Box x Pin Main Body: 6 ½" OD x 2 ¼" ID Stroke: 20" or 1.66”
C. Drill Pipe Spacers (as required)
D. 8 ¼" OD Pipe Cutter
Connections: 4 ½" IF Box x 4 ½" Reg Box

Internal - 8 ¼" Bowen Fishing Neck: 6 ½" OD
Main Body: 8 ¼" OD
To cut 13 ⅜" Max Knife OD: Casing

13 3⁄8" Rotating System
  A. Series 13 Rotating Spear
Connections: 6 5/8” REG Box x Pin Top Sub: 3" ID
Fishing Neck: 8” OD
Inner Mandrel: 6 ¾” OD x 3" ID Main Body: 11 ¾” OD
Grapple or Segment size will be determined by casing or wellhead size
B. Spacer Subs (as required)
C. Non-Rotating Stabiliser
Connections: 6 ⅝" Reg Box x 4 ½" IF Pin Mandrel: 3" ID x 8" OD (9 ¼" OD on
upset)
Sleeve: 12 ¼" OD x 8 ⅛"ID
D. 8 ¼" OD Pipe Cutter
Connections: 4 ½" IF Box x 4 ½" Reg Box
Internal - 8 ¼" Bowen Fishing Neck: 6 ¼” OD
Main Body: 8 ¼" OD

Max Knife OD: To cut 13 ⅜“ Casing
