Dimple-Grapple Drilling Connector
Product number:KW-CT-01The Dimple-Grapple Drilling Connector has been designed specifically for drilling operations with downhole motors and impact hammers
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

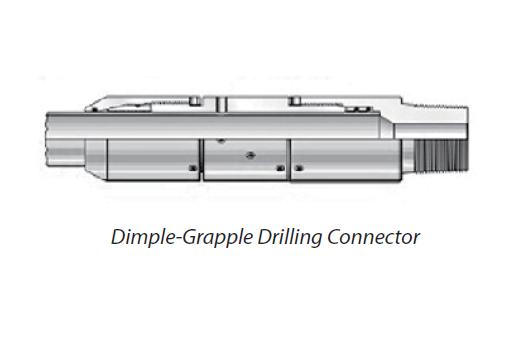

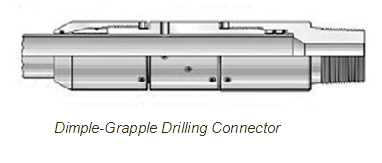

Dimple-Grapple Drilling Connector
The Dimple-Grapple Drilling Connector has been designed specifically for drilling operations with downhole motors and impact hammers.It is an external coiled tubing connector that combines the excellent tensile strength of a grapple connector with the superior torque capacity of the Dimple Connector.Polypak seals provide a high pressure seal
The Dimple-Grapple Drilling Connector has been designed specifically for drilling operations with downhole motors and impact hammers.It is an external coiled tubing connector that combines the excellent tensile strength of a grapple connector with the superior torque capacity of the Dimple Connector.Polypak seals provide a high pressure seal
Technical parameters:
| Coil Size | O.D. |
| 1.000” | 1.898” |
| 1.250” | 1.906” |
| 1.500” | 2.437” |
| 1.750” | 2.640” |
| 2.000” | 2.820” |
| 2.375” | 3.250” |
| 2.875” | 3.687” |
Features:
Easy field installation
High torque capacity
High tensile capacity
High pressure seal
Non-restrictive bore
