Products > Drilling Equipment
Casing Scraper
Product Number: KW-DE-13 It is used to clean cement, mud, embedded bullets, rust, mill scale, paraffin, perforation burrs and other substances from the inside walls of casing
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Casing Scraper Features & Benefits:

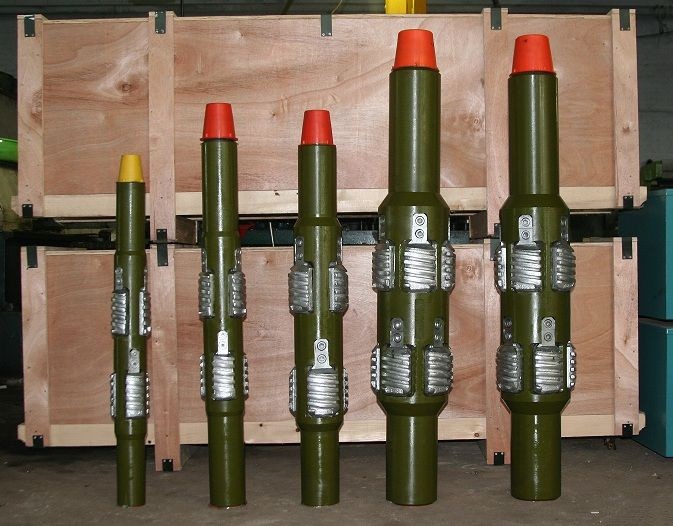

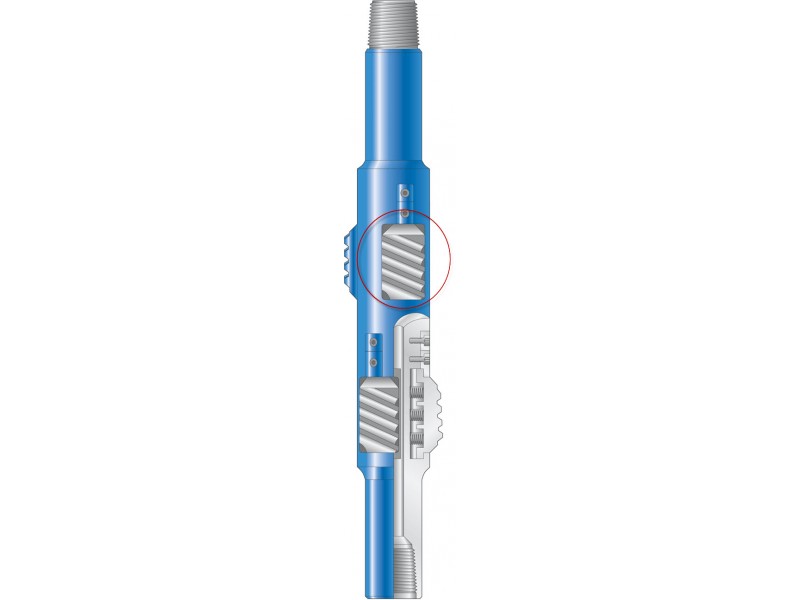

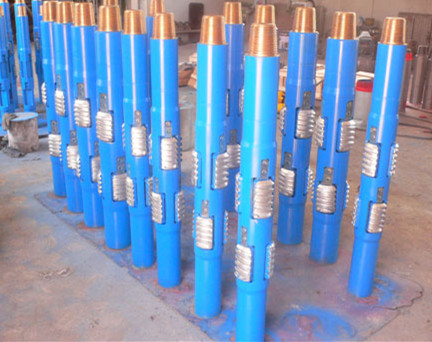

The KINGWELL Casing Scraper is used to clean cement, mud, embedded bullets, rust, mill scale, paraffin, perforation burrs and other substances from the inside walls of casing, maintaining a clean casing ID is important to the operation of all tools uesd in drilling the well.
KINGWELL Casing Scraper Technical Data:
The KINGWELL Casing Scraper is used to clean cement, mud, embedded bullets, rust, mill scale, paraffin, perforation burrs and other substances from the inside walls of casing, maintaining a clean casing ID is important to the operation of all tools uesd in drilling the well.
KINGWELL Casing Scraper Technical Data:
| Type | Casing size | Conn. | Body O.D. | Length | Body I.D. |
| inch(mm) | API | inch(mm) | inch(mm) | inch(mm) | |
| KW01 | 4-1/2 (114.3) | 2-3/8REG | 3-5/8(91) | 38-1/4(971.2) | 3/4(19) |
| KW02 | 5 (127) | NC26 | 3-5/7(94) | 38-1/4(971.2) | 3/4(19) |
| KW03 | 5-1/2(139.7) | NC31 | 3-5/16(110) | 44-5/16(1100) | 1(25.4) |
| KW04 | 6-5/8(168) | 3-1/2REG | 4-7/64(130) | 44-5/16(1100) | 1(25.4) |
| KW05 | 7 (177.8) | 3-1/2REG | 5-3/8(136) | 44-5/16(1100) | 1-13/16(30.2) |
| KW06 | 9-5/8(244.5) | 4-1/2REG | 8(1203) | 52(1320) | 2-1/4(57.2) |
| KW07 | 10-3/4(273) | 6-5/8REG | 9(228) | 59(1500) | 2-1/4(57.2) |
| KW08 | 13-3/(339.7) | 6-5/8REG | 11-1/4(286) | 59(1500) | 2-13/16(71.4) |
