Products > Wellhead Equipment

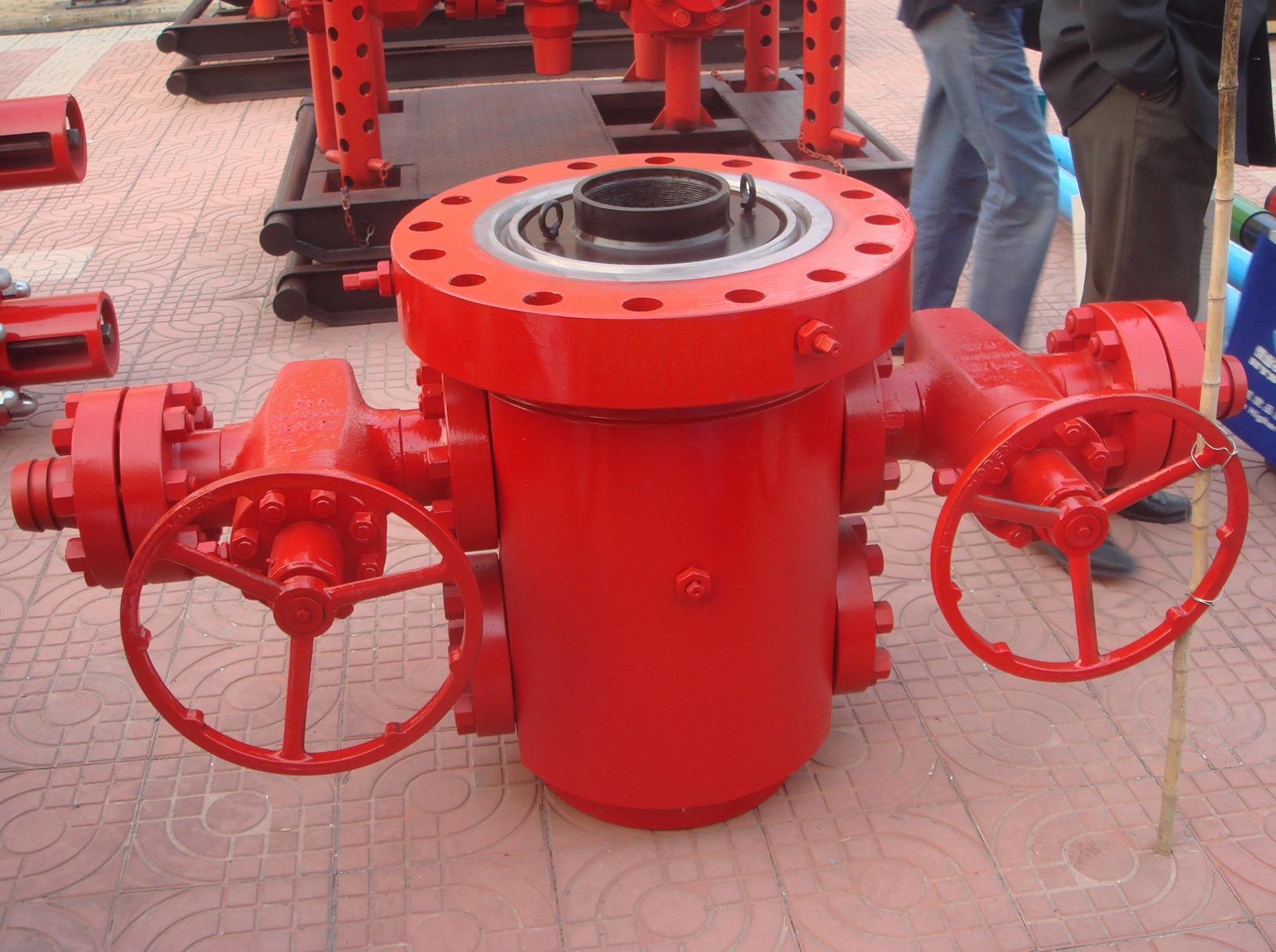

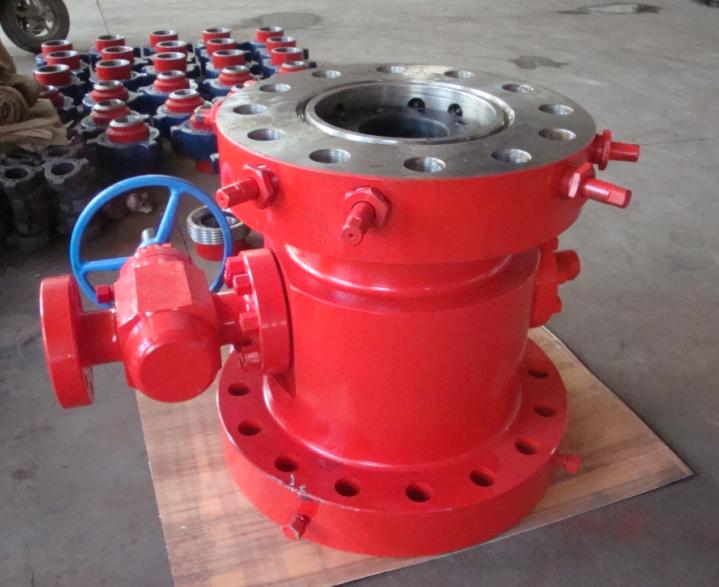

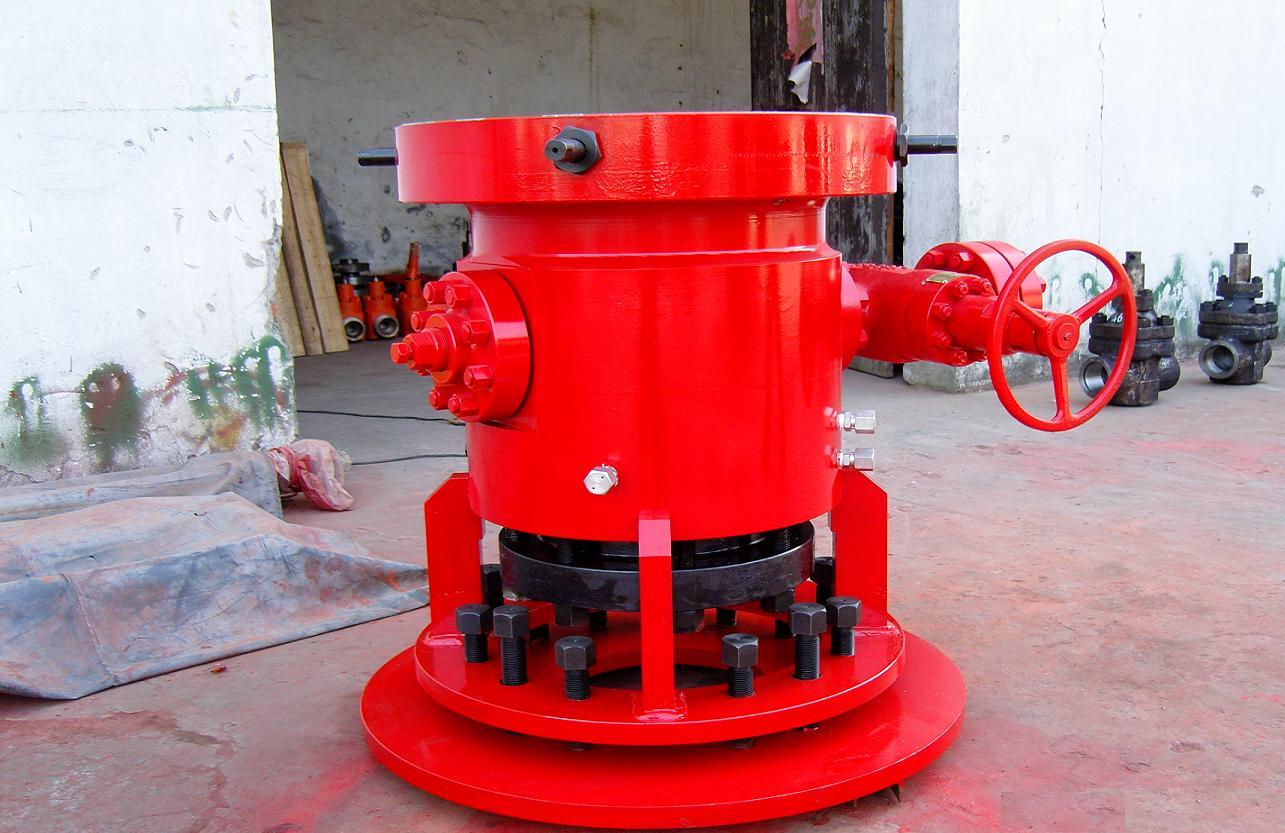

Casing Head
Product Number: KW-WH-04 casing head is used to suspend and seal a casing string and connect kinds of wellhead assembly.
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Casing Head Features & benefits:
Casing head connects the casings and wellheads. It provides a transition joint for the tubing head, Christmas tree and other wellheads. It is used to suspend and seal a casing string.
Features:
1. Straight bore design, with 45° shoulder, high load-capacity
2. Side outlet connection type: pipeline thread side outlet; threaded flange side outlet, design with VR plug
3. Connection forms between casing head and surface casing: threaded bottom type, welded bottom type, slip bottom type
KINGWELL Casing Head Techincal Data:
Working pressure: 2000-15,000PSI
Working medium: oil, natural gas, mud etc.
Working temperature: -46℃ - 121℃（Class LU）
Material class: AA、BB、CC、DD、EE、FF
Specification level: PSL1-4
Performance level: PR1-2
