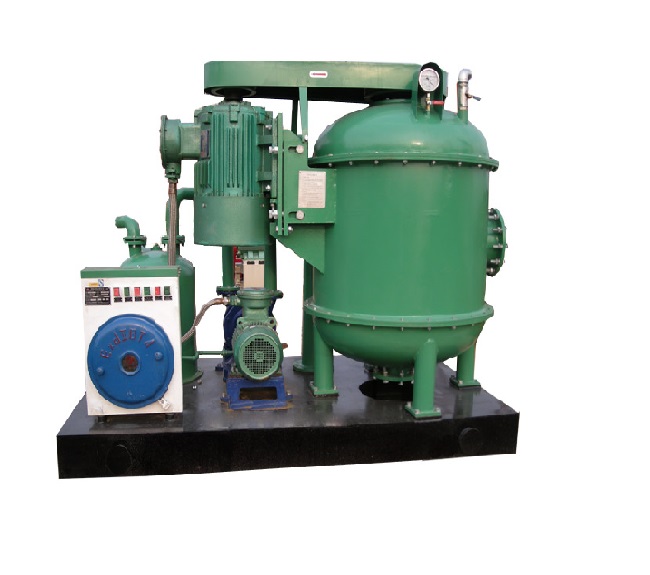

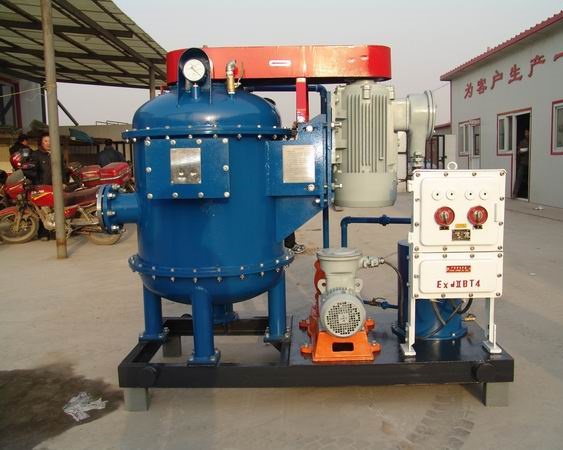

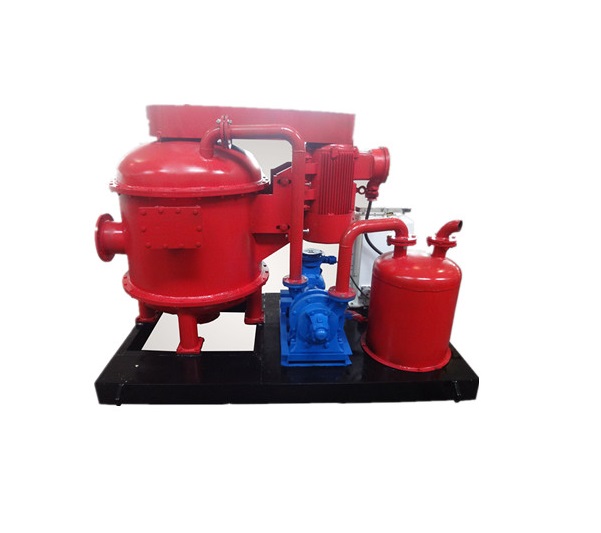

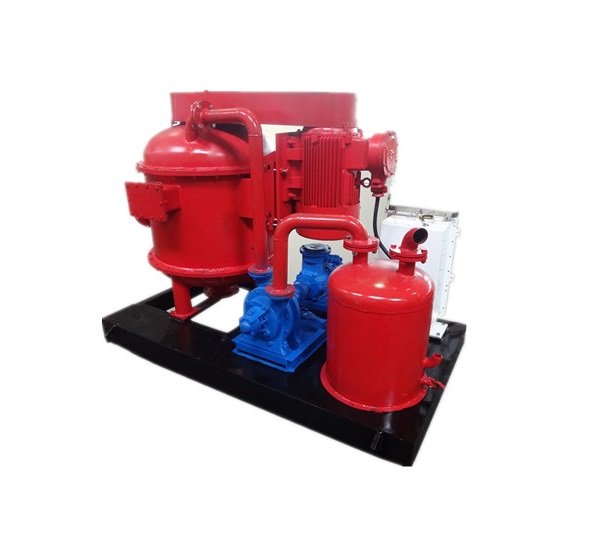

KINGWELL Vacuum Degasser Features & Benefits:

Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degassers play an important role in returning mud proportion and stabilize mud performance in solids control system and drilling waster management. It also can be used as a h-power agitator and applicable to all types of mud recycling system and mud cleaning system.

KINGWELL Vacuum Degasser Technical Data:


Model	KWCQ240	KWCQ 270	KWCQ 300	KWCQ 360
Max Capacity m³/h/GPM	240/1056	270 /1190	300 /1320	360 /1585
Ratio	1.67	1.67	1.68	1.68
Efficiency	≥95%	≥95%	≥95%	≥95%
Main Motor  kW/HP	15/20.1	22/29.5	30/40.2	37/49.6
Vacuum Pump  kW/HP	2.2/3	2.2/3	4/5.4	5.5/7.4
Rotary Speed  RPM	876	880	876	880
Dimension mm/in	1750×900×1510  68.9x35.4x59.4	1950×1010×1680  76.8x39.8x66.1	2250×1235×1650  88.6x48.6x65	2400×1500×1900  94.5x59x74.8
Weight kg/lbs	1200/2645	1450/3197	1960/3725	2510/5534
