Tubing Head
Product Number: KW-WH-05 Tubing head seals the annular space between the tubing string and the casing
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELLTubing Head Features & benefits:

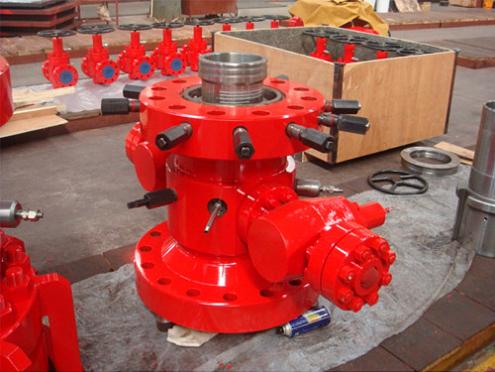

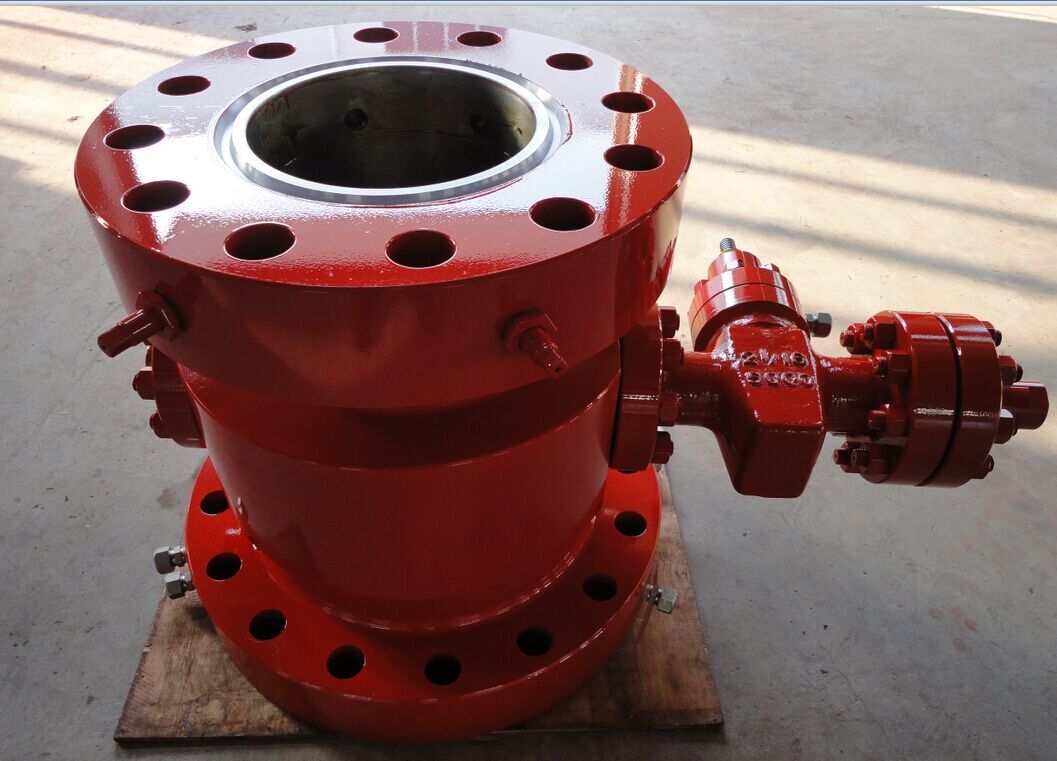

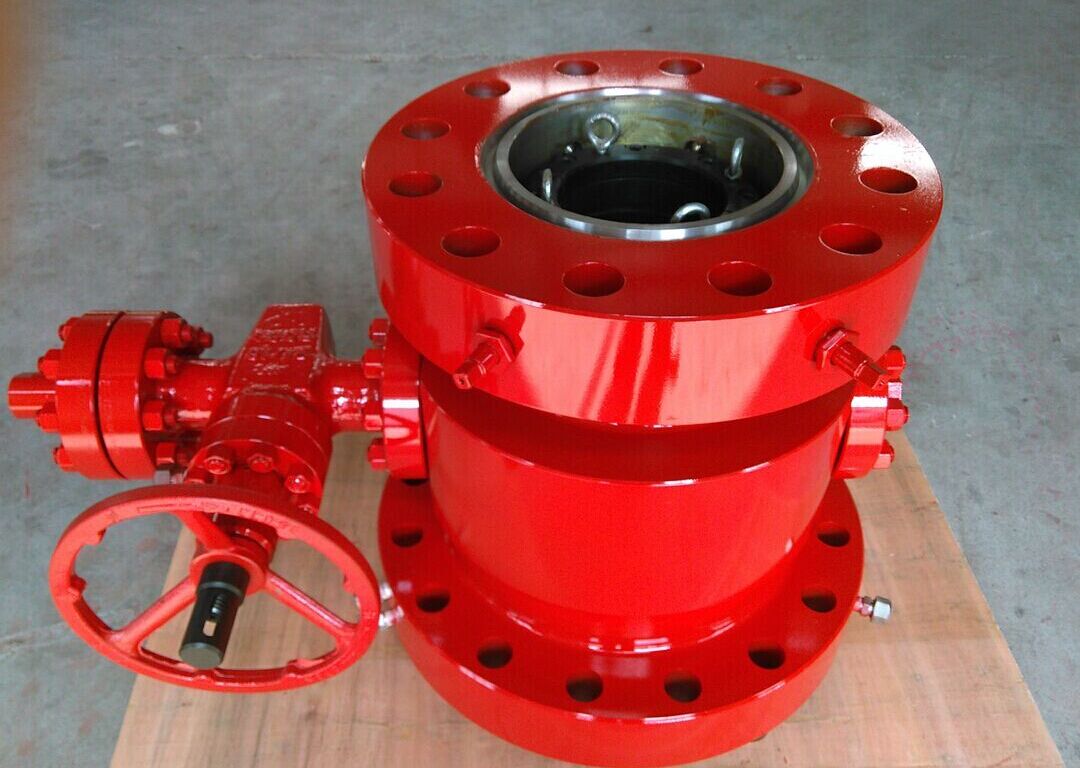

Tubing head is a body with two flange that can support the tubing string on a oil well, seals off the pressure between the casing and tubing annulus, and connect with tubing adapter on the top.
Features:
1. Straight bore design, with 45° shoulder, high load-capacity
2. Side outlet connection type: pipeline thread side outlet; threaded flange side outlet, design with VR plug
3. Lock down screw assembly: standardized design lock down screw assembly and lock wear bushing, tighten tubing hanger
4. Secondary Seal: design with secondary seal mechanism at bottom, the casing head shall be installed to fit the height of sealing device through cutting casing on spot
KINGWELLTubing Head Techincal Data
Working pressure: 2000-15,000PSI
Working medium: oil, natural gas, mud etc.
Working temperature: -46℃ - 121℃（Class LU）
Material class: AA、BB、CC、DD、EE、FF
Specification level: PSL1-4
Performance level: PR1-2
