Products > Rig Parts

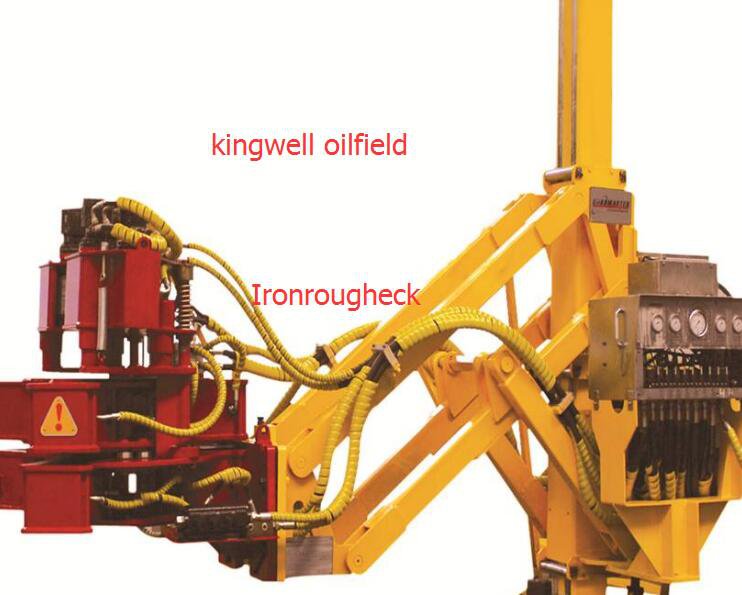

Ironroughneck
Product Number: KW-RP-12
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Ironroughneck Technical Data:
| Descripiton | parameters | |||
| type | iM-120 | |||
| Catch Range | 3 1/2″~9 5/8″ | |||
| Max. Breakout Torque | 160 KN. m | |||
| Max. Makeup Torque | 140 KN. m | |||
| Spinning Speed | 60~70r/min | |||
| Max. Horizontal Moving Distance of Wrench Port | 1400mm | |||
| Max. Vertical Moving Distance of Wrench Port | 700mm | |||
| Torque Wrench Rotating Range in the Horizontal Plane | ±45° | |||
| Torque Wrench Rotating angle in the Vertical Plane | ±10° | |||
| Rotating Angle of Main Clamp for Makeup and Breakout | 27° | |||
| Max. Spinning Torque | 4 KN.m | |||
| External Dimension after Withdrawal(L×W×H) | 2090×1590×4050mm | |||
| Weight of Whole Machine | 5.9T | |||
| Pressure of Hydraulic System | 2540psi | |||
| Flow rate of Hydraulic System | 17.6Callon/min(uk) | |||
| Power Supply | AC 180/230V，10A，50/60Hz | |||
| Makeup and Reset Time(Excluding Wrench Extensuion&Retraction time) | 32s | |||
| Ambient Temperature | -20℃ to 55℃ | |||
