Drawworks

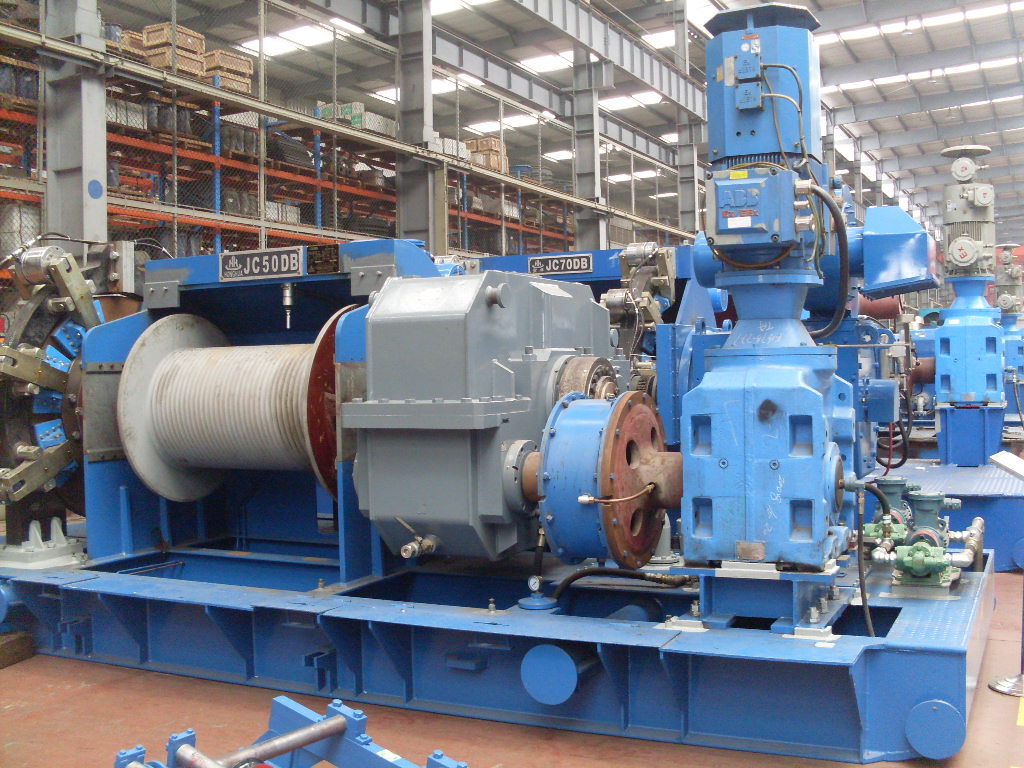

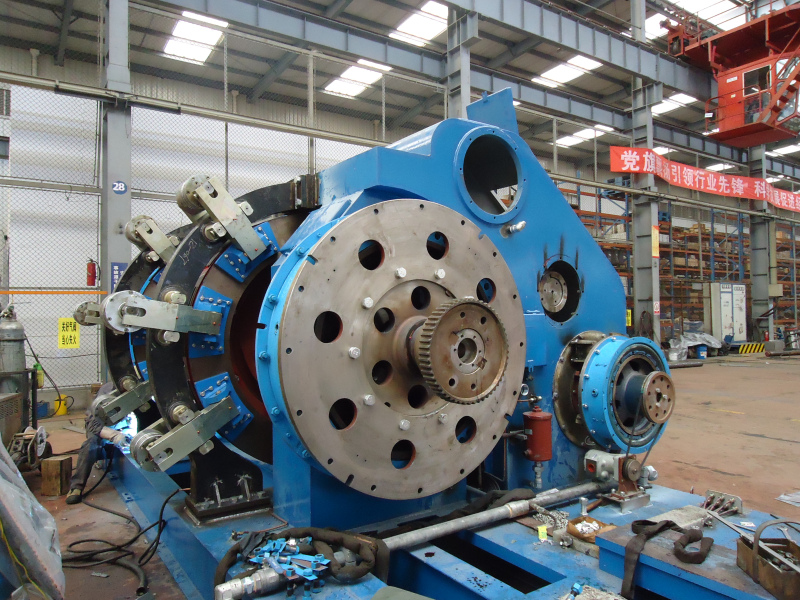

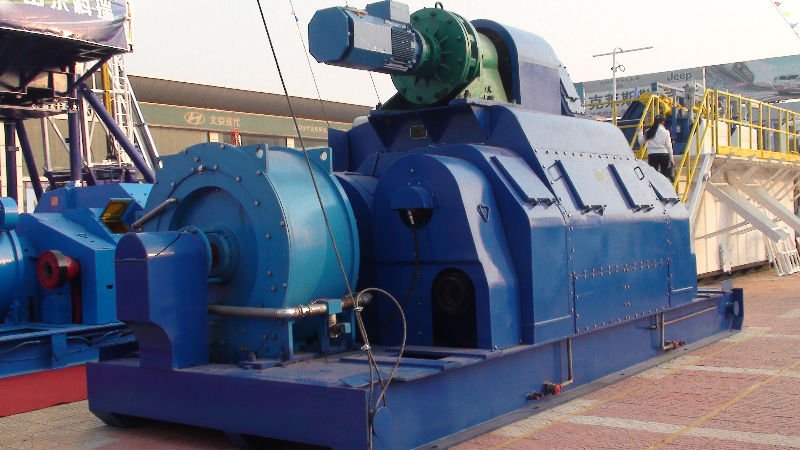

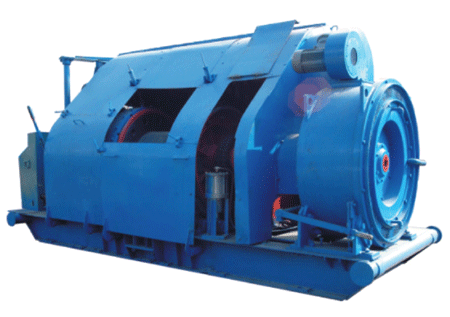

Product Number: KW-RP-02 Drawworks is the core part of Drilling Rig. It is used for operation of lifting or laying down mast, hoisting or descending drilling tools.
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELL Drawworks Features & Benefits:
Drawworks is the core part of Drilling Rig. It is used for operation of lifting or laying down mast, hoisting or descending drilling tools and casings. And we also supply drawworks parts for TOP name brand drilling rigs and keep the stock parts and equipments for most types of drilling rigs.
KINGWELL Drawworks Technical Data:
Drawworks is the core part of Drilling Rig. It is used for operation of lifting or laying down mast, hoisting or descending drilling tools and casings. And we also supply drawworks parts for TOP name brand drilling rigs and keep the stock parts and equipments for most types of drilling rigs.
KINGWELL Drawworks Technical Data:
| JC40 | JC40D | JC40DB | JC50 | JC50D | JC50DB | JC70 | JC70DB | ||
| Rating Imput Power | 1000 (735) | 1500 (1100) | 2000 (1470) | ||||||
| hp(kW) | |||||||||
| Max. Fastline Pull | 61820 (275) | 76435 (340) | 109030 (485) | ||||||
| lbf.(kN( | |||||||||
| Dia. of Drill Line | 1 1/4(32) | 1 3/8 (35) | 1 1/2 (38) | ||||||
| in (mm) | |||||||||
| Drum Size (dia.xwidth) | 25.20 x 44.84 | 25.20 x 51.25 | 26.97 x 44.80 | 30.31 x 53.58 | |||||
| in (mm) | (640 x 1139) | (640 x 1302) | (685 x 1138) | (770 x 1361) | |||||
| Gears for Hoisting Speed | 4+2R | stepless speed changing | 6+2R | stepless speed changing | 6+2R | stepless speed changing | |||
| Brake Disc (dia. x thickness) in(mm) | 59.06 x 2.99 (1500 x 76) | 63 x 2.99 (1600 x 76) | |||||||
| Main Brake | hydraulic disc brake | hydraulic disc brake, energy- consumption brake | hydraulic disc brake | hydraulic disc brake, energy- consumption brake | hydraulic disc brake | hydraulic disc brake, energy- consumption brake | |||
| Auxiliary Brake | DWS40L | WCBD236 | FDWS50LD | WCBD336 | DS-70 | ||||
| Outline Size in(mm) | Length | 260 (6600) | 295 (7500) | 268 (6800) | 295 (7500) | 320 (8120) | 302 (7670) | ||
| Width | 114 (2890) | 116 (2946) | 117 (2980) | 179 (4537) | 117 (2980) | 125 (3175) | 181 (4585) | ||
| Height | 105 (2670) | 101 (2555) | 118 (2998) | 101 (2555) | 107 (2705) | 126 (3197) | |||
| Weight lbs.(kg) | 45195 | 61346 | 77160 | 105822 | 77160 | 102283 | 134483 | ||
| -20500 | -27826 | -35000 | -48000 | -35000 | -46395 | -61000 | |||
