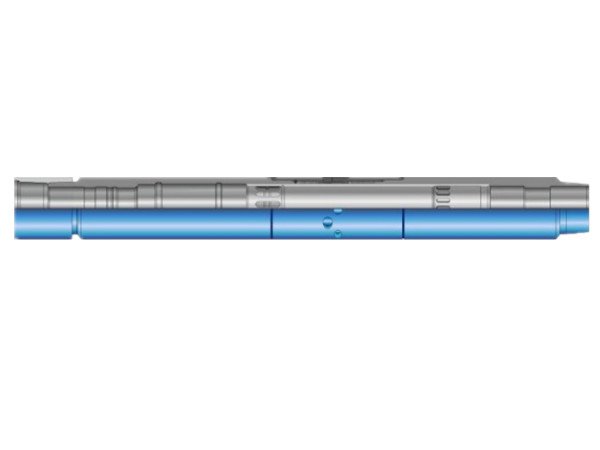

Side Door Sleeve SDS



Side Door Sleeve SDS is used together tubing which when open, allows flow between the well tubing and the annular area. Which can be opened or closed by standard slickline methods to gain communication between the tubing/casing annulus. It is designed with a landing nipple profile in the top sub, packing bores in both the top and bottom sub, and a non-elastomer seal package and with full tubing flow through the nipple and the sleeve.



This circulation & production sleeve is installed as an integral part of the main tubing string and any number of pieces can be run in a single tubing string. It can be run in either the open or closed position. The closing sleeve may be placed in three positions: open, equalizing, or closed. This operation is done with a positioning tool attached to a standard slickline tool string.



Features and Benefits



Nipple profile available

Non-elastomer seals

Polished pack off area

Circulation/production area equals the tubing area

Several pieces of equipment can be run in a single tubing string

All the pieces can be shifted on a single trip of the slickline, and individual sleeves can also be opened or closed selectively as desired

Inner sleeve can be shifted repeatedly, opens up or down

Packing does not move when the sleeve is shifted

The sleeve can be kept in full open, equalizing or full closed position by three-position collet lock

Equalizing ports in the inner sleeve allow equalizing at high differential pressure



Application



Circulating completion or kill fluids

Single selective production and injection completions

Tubing pressure test by running a plug inside

Washing above packer

Technical Data

Tubing Size		Tubing Weight		Tubing ID		Seal Bore
In.	mm	lb/ft	kg/m	in.	mm	in.	mm
2 3/8	60.3	4.6	6.85	1.995	50.67	1.875	47.63
		4.7	6.99	1.995	50.67
2 7/8	73	6.4	9.52	2.441	62	2.312	58.72
		6.5	9.67	2.441	62
3 1/2	88.9	9.2	13.69	2.992	76	2.812	71.42
		10.3	15.33	2.992	76	2.75	69.85
4	101.6	10.9	16.22	3.476	88.29	3.312	84.12
		11	16.37	3.476	88.29
4 1/2	114.3	12.6	18.75	3.958	100.53	3.812	96.82
		12.75	18.97	3.958	100.53
		15.2	22.62	3.826	97.18	3.688	93.68
5 1/2	137.5	17	25.3	4.818	122.38	4.562	115.87
		20	29.76	4.694	119.23
