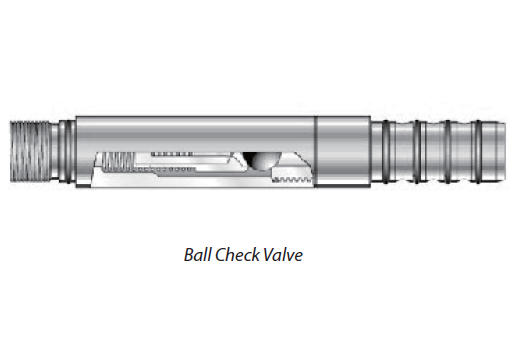

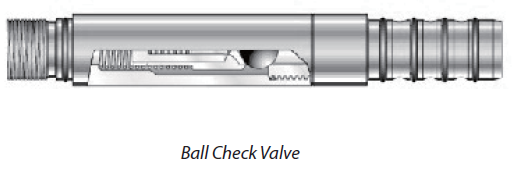

Ball Check Valve

Typically run in tandem, the Ball Check Valve is a safety component used within a coiled tubing string. It provides one-way flow to allow fluids, N₂, or CO₂ to be pumped through the coiled tubing, while preventing well fluids from flowing back up the tubing string. Ball check valves will not permit drop balls or wiper plugs to be pumped through to the tool string below.



Technical parameters:

O.D.	Makeup Length
1.500”	6.875”
1.687”	8.400”
1.750”	8.375”
2.000”	8.400”
2.125”	8.375”


Features:
Large bore for high flow rates
Spring actuated valve ball and
cage ensure positive seal
Easy field servicing
