KW Micro DAS
Product Number:
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
Overview
Application
Features
Specification

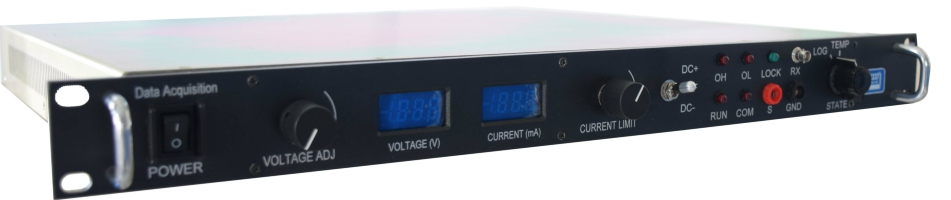

The micro Data Acquisition System (DAS) is a highly integrated portable data acquisition unit, which integrates the DC Power function etc. in the 19" 1U unit. The unit is connectable to PC via a USB Port to supply power to the downhole tools, acquire and process the tool data, acquire depth and tension data, and to transmit commands from the surface to downhole tools.
Application
Compatible with KWCbus protocol：
• KWCbus (AMI code)
• Manchester code
• Positive/Negative pulses code
Better adaptibility to different cables
USB ports provided for interfacing with other surface systems
· DC unit integrated
· Integrated depth data acquisition function
· Better adaptibility to different cables
· Visual display function for easy cable connection
· Power supply: 100-240V, without switching
Specification
| Size | Length 482.6mm (19”)x Width 413.0mm (16") x 44.45mm (1.75“) |
| Mounted in Standard 19" Frame | |
| Weight | 8Kg (181b) |
| Operating Temperature | -10°C~+60°C |
| Operating Voltage | AC100~240V(47~63Hz) or DC 140-343V |
| Applicable to international power supply | |
| Max. Power | 240 watt |
| Power Supply | Voltage DC25~240V, Adjustable |
| Adjustable Current 50-500mA, Power Less Than 100W | |
| Continuous Working Time | 48hrs |
| Transmission | Mono-conductor, Encode/Pulse Mode |
| Applicable Wireline | Mono-/Multi-conductor (as mono-conductor) |
| Depth Input | Orthogonal Increment Signal, Output +5V power |
| Tension Input | Analog with range 0.25V~5V, Output ±15V power |
| Port to PC | USB |
| Depth Display | Display-9999.99~99999.99, Optional Metric/lmperial Unit. |
| Depth Sampling Interval | 40~320m, Optional. |
| Drawing Scale | 1:20 (50, 100, 200, 500, 1000) Optional |
| Max. Curves for Display | 400 |
| Max. Logging Speed | 3200m/hr |
| Display | Curve and Depth Synchronous Rolling |
| Record | Hard Disk, Thermal Drawing |
