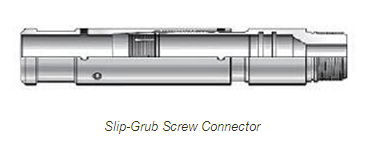

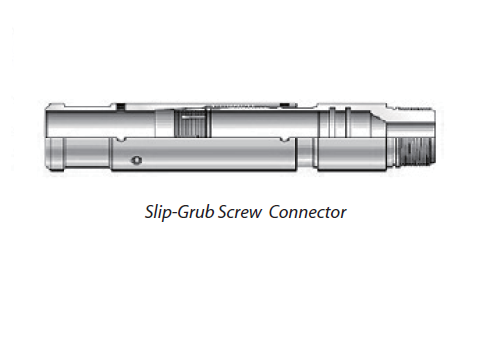

Slip-Grub Screw Connector

The Slip-Grub Screw Connector is used to connector a tool string to the coiled tubing via a threaded connection.The connector is designed specifically to accommodate torsional and tensile loads while retaining an outside diameter common to most tool strings. They are available with customer specified bottom threaded connection.



\Technical parameters:


O.D.	Coil Tubing Diameter	Tensile Yield Strength
1 11/16”	1 1/4”	43,000lbs
1 3/4”	1 1/4”	43,000 lbs
2 1/8”	1 1/4” and 1 1/2”	88,000 lbs
2 1/8”	1 3/4”	51,000 lbs
2 1/4”	1 1/4” and 1 1/2”	91,000 lbs
2 1/4”	1 3/4”	55,000 lbs
2 7/8”	1 1/2” and 1 3/4”	156,000 lbs
2 7/8”	2”	135,000 lbs
3 1/8”	1 1/2” and 1 3/4”	156,000 lbs
3 1/8”	2”	135,000 lbs

Features:
Non-restrictive bore
Slimline design
No special installation tools required
