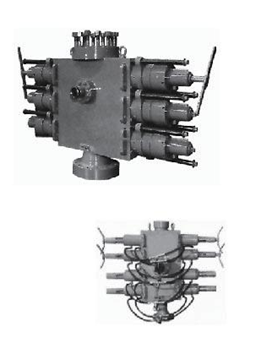

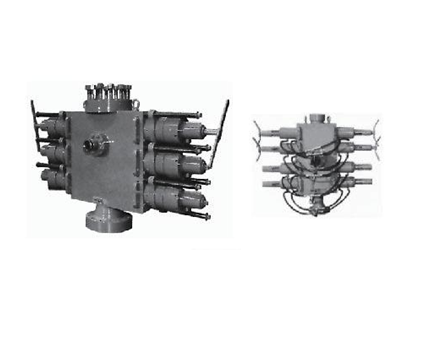

Coiled Tubing Blowout Preventers

Slide-Lok Blowout Preventer Assembly allows fast removal of ram actuator bodies for Fast ram repair/size change without the use of hand tools.

Please note the following design features:

Design Features:

Type-Unitized                   Body-One piece forged steel
I.D.-3“ , 4 1/16“ ,5 1/8“ ,6 3/8“         Working Pressure-10,000 psi
Service outlet-2 1/16“ 10M 6BX studded flange
Connections-Specified by customer
Port(s)-Wellhead pressure/inhibitor injection
Autoclave(optional)              Certification-DNV/Lloyds(optional)

Accessories:


External equalizers	RAM position indicators
Manual hand locking wheels with non-rising stems
2 1/16“ 10M flange x Weco 1502 Union thread half(optional)


Rams:


Top-blind ram	Second-Shear ram
Third-Slip ram	Bottom-Tubing ram
Tubing sizes 1“ through 4 1/2“ O.D.
