Products > Drilling Equipment
Casing Scraper
Product Number: KW-CT-11 Casing Scraper is used to remove cement scale, mud, mill scale, rust, paraffin... from the inside walls of casing
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

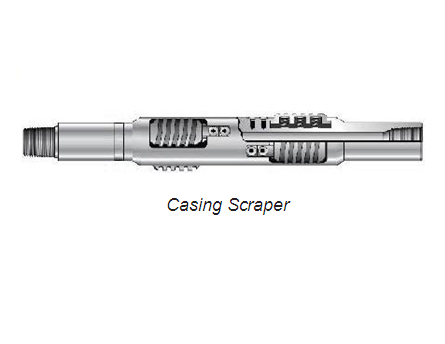

Casing Scraper
The Casing Scraper is used to remove cement scale, mud, mill scale, rust, paraffin, perforation burrs and other substances from the inside walls of casing. This operation produces a smooth inside casing diameter that will assist in a successful down hole operation such as setting packers, bridge plugs, etc.
Technical specification：
The Casing Scraper is used to remove cement scale, mud, mill scale, rust, paraffin, perforation burrs and other substances from the inside walls of casing. This operation produces a smooth inside casing diameter that will assist in a successful down hole operation such as setting packers, bridge plugs, etc.
Technical specification：
| TYPE |
I.D. in (mm) |
Tool Joint Connection API |
Overall length ft-in (mm) |
I.D of suitable casing in(mm) |
| KW114 |
1 (25.4) |
2-3/8REG |
3' (906) |
3-13/16~4-3/32 (97.2~103.9) |
| KW127 |
1 (25.4) |
NC23 |
3'3" (1,000) |
4-1/4~4-9/16 (108.6~115.8) |
| KW140 |
1 (25.4) |
NC26 |
3'3" (1,000) |
4-5/8~4-15/16 (118.6~125.7) |
| KW178 |
1-3/16 (30.0) |
3-1/2REG |
3'8" (1,105) |
6~6-3/8 (154.8~161.7) |
| KW245 |
2-1/4 (57.0) |
4-1/2REG |
4'5" (1,340) |
8-1/2~8-7/8 (216.8~226.6) |
| GGQ340 |
3-1/2 (88.9) |
6-5/8REG |
4'11" (1,500) |
12-3/6~12-3/4 (315.3~323.0) |
