Products > Coiled Tubing Completion
Slimline Grapple Connector
Product number:KW-CT-03 The Slimline Grapple Connector was designed for thru-tubing interventions and completions
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:

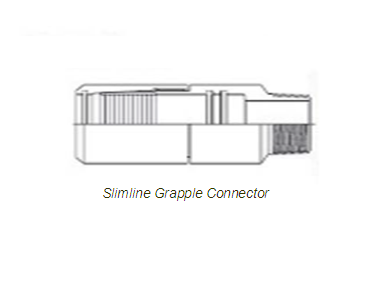

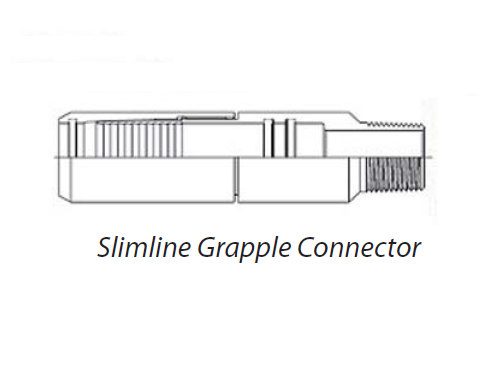

Slimline Grapple Connector
The Slimline Grapple Connector was designed for thru-tubing interventions and completions where the external OD of the tool is critical.The high-strength external slip connector has high pressure seals which make it suitable for most applications. Alternate materials are available for specialty applications, and a variety of thread connections are available to mate with existing tools.
Technical parameters:
The Slimline Grapple Connector was designed for thru-tubing interventions and completions where the external OD of the tool is critical.The high-strength external slip connector has high pressure seals which make it suitable for most applications. Alternate materials are available for specialty applications, and a variety of thread connections are available to mate with existing tools.
Technical parameters:
| CT Size | Tool O.D. |
| 1.250” | 1.687 |
| 1.500” | 2.000” |
| 1.750” | 2.250” |
