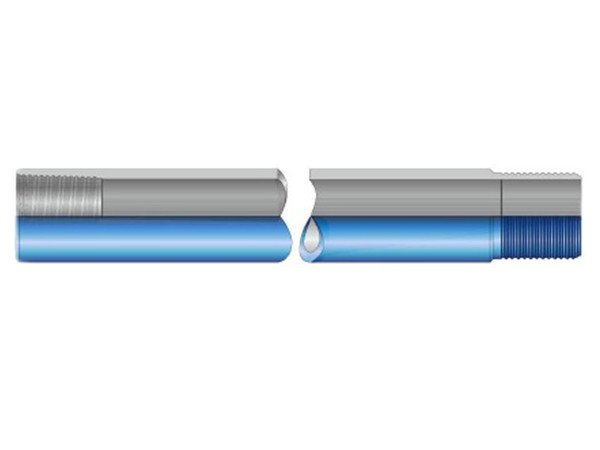

Flow Coupling

Flow couplings are thick-walled tubular components normally utilized in completions and located adjacent to changes in the tubing ID. They are an important part of life-of-the-well completion planning and used where erosional turbulence caused by changes in the tubing ID. KINGWELL recommends flow couplings to be installed above and below landing nipples, safety valve landing nipples or any other restrictions that may cause turbulent flow. Flow couplings are generally connection OD and are available in 3, 4, 6 and 8 ft lengths.

Features and Benefits

Wall thickness greater than tubing and normal connection OD
Available in various lengths
Available in various materials
Helps extend the life of the well completion
Installed above and below landing nipples, safety valve landing nipples or any other restriction that may cause turbulent flo
