Cable Pack-Off

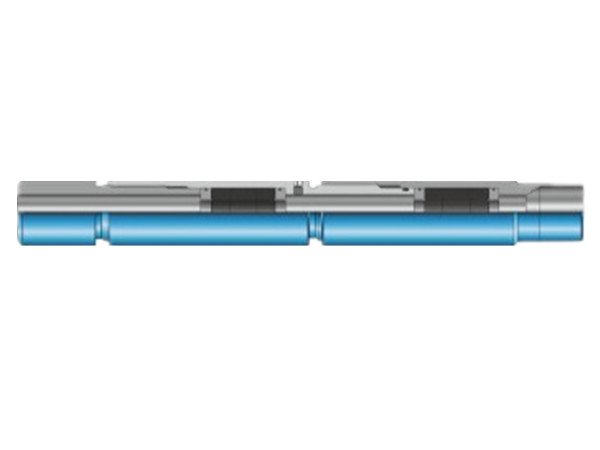

The Cable Pack-Off provides an effective seal for an electrical submersible pump (ESP) cable when used with a multistring packer. To achieve a seal, the metal shield on the cable is removed from a short section, and the cable is installed through the secondary side of the ESP packer. The tool isolates pressure below from pressure above the packer by sealing on the rubber jacket of the cable.



Features and Benefits



Compression energized elastomeric seals

Without splicing or using expensive penetrators when running cable through the packer

Seals on cable OD, designs available for round and flat cables

Simple tighten of a nut to compress the elastomers

Standard 3000psi working pressure rating
