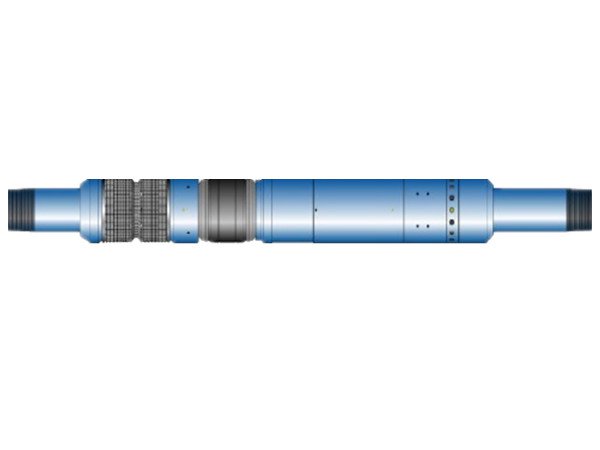

KWHSRP3 Hydraulic-Set Retrievable Packer
The KWHSRP3 packer is a hydraulic-set retrievable single-string packer which is design for high pressure, large ID or TCP applications. The packer allows multiple bores or control line feed –through. Except straight-shear release features, the KWHSRP3 packer can be set up cut to release which is use to high pressure or heavy tailpipe. The cage slip, which distributes the packer to casing loads more.
Features and Benefits
Field proved reliable
Production and Injection application
Large ID
Single piece mandrel
No mandrel movement for multi zone stacked packer application
Single trip capability
Multiple bores or control line feed–through
Straight pull to release or cut to release
Used in high pressure, large ID or TCP well condition
Field adjustable the setting pressure and shear release
Upper tubing connection or Latch head
Applications
Single or multi-packer production completions
Production and injection wells
TCP
Production and injection wells
Technical Data
| Casing Size | Casing Weight | Packer OD | Packer ID | ||||
| in. | mm | lb/ft | kg/m | in. | mm | in. | mm |
| 5 1/2 | 139.7 | 13-17 | 19.34-25.30 | 4.71 | 119.63 | 2.89 | 73.41 |
| 20-23 | 29.76-34.22 | 4.47 | 113.54 | 2.89 | 73.41 | ||
| 7 | 177.8 | 26-29 | 38.69-43.16 | 5.95 | 151.13 | 3.92 | 99.57 |
| 32-35 | 47.62-52.09 | 5.83 | 148.08 | 3.92 | 99.57 | ||
| 7 5/8 | 193.68 | 29.7-39 | 44.20-58.03 | 6.43 | 163.32 | 3.92 | 99.57 |
| 9 5/8 | 244.48 | 40-47 | 59.53-69.94 | 8.48 | 215.39 | 4.88 | 123.95 |
| 43.5-53 | 64.74-78.86 | 8.29 | 210.57 | 4.88 | 123.95 | ||
* Other ID available depending on tubing size selected.
* Other casing sizes available depending on request.
