F1600 mud pump unit
Product Number: /uploads/soft/160120/1-1611011IT7.pdf
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
KINGWELLis a professional manufacturer in China for oil & gas drilling Triplex Mud Pump and Fluid End Expendables
as well as Plunger Pump Parts. With decades of experiences, kwcould supply a wide range of pump & parts :
1.F- 1600 mudpump unit
2.F-1300/1600 DRILLING PUMP UNIT AND Parts Book
3.F-2200 HL Mud Pump
F 2200HL
Mud Pump List
as well as Plunger Pump Parts. With decades of experiences, kwcould supply a wide range of pump & parts :
1.F- 1600 mudpump unit
2.F-1300/1600 DRILLING PUMP UNIT AND Parts Book
3.F-2200 HL Mud Pump
F 2200HL
F-2200HL Mud Pump General Drawing
|
No. |
Qtys |
Drawing No. |
Name |
|
1 |
1 |
AH2202010100 |
Frame Assy |
|
2 |
1 |
AH2202010200 |
Crankshaft Assy |
|
3 |
1 |
AH2202010300 |
Pinion Shaft Assy |
|
4 |
3 |
AH2202010400 |
Crosshead Assy |
|
5 |
1 |
AH2202010500 |
Fluid end Assy |
|
6 |
1 |
AH2202010600 |
Power end Lubrication Assy |
|
7 |
1 |
AH2202010700 |
Substructure |
|
8 |
1 |
AH2202010800 |
Spray Pump Assy |
|
9 |
2 |
AH22020109 |
Crosshead Cover |
|
10 |
2 |
AH22020110 |
Nameplate |
|
11 |
3 |
AH22020111 |
Cover Plate |
|
12 |
3 |
AH22020112 |
Sealing Gasket |
|
13 |
2 |
AH2202011300 |
Oil Level Gauge |
|
14 |
1 |
AH2202011400 |
Oil Gathering Box |
|
15 |
2 |
AH22020115 |
Gasket |
|
16 |
1 |
AH2202011600 |
Cover Assy |
|
17 |
1 |
AH2202011700 |
Bracket |
|
18 |
1 |
AH2202011800 |
5"Auxiliary Line(52MPa) |
|
19 |
1 |
AH1602010600 |
Safety Valve Seat |
|
20 |
2 |
AH13010116 |
Sealing Gasket |
|
21 |
2 |
AH1301011500 |
Pin for Signs |
|
22 |
1 |
AH2202011900 |
Cover Plate |
|
23 |
1 |
AH22020120 |
Sealing Gasket |
|
24 |
1 |
T515-101.00 |
Ventilation Hood |
|
25 |
2 |
AH10010109 |
Sealing Gasket |
|
26 |
1 |
AH2202012100 |
Lifting Frame |
|
27 |
1 |
AK45520100 |
KB-45H Air Bag |
|
28 |
1 |
AH0000060300 |
JA-3H Shear Pin Valve |
|
29 |
1 |
AH1301011000 |
Telpher |
|
30 |
2 |
AH10010113 |
Indicator |
|
31 |
1 |
T506-1008 |
Plug NPT 2" |
|
32 |
1 |
Double Scale Pressure 80MPa 11600 |
|
|
33 |
24 |
T503-1007 |
Isometric Stud M30*3*240 |
|
34 |
48 |
T507-2001 |
Nut M30*3 |
|
35 |
2 |
T508-6001 |
Packing Ring BX169 |
|
36 |
8 |
T503-1008 |
Stud Bolt M20*140 |
|
37 |
16 |
T507-2013 |
Nut M20 |
|
38 |
1 |
T508-6002 |
Packing Ring BX152 |
|
39 |
14 |
420201070727100010 |
Bolt M27*100 |
|
40 |
14 |
420503011271600000 |
Spring Washer27 |
|
41 |
14 |
420402080270200000 |
Nut M27 |
|
42 |
8 |
420201070724110070 |
Bolt M24*110 |
|
43 |
8 |
420402080240200000 |
Nut M24 |
|
44 |
8 |
420503011241600000 |
Spring Washer 24 |
|
45 |
14 |
420501036120200000 |
Packing Ring12 |
|
46 |
8 |
420201070712035010 |
Bolt M12*35 |
|
47 |
4 |
420201070716040010 |
Bolt M16*40 |
|
48 |
4 |
420501036160200000 |
Packing Ring 16 |
|
49 |
16 |
420201070712025010 |
Bolt M12*25 |
|
50 |
8 |
420201070716060010 |
Bolt M16*60 |
|
51 |
8 |
420402081160200000 |
Nut M16 |
|
52 |
6 |
420999050603001000 |
Pin for Signs3*10 |
|
53 |
8 |
420101063104000800 |
Cross Recess Pan Head Screw M4*8 |
|
54 |
1 |
530302010003000000 |
Rubber Strip 51*10*5600 |
|
55 |
170506010100243000 |
Threaded Anaerobic Locking glue |
|
|
56 |
2 |
TTA5022-265 |
Adapter R2*265 |
|
57 |
2 |
520209064040401502 |
Small and Medium Reducing Tee RC2*1/2 |
|
58 |
2 |
520204020300500402 |
The Foreign PlugR2 |
|
59 |
AH13010119 |
Adjustable Pad |
|
|
60 |
4 |
AH13010119 |
Copper Pad |
|
61 |
2 |
AH22020122 |
Stopping Pad
|
|
62 |
1 |
AH22020123 |
Spare Parts |
|
63 |
1 |
AH2202012400 |
Attachment Tools |
Mud Pump List
| Bomco/Emsco | F-1300 | FB-1300 | F-1600 | FB-1600 | FA-1300 | FA-1600 | FC-2200 | F-1000 | F-800 | F-500 |
| F-350 | DB-550 | D-700 | DA-700 | D-300/500 | D-375 | - | - | - | - | |
| National | 7P50 | 8P80 | 9P100 | 10P130 | 12P160 | 14P220 | N1300 | C-250 | E-700 | G-100 |
| K-500 | K-380 | K-500A | K-700A | C-250 | C-350 | JWS-400 | - | - | - | |
| Gardner Denver | PZ7 | PZ8/9 | PZ10/11 | FK-FXK | FY-FXX | FG-FXG | FF-FXP | KG-KXG | FQ-FXQ | FF-FXF |
| Oilwell | A-560-PT | A-600-PT | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | - | - | - | - |
| Russian | UNBT-950 | UNB-600 | 8T-650 | NBT600 | UNB1180 | UNBT1180L | 3PN1600 | E1600 | - | - |
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | - | - | - | - | - |
| Wirth | TPK1000 | TPK1600 | TPK2000 | - | - | - | - | - | - | - |
| LS (China) | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | 3NB800 | 3NB1300A | - | - | - | - |
| Ellis | E-447 | E-2200 | - | - | - | - | - | - | - | - |
| Drillmec | 9T1000 | 12T1600 | - | - | - | - | - | - | - | - |
| Others: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS, WILSON, GASO, SKYTO, BREWSTER, WETHERFORD | ||||||||||

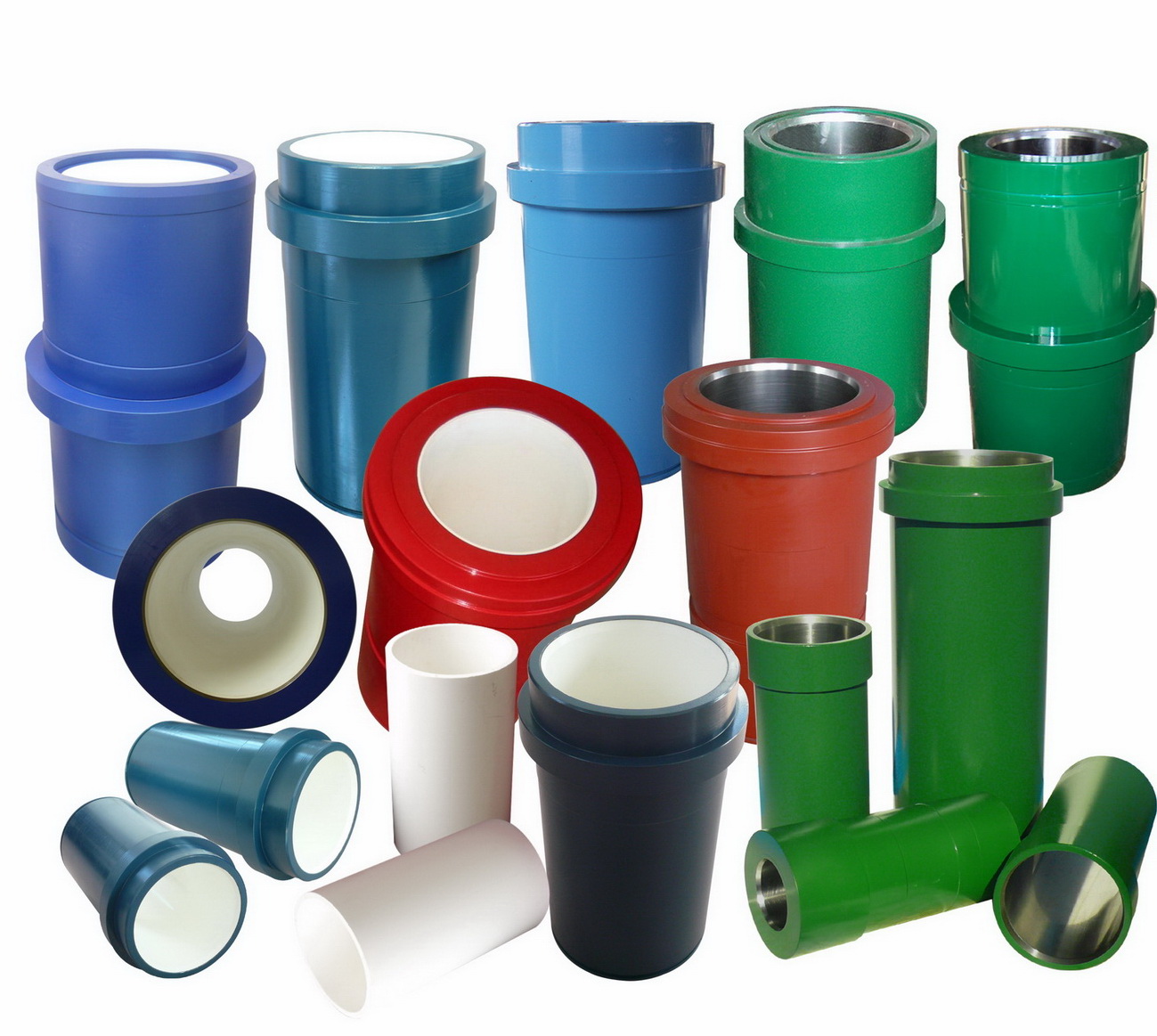

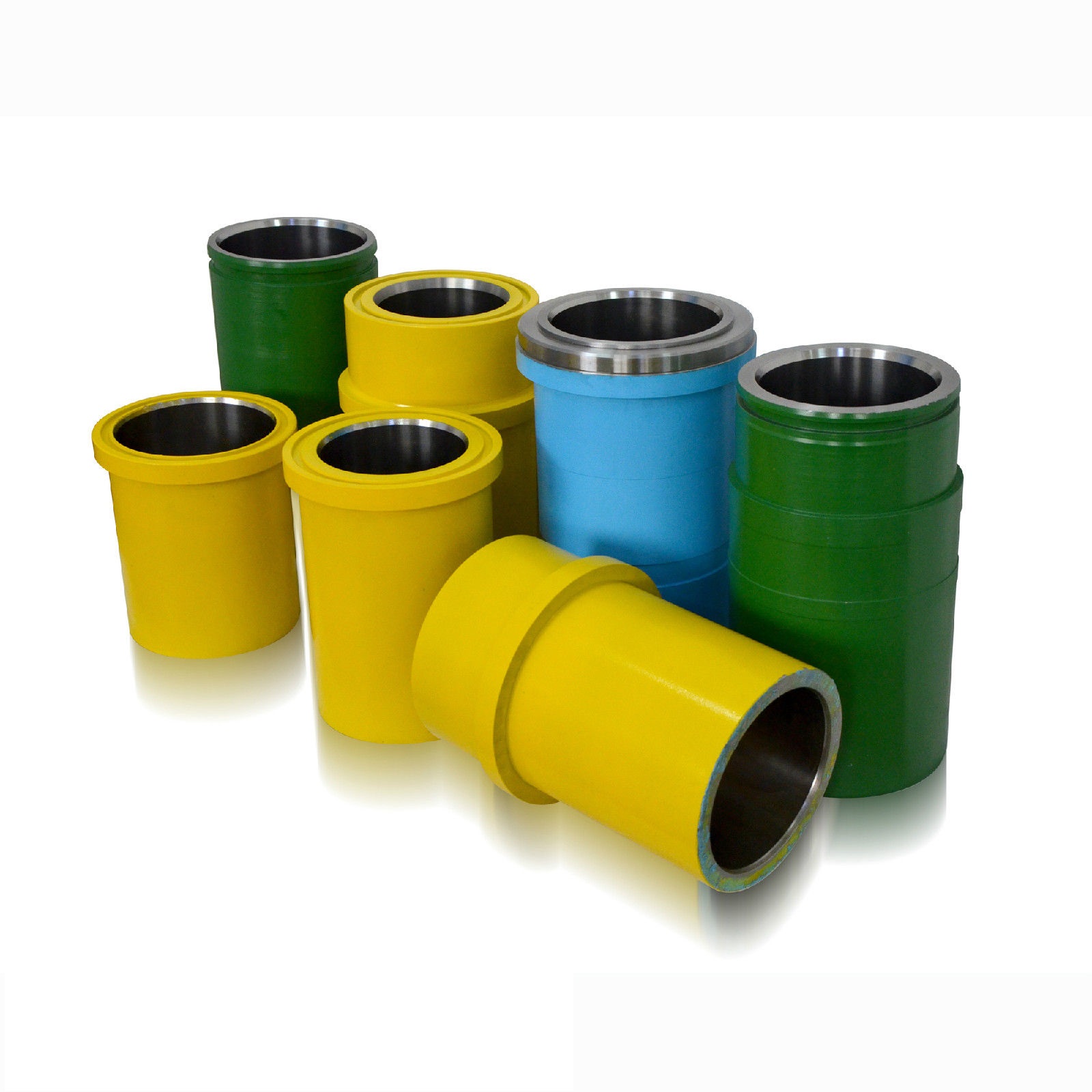

Bimetal Liner
Bimetal Liner Of Mud Pump
Application
Bimetal liner is used as a kind of mud pump fluid end accessories in the oil drilling industry.
Features
Our bimetal liner, API complaint, provides wear-resistant outer sleeve and high chrome corrosion-resistant inner sleeve. The high chrome liner has high rigidity of HRC≥61-64 after heat treatment.
Advantages
The bimetal liner offers long service life of about 800 hours, which is 2 to 3 times the lifetime of common ones in severe
Ceramic Liner
Ceramic Liner Of Mud Pump
Applications
The ceramic liner is used as a kind of mud pump fluid end parts in the oil drilling industry.
Features
Compared with the metal liner, the ceramic liner is wear and corrosion resistant and has extended working life. The ceramic liner helps reduce drilling cost and labor intensity. Made of internationally advanced, new material toughened zirconium oxide, the liner provides fracture toughness of K10-15Mpa (10 times that of the traditional one), and bending strength of σ600-800Mpa. The ceramic liner has excellent wear and corrosion resisting properties, with the Weber number being m18 and the elastic modulus of E200Gpa.
Advantages
The ceramic liner is the best choice for high pressure mud pumps. It is manufactured strictly in accordance with specific technical standards by use of advanced processing techniques. The ceramic liner comes in various specifications, which come in Φ150～180×310～440mm.
Valve Assembly
Valve Assembly Of Mud Pump
Application
Valve assembly is used as a kind of mud pump fluid end parts in the oil drilling industry.
Materials
Valve assembly is mainly made of high-quality alloy steel such as 20CrMnTi, 20CrNiMo, etc., which drastically exceeds the SY standards.
Advantages
The valve rubber of the valve assembly is made of new type high polymer materials to ensure superior performance, strong impact resistance under high temperature and high pressure.
Piston Assembly
Piston Assembly Of Mud Pump
Application
Piston assembly is used as a type of mud pump fluid end accessories in the oil drilling industry.
Materials
The main body of the piston assembly is made of forged steel 45# or 40Cr, and the piston cup and rubber are of high polymer materials.
Advantages
In order to accommodate every drilling need in various oil fields, we at KINGWELL have developed superior piston assembly for customers. Our piston assembly offers the advantages of reliable performance, strong wear and hydrolysis resistance under high temperature and high pressure.
Piston Rod
Piston Rod Of Mud Pump
Applications
Piston rod, as a kind of mud pump parts, is used as a fluid end accessory in the oil drilling industry.
Features
The piston rod is made of structural alloy steel, which goes through tempering heat treatment to achieve superior mechanical performance. The surface of the piston rod can be treated through phosphatization or galvanization.
Safety Valve
Safety Valve Of Mud Pump
Application
Safety valve is used as a mud pump fluid end accessory in the oil drilling industry.
Function
The safety valve serves to guarantee smooth operation of a mud pump within rated working pressure range.
Features
The safety valve offers easy reset, flexible operation, small bearing area, and high universality.
Valve Module
Valve Module Of Mud Pump
Application
Valve module is used as a kind of mud pump fluid end parts in the oil industry.
Advantages
The valve module is made by forging superior structural alloy steel, with no cracks or other flaws. It is fully compliant with API standards
Pulsation Dampeners
The pulsation dampeners shall be installed properly to reduce the pressure fluctuation and smooth the liquid flow. In order to extend the lifespan of the air bag, it is highly recommended to maintain the suggested proportion of the pump pressure to the pre-charge pressure of the air bag for the pulsation dampeners. Generally, the pump pressure shall be 2/3 that of the discharge pressure and no more than 4.5MPa.
Warning
1. Compressed nitrogen or compressed air shall be used for air charging. It is prohibited to utilize flammable and combustible gas such as compressed oxygen or hydrogen.
2. During maintenance, the pump pressure and the pressure inside the pulsation dampeners shall be zero. Since the residual pressure is generally small and can not be indicated on the pressure gauge, user shall confirm the pressure carefully to avoid accident caused by low pressure.
Extension Rod
The extension rod is an important part for the power end of mud pump in oil drilling. Produced by KINGWELL Company, it is forged from high quality alloy steel. High mechanical performance of the mud pump parts can be achieved through heat treatment. After being processed by CNC machine, this pump rod is ensured with precise geometric size. It is chrome plated with one-sided chrome thickness of over 0.1mm for increased abrasion resistance and extended service life of the alloy steel rod.
Crosshead
The crosshead is a vital part for the power end of mud pump in petroleum drilling. It acts as a pump component for connecting a piston with the extension rod. This mud pump part plays a guiding role. Its size precision decides the stability of operation of the whole mud pump. The crosshead assembly produced by KINGWELL Company is precisely forged from ductile cast iron beyond the industrial standard, which provides improved mechanical properties and elongation. Through heat treatment and parkerizing process, it eliminates the internal stress generated from the casting process and also increases its corrosion resistance. The crosshead centerline is determined prior to CNC machine processing. The error of all finishing size from the centerline has to meet the requirement of the drawing. In this way, the coaxially of the crosshead and the stability of both geometric size and power supply can be strictly guaranteed. The crosshead assembly covers a full range of BAOSHI, QINGSHI and LANSHI brand pumps. Both metric and imperial accessory products can be provided to meet the requirement of customers.
Upper and Lower Valve Guide
Upper and lower valve guides are important parts for the fluid end of mud pump in oil drilling. The upper type acts as a connector of valve spring and valve cover inside the hydraulic cylinder. It plays a guiding role in valve operation. The lower one is a connector of valve spring and hydraulic cylinder inside the cylinder. It has the function of fixing and guiding the valve operation.
Cylinder Head
Manufactured from domestically famous medium carbon alloy steel, the cylinder head has outstanding mechanical performance and wear-resistant property. The hammer forging, as well as the ultrasonic flaw detection technology, effectively eliminates the crack caused by porosity of metal structure. Our alloy steel cylinder head is machined with advanced CNC machine tool to ensure the small tolerance and good stability for installation. Apart from that, the precisely controlled heat treatment helps us achieve mechanical strength and hardness conforming to the requirement for mud pump.
Working Principle
The cylinder head is an important part for the inlet and outlet of fluid end valve housing. It is generally assembled to the flange of the valve housing. The bottom of the cylinder lid is installed against the positioning plate and the plug, playing the function of fixing.
Installation
User shall place the positioning plate into the hole at the pump head in case the installation of valve body assembly of the inlet and the guide apparatus is completed. In the meantime, the sealing ring of the cylinder head shall be put on the plug of the product. The outside of the sealing ring and the plug of the cylinder cover shall be smeared with light oil. Afterwards, push the plug into the opening of the fluid end and smear the thread of the product with lubricating grease. Finally, user shall screw in the thread into the cylinder head and fasten it with the fastening tool and hammer.
Flashboard Assembly
The flashboard assembly, also called positioning plate assembly, is an important component for the fluid end of mud pump in petroleum drilling. It has the function of longitudinally fixing the guide and horizontally fixing the cylinder head assembly for a hydraulic cylinder. Flashboards made by KINGWELL Company cover a full range of BAOSHI, LANSHI and QINGSHI brand pumps. All of them adopt high grade alloy carbon steel made by domestic steel plants. They have experienced the CNC cutting, blanking, heat treatment and CNC machining process, which ensures the geometric size. Some models of the product are added with copper blocks in order to increase the abrasion resistance of both flashboard and hydraulic cylinder end face. As mud pump accessories, they are well received by clients from numerous markets.
Valve Cover
Scientifically designed, the valve cover is made of first class medium carbon alloy steel from domestically famous brand, for excellent mechanical property and good resistance to abrasion. To avoid the defection such as crack caused by porosity of metal structure, we particularly manufacture the mud pump part with free forging and ultrasonic flaw detection technology. The advanced CNC machine tool enables accurate dimension of the valve cover. By virtue of the precise control on heat treatment, the mechanical strength and the hardness of the valve cover are in compliance with the requirement for mud pump working environment.
Working Principle
The valve cover is an important part for the inlet and outlet of valve housing for fluid end. The bottom of the mud pump valve cover is connected to the valve body guider, to ensure the airtightness and the stability of the water outlet.
Installation
Firstly, put the seal ring of the product in the hole of the valve housing. Secondly, user shall smear sealing element and the thread with lubricating grease. Finally, the valve cover shall be fastened with the fastening tool and the hammer.
Wear Plate
The wear plate is a kind of pump accessory for the fluid end of mud pump in oil drilling. It has the function of sealing and pressure maintaining for a hydraulic cylinder. All wear parts made by KINGWELL Company adopt high end alloy carbon steel made by domestic steel plants. These wear resistant steel plates have experienced the high temperature forging, heat treatment and CNC machining process, which guarantees geometric size, sealing performance, increased abrasion resistance and durability. Different models and types of wear plate (liner) products and related jackscrews can be offered upon request.
Cylinder Flange
The cylinder flange is a vital part for the fluid end of mud pump in petroleum drilling. As a mud pump element, it plays a role in fixing and sealing the hydraulic cylinder head plug and cover. A high-grade proper flange is adopted for improved cylinder head plug loading condition, increased bearing capacity and extended lifespan. The product made by KINGWELL Company covers a full line of BAOSHI, LANSHI and QINGSHI pumps. It is manufactured from high quality alloy carbon steel by domestic steel plants. This carbon steel flange withstands the high temperature forging, heat treatment and CNC machining process for guaranteed geometric size as well as increased wear resistance and durability.
Valve Cover Flange
The valve cover flange is important to the fluid end of mud pump during the oil drilling process. It is an oil drilling tool that has the function of fixing and sealing the hydraulic cylinder head plug and cover. A superior quality proper flange is utilized for improved cylinder head plug loading condition, increased bearing capacity and extended service life. The mud pump part made by KINGWELL Company covers all kinds of BAOSHI, LANSHI and QINGSHI brand pumps. It adopts top grade alloy carbon steel manufactured by Chinese steel plants. As a fluid end part, this product is completed through high temperature forging, thermal treatment and CNC machining in order to guarantee geometric size and also improve durability and wear resistance.
Pressure Gauge
The Yt-100 pressure gauge is made of stainless steel. This pressure measuring device can be installed at axial direction or radial direction. The screw thread of the pressure meter makes the installation of the product easier. Our stainless steel pressure gauge is strictly manufactured according to IP 65 protection level. The measuring accuracy of the pressure gauge is up to 1.5%.
New Type Core Box
Brief Introduction
The core box is a container used to store cores which are pulled out by a drill. Rock cores obtained from a drill hole are put into a core tray sequentially and cataloged timely by geologist. The product would be numbered and stored in a core library.
Features of New Type Core Box
The new type core box is made from new synthesized materials by high pressure injection molding. It is obviously superior to ordinary plastic core tray regarding the resistance to shock, aging, high temperature, extremely cold climate and other aspects. This product is categorized into 2 series and 8 sizes. It is equipped with box cover, flash-board, chains and other accessories. Our drill core box is reliable equipment of long-term storage and convenient transportation for geological exploration and oil exploration.
2S Gear Oil Pump
2S Gear Oil Pump
The 2S gear oil pump is the main element for the lubricating system of the power end for mud pump. This lubricating oil pump is usually installed on the pressure lubrication system, offering lubricating oil for crosshead, crosshead bearing, extension rod, etc.
Corrugated Bellows
Corrugated Bellows
The corrugated bellow is a kind of tubular elastic rubber product which is connected using a corrugated piece for the mud pump from LANSHI and QINGSHI factories. It plays a role in separating and sealing between the fluid end and the power end of a mud pump. Dezhou KINGWELL Petroleum Machinery Co., Ltd. is capable of producing different models of corrugated pipes. Our company holds an independent rubber accessory factory and the first self-invented rubber injection machine in China. After injection, the raw material can be vulcanized and completed in an integrated mould for only once, which ensures both performance and lifespan of the corrugated bellow.
Plug, Cylinder Head Sealing Plug
Plug
The plug is an important part for the fluid end of mud pump in oil drilling. Its front part is equipped with cylinder head (valve cover) sealing ring for the sealing and pressure maintaining of a hydraulic cylinder. A top-grade suitable plug is adopted to improve the cylinder head plug loading condition and also increase the bearing capacity and service life. Plugs made by KINGWELL Company cover a full range of pumps from BAOSHI, LANSHI and QINGSHI factories. All of them adopt high quality alloy carbon steel made by domestic steel plants. They are finished by means of high temperature forging, heat treatment and CNC machining so as to achieve guaranteed geometric size, sealing performance, increased durability and wear resistance.
Locking Clip
Locking Clip
The locking clip is a part of the fluid end of F series mud pump from BAOSHI factory. It has the function of fixing and supporting the guide inside a hydraulic cylinder. The product produced by KINGWELL Company is made from superior quality brass. After being heated, it is bended and completed with specialized equipment for increased wear resistance and extended service life.
Stuffing Box, Diaphragm Stuffing Box
Stuffing Box
The stuffing box is an important component for the power end of mud pump in oil drilling. It plays a crucial part in sealing the lubricating system and the operation inside power end. Its housing produced by KINGWELL Company is precisely cast from ductile cast iron beyond industrial standard for improved mechanical properties and elongation. The adoption of heat treatment and phosphating technology helps eliminate the internal stress generated from the casting process and also improves corrosion resistance. After CNC finish machining, it is tightly assembled with wear-resistant rubber, vulcanized oil seal and sealing ring, as well as the nylon oil seal ring made by the machining center. In this way, the service life of sealing elements inside the stuffing box assembly could be greatly extended. This product is well received by clients.
Cylinder Retaining Ring, Liner Locking Ring
Cylinder Retaining Ring
As its name implies, the cylinder retaining ring is a part of fluid end for fixing the cylinder sleeve.
Cylinder Head Plug
Cylinder Head Plug
The cylinder head plug is a vital part for the fluid end of mud pump in petroleum drilling. A high quality suitable plug is adopted for improved loading condition as well as increased bearing capacity and lifespan. The product made by KINGWELL Company covers a full range of BAOSHI, LIANSHI and QINGSHI brand pumps. It is derived from top grade alloy carbon steel made by domestic steel plants. Besides, this product is completed with high temperature forging, heat treatment and CNC machining technology so as to guarantee the geometric size, sealing performance as well as increased durability and abrasion resistance.
Piston Rod Nut
Piston Rod Nut
The piston rod nut is a kind of anti-loosening nut for the end of piston rod. In common with the material of piston rod, it is made from superior quality alloy steel. The head of the product manufactured by KINGWELL Company is filled with a wear-resistant high strength nylon gasket so as to prevent rod thread from abrasion or being impacted by mud when in use of a piston rod. After heat treatment, this product offers better mechanical property. All models of piston rod nuts in metric and imperial units from BAOSHI, LANSHI, QINGSHI and other factories can be produced to meet the needs of customers.
Discharge Filter Screen Assembly
Discharge Filter Screen Assembly
The discharge filter screen assembly is a main component of the outlet for the fluid end of mud pump in petroleum drilling. It is composed of filter screen assembly, housing assembling as well as sealing ring, end cover and other accessories. The integrated formed filter screen housing made by our company adopts casting technique. The filter screen assembly is manufactured from superior quality alloy steel and assembled after CNC machining. This not only provides excellent corrosion resistance and pressure resistance, but also helps customers increase production efficienc
F1600
AH1301010100
AH130101010103
AH1601020100
AH130101020100
AH1601020101
AH1301010203
AH1301010204
AH160101010200
AH1601020102
AH1301020203
AH130102020400
AH1301020205
AH160101010400
T500-2023
AH1301010211
AH1601020103
AH1601010106
AH1301010214
AH1301010215
AH130101021600
T500-3006K
T501-303.00
T500-1018K
T500-1008
AH160101010700
AH160101010800
420501036160200000
040101010150600000
040101010300600000
T500-3004K
AH160101010400
T500-2033
AH1601020200
AH1301020301
AH1601020201
AH1301010303
AH1301020303
AH1301010305
AH1301010306
AH1301020304
AH1301020305
AH1301010309
AH130101031000
T500-1019
T500-1027
AH1301010311
AH1301010312
420503011221600000
420503011141600000
AH1301010313
T500-2003
420503011161600000
AH1301020400
AH1301020401
AH1301010402
AH100101041700
AH1301010403
AH1301010404
AH1301010405
530301011900035507
AH1301010406
AH1301010407
AH1301010408
AH1301010409
AH1301020403
530301011250070007
T500-3010
AH1301010411
530301011600070007
AH1301010412
AH1301020404
AH1301010414
AH1001010405
T500-2018K
T500-2019K
AH1301020402
T500-1021
T500-3013K
420503011101600000
AH130102040001
170506010100243000
AH1301020500
AH130102050100
AH130102050103
T500-5005
AH130102050102
T500-5006
T500-5007
T501-2001
T500-5008
T501-2002
AH1301010502
AH1301010503
AH130101050400
AH130101050500
AH130101050600
AH1301010507
AH1301010508
AH1301010509
AH00000101
530301010950053007
AH0000020300
AH000002030100
AH000002030103
AH0000020302
AH1301010510
AH1301020502
AH1301010512
AH1301020503
AH1301010514
AH130101051500
AH1301020504
AH130102050500
530301012000070007
AH1301010518
AH000003033000
AH000003033100
AH000003033200
AH000003033300
AH000003033400
AH000003033500
AH000003033600
AH000003033700
AH000003033800
AH000003033000
AH000003033100
AH000003033200
AH000003033300
AH000003033400
AH000003033500
AH000003033600
AH000003033700
AH000003033800
AH000003033000
AH000003033100
AH000003033200
AH000003033300
AH000003033400
AH000003033500
AH000003033600
AH000003033700
AH000003033800
AH130102050600
AH1301010520
AH130102050800
T504-006.00
T504-119.03
T504-126.00
T504-121.06
AH0000040404
T504-008.00
T504-119.05
T504-128.00
T504-121.10
AH0000040404
T504-010.00
T504-119.07
T504-130.00
T504-121..14
AH0000040404
T504-011.00
T504-120.04
T504-131.00
T504-121.17
AH0000040704
T504-012.00
T504-120.05
T504-132.00
T504-121.19
AH0000040704
T504-013.00
T504-120.06
T504-133.00
T504-121.21
AH0000040704
T504-014.00
T504-120.07
T504-135.00
T504-121.23
AH0000040704
530301010412035507
T500-1027
AH130102051100
AH1001010510
T500-7002
T501-2001
AH1001010512
AH0501020509
T501-303.0
530301011850070007
AH0000050100
AH0000050101
AH0000050102
530301013450070007
AH1001010525
AH1001020509
T501-1003
T500-1023
T506-1007
AH1301020512
170506010100243000
T505-1006
T505-1008
AH1001010527
AH1301020600
T516-2001
AH080102060100
T511-3002
520902540320120100
T500-3003
520901010350040040
520901010350050050
T511-3001
AH130102060001
520901010330050050
AH1001010611
520901010330040040
AH130102060002
AH130102060003
AH080102060200
AH1001010608
AH130102060004
AH130102060005
AH050102060400
AH130102060006
AH130102060007
AH130102060008
T506-1002
AH130102060009
AH130102060010
AH130102060011
AH1001010607
520901010330010010
AH050102060100
520902551280120100
T500-1007
AH1301010601
AH130102060012
AH130102060013
520901010050050050
AH050102060200
AH130102060014
AH130102060015
AH130102060016
AH130102060017
AH130102060018
T512-3001
T514-1001
AH100101060400
AH130102060200
520901010050010010
420503011081600000
512604900000032002
420503011081600000
512601010031000000
380202051160006021
520901010330020020
AH100101061000
AH1001010613
AH1301020700
AH1301020800
AH130102080100
AH1301010802
AH100102080200
AH1001010804
AH1001010805
AH1001010806
AH1001010807
AH1001010808
AH100101080900
AH1001010810
AH1001020803
AH130101080400
AH100101081300
T513-1004
AH1001010814
AH1001010815
420103028308002500
140301012031500000
AH100101080001
AH100101080002
520207050400650002
T500-1029
420503011161600000
420501046160100000
T500-1004
420503011141600000
420501046140100000
T500-1005
T501-1001
512704300024070250
AH100101081600
AH130102080200
AH10010109
T515-101.00
AH1301011000
AH1301011100
AH1301011200
AH13010113
T500-1001
AH10010113
AH1001011400
AH1001011500
AH10010116
T500-1017
AH16010104
AH13010115
T500-1010
420501036120200000
420999050603001000
T500-1013
T500-1003
420503011271600000
420501036120200000
420501036160200000
T500-1008
T500-1002
420503011161600000
420503011241600000
140601061000000000
420101050704001606
380207192602500514
AH1301021000
AH100101210100
AH130102100100
AH1001012108
AH1001012109
AH1301011602
AH1301011603
AH1301011604
AH1301011605
AH1001012110
AH1001012111
AH1001012112
390101010100500000
512605040000117000
AH130101160600
AH100102130100
AH1301011607
AH1301011608
AH1301011609
AH130101161000
400101091700000000
AH1301011611
AH130101161200
AH1301011800
170506010100243000
AH13010119
AH1001012000
AH100101200300
AH100101200200
AH100101200100
T513-1004
T513-2005
T512-1001
T513-5003
AH0000060200
AH0000060101
AH0000060102
AH000006010300
AH0000060104
AH0000060105
AH0000060106
AH0000060107
AH0000060108
AH0000060109
AH0000060110
AH0000060111
AH0000060113
AH0000060114
420703020504002600
AK75350200
T508-5001
AK75350101
AK7535010200
AK7535020100
T501-2001
T500-6002
T500-6003
T500-2002
AK75350202
T511-2001
AK75350106
AK7535020300
T500-1019
420101021604001000
AK7535010001
380202052250006020
AK7535010002
T514-1001
T508-5002
AH1001021100
AH1001021101
AH100101190200
AH100101190201
AH100101190202
530301011650070007
T500-6007
T501-2001
T508-1002
图号（英制）
AH1301010100
AH130101010103
AH1601020100
AH130101020100
AH1601020101
AH1301010203
AH1301010204
AH160101010200
AH1601020102
AH1301020203
AH130102020400
AH1301020205
AH160101010400
T500-2023
AH1301010211
AH1601020103
AH1601010106
AH1301010214
AH1301010215
AH130101021600
T500-3006K
T501-303.00
T500-1018K
T500-1008
AH160101010700
AH160101010800
420501036160200000
040101010150600000
040101010300600000
T500-3004K
AH160101010400
T500-2033
AH1601020200
AH1301020301
AH1601020201
AH1301010303
AH1301020303
AH1301010305
AH1301010306
AH1301020304
AH1301020305
AH1301010309
AH130101031000
T500-1019
T500-1027
AH1301010311
AH1301010312
420503011221600000
420503011141600000
AH1301010313
T500-2003
420503011161600000
AH1301020400
AH1301020401
AH1301010402
AH100101041700
AH1301010403
AH1301010404
AH1301010405
530301011900035507
AH1301010406
AH1301010407
AH1301010408
AH1301010409
AH1301020403
530301011250070007
T500-3010
AH1301010411
530301011600070007
AH1301010412
AH1301020404
AH1301010414
AH1001010405
T500-2018K
T500-2019K
AH1301020402
T500-1021
T500-3013K
420503011101600000
AH130102040001
170506010100243000
AH1301020500
AH130102050100
AH130102050103
T500-5005
AH130102050102
T500-5006
T500-5007
T501-2001
T500-5008
T501-2002
AH1301010502
AH1301010503
AH130101050400
AH130101050500
AH130101050600
AH1301010507
AH1301010508
AH1301010509
AH00000101
530301010950053007
AH0000020300
AH000002030100
AH000002030103
AH0000020302
AH1301010510
AH1301020502
AH1301010512
AH1301020503
AH1301010514
AH130101051500
AH1301020504
AH130102050500
530301012000070007
AH1301010518
AH000003033000
AH000003033100
AH000003033200
AH000003033300
AH000003033400
AH000003033500
AH000003033600
AH000003033700
AH000003033800
AH000003033000
AH000003033100
AH000003033200
AH000003033300
AH000003033400
AH000003033500
AH000003033600
AH000003033700
AH000003033800
AH000003033000
AH000003033100
AH000003033200
AH000003033300
AH000003033400
AH000003033500
AH000003033600
AH000003033700
AH000003033800
AH130102050600
AH1301010520
AH130102050800
T504-006.00
T504-119.03
T504-126.00
T504-121.06
AH0000040404
T504-008.00
T504-119.05
T504-128.00
T504-121.10
AH0000040404
T504-010.00
T504-119.07
T504-130.00
T504-121..14
AH0000040404
T504-011.00
T504-120.04
T504-131.00
T504-121.17
AH0000040704
T504-012.00
T504-120.05
T504-132.00
T504-121.19
AH0000040704
T504-013.00
T504-120.06
T504-133.00
T504-121.21
AH0000040704
T504-014.00
T504-120.07
T504-135.00
T504-121.23
AH0000040704
530301010412035507
T500-1027
AH130102051100
AH1001010510
T500-7002
T501-2001
AH1001010512
AH0501020509
T501-303.0
530301011850070007
AH0000050100
AH0000050101
AH0000050102
530301013450070007
AH1001010525
AH1001020509
T501-1003
T500-1023
T506-1007
AH1301020512
170506010100243000
T505-1006
T505-1008
AH1001010527
AH1301020600
T516-2001
AH080102060100
T511-3002
520902540320120100
T500-3003
520901010350040040
520901010350050050
T511-3001
AH130102060001
520901010330050050
AH1001010611
520901010330040040
AH130102060002
AH130102060003
AH080102060200
AH1001010608
AH130102060004
AH130102060005
AH050102060400
AH130102060006
AH130102060007
AH130102060008
T506-1002
AH130102060009
AH130102060010
AH130102060011
AH1001010607
520901010330010010
AH050102060100
520902551280120100
T500-1007
AH1301010601
AH130102060012
AH130102060013
520901010050050050
AH050102060200
AH130102060014
AH130102060015
AH130102060016
AH130102060017
AH130102060018
T512-3001
T514-1001
AH100101060400
AH130102060200
520901010050010010
420503011081600000
512604900000032002
420503011081600000
512601010031000000
380202051160006021
520901010330020020
AH100101061000
AH1001010613
AH1301020700
AH1301020800
AH130102080100
AH1301010802
AH100102080200
AH1001010804
AH1001010805
AH1001010806
AH1001010807
AH1001010808
AH100101080900
AH1001010810
AH1001020803
AH130101080400
AH100101081300
T513-1004
AH1001010814
AH1001010815
420103028308002500
140301012031500000
AH100101080001
AH100101080002
520207050400650002
T500-1029
420503011161600000
420501046160100000
T500-1004
420503011141600000
420501046140100000
T500-1005
T501-1001
512704300024070250
AH100101081600
AH130102080200
AH10010109
T515-101.00
AH1301011000
AH1301011100
AH1301011200
AH13010113
T500-1001
AH10010113
AH1001011400
AH1001011500
AH10010116
T500-1017
AH16010104
AH13010115
T500-1010
420501036120200000
420999050603001000
T500-1013
T500-1003
420503011271600000
420501036120200000
420501036160200000
T500-1008
T500-1002
420503011161600000
420503011241600000
140601061000000000
420101050704001606
380207192602500514
AH1301021000
AH100101210100
AH130102100100
AH1001012108
AH1001012109
AH1301011602
AH1301011603
AH1301011604
AH1301011605
AH1001012110
AH1001012111
AH1001012112
390101010100500000
512605040000117000
AH130101160600
AH100102130100
AH1301011607
AH1301011608
AH1301011609
AH130101161000
400101091700000000
AH1301011611
AH130101161200
AH1301011800
170506010100243000
AH13010119
AH1001012000
AH100101200300
AH100101200200
AH100101200100
T513-1004
T513-2005
T512-1001
T513-5003
AH0000060200
AH0000060101
AH0000060102
AH000006010300
AH0000060104
AH0000060105
AH0000060106
AH0000060107
AH0000060108
AH0000060109
AH0000060110
AH0000060111
AH0000060113
AH0000060114
420703020504002600
AK75350200
T508-5001
AK75350101
AK7535010200
AK7535020100
T501-2001
T500-6002
T500-6003
T500-2002
AK75350202
T511-2001
AK75350106
AK7535020300
T500-1019
420101021604001000
AK7535010001
380202052250006020
AK7535010002
T514-1001
T508-5002
AH1001021100
AH1001021101
AH100101190200
AH100101190201
AH100101190202
530301011650070007
T500-6007
T501-2001
T508-1002
Online ordering
Products
+Drilling Equipment
- Casing Scraper
- balck rhino Non rotating Casing Scrappe
- RazRdillo Casing Scraper
- multiple activation autolock bypass tools
- Non-rotating wellbore casing scraper
- Wellbore Cleaning up tools
- Drill Pipe
- Downhole Motor
- KINGWELL Stabilizer-sleeve type
- Deflecting tools and mill tools
- drill bits
- Cross Coupling Cable Protector
- KINGWELL Underreamer
- Reammate Underreamer
- mill shose
- KINGWELL Raiseboring drill pipes
- Stabilizer
- future drill tools
- RGS Remote Gauge Stabilizer
- Shock Tools
- Casing and Pipe cutting equipment
- HORNET Series Drilling Tools
- Hydraulic Oscillator
- Hydraulic Thruster
- Drill Bit
- Jar Intensifier Type YJQ
- Overshot
- Full opening safety valve
- Top Drive Drilling Tools
- Hole Opener
- Drill Hydroscillator
- Lubricated Fishing Bumper Sub Type BXJ
- Drilling Jar
- Continuous Circulating Valve
- Inside Blowout Control Tools
- Multi-cycle Circulating tools
- Hydraulic Jar Type YSJ
- Drilling Accelerator Type ZJQ
- Fishing Bumper Sub Type KXJ
- Model DJQ Cable Jar
- Model ZTX Highly-Efficient Vibration Resi
- Super Fishing Jar Type CSJ
- Surface Bumper Jar Type DJ
- Surface Bumper Jar Type DX
- Two-action Drill Accelerator Type SZJQ
- Fishing Spear
- Junk Basket
- Wear Preventive Subs
- Kelly
- Heavy Weight Drill Pipe
- Drill Collar
- Magnetic Fishing Tool
- Die Collar
- Casing Scraper
- Shock Absorber
- Pup Joint
- Subs
+Rig Accessories
- KWDWS Water Cooling Eddy Current Brakes
- BOP
- Christmas Tree
- An Overview of OCTG Piping Inspection Met
- Casing and tubing
- Wire-wrapped Screen
- ASTM A53 GRADE B SEAMLESS
- flange
- EN 10217 Welded steel pipe
- Oil Country Tubular Goods (OCTG)
- ASTM A333 Grade1 Carbon Steel Pipe
- Coiled Tubing
- High Pressure Fluid Control Products
- Coupling
- API 5CT Hot Rolled Tubing Pup Joint
- Ram Type and Annular Type Blowout Prevent
- Solids Control System
- Crown Block
- F-1600HL Mud Pump
- Coiled Tubing BOP
- drilling line
- Kill Manifold and Choke Manifold
- F-2200HL Mud Pump
- Ironroughneck
- Hydraulic Disc Brake System
- Mud Hopper and Mud mixing pump
- Gate Valve
- Top Drive
- OCTG
- Butterfly Valve
- Globe Valve
- Ball Valve
- Plug Valve
- Choke Valve
- Check Valve
- Casing Hanger and Tubing Hanger
- Tubing Spool and Casing Spool
- Slip
- Tong
- Elevator
- Tubing Head
- Casing Head
- Drawworks
- High and Low Pressure Pipe Manifold
- Forgings for Flange/Valve/Shaft/Gear
- Forging for Downhole Tools
- Pipe Mould
- Die Steel/Tool Steel
- Mandrel Bar
- Rolling Mill Roll
- Corrugated roll
- Travelling Block and Hook
- Rig Swivel
- Drilling Rig Mast
- Rotary Table
- Mud Pump
- Vacuum Degasser
- Other Solid Control Equipment
- Shaker Screen
- Submersible Slurry Pump
- Shear Pump
- Mud Agitator
- Centrifugal Pump
- Decanter Centrifuge
- Desilter
- Desander
- Mud Cleaner
- Linear Motion Shale Shaker
+APR Drill Stem Testing Tools
- Rupture Disk (RD) Sampler
- Slip Joint
- Hydraulic Jar
- Shock Absorber
- Gauge Carrier
- Drain Valve
- OMNI Valve
- LPR-N Valve
- Safety Valve
- Safety Joint
- Circulating Valve
- RTTS Packer
- Super Safety Valve/Subsea Safety Valves (
- Hydro Trip Pressure Sub
- Surface Well Testing system
- APR Pressure-controlled Formation Tester
- Full-bore Compensating Pipe
- Retrievable Service Packers
- Fullbore DST string
- DST TOOLS specification
- Subsurface Control Valve (SSC) Storm Vavl
- Champ v Packer
- Storm Valve
- Tester Valve
