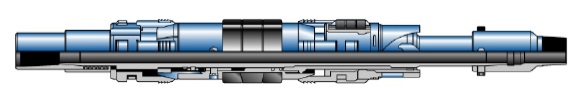

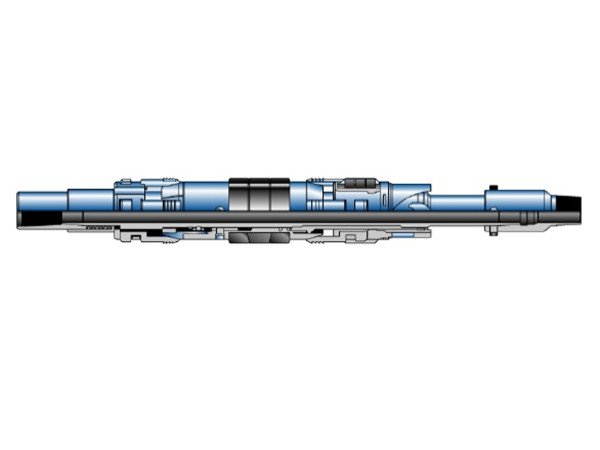

KWMSRP Mechanical -Set Retrievable Packer
The KWMSRP Mechanical-set Retrievable packer is design for testing ad zone stimulation application. The packer run, set, released and reset in one trip. Internal J-Latch holds the packer set, and only 1/4 turn of tubing at packer to set and release. Second straight pull shear release available when the tubing rotating limited. The feature of fluid bypass areas through the packer allows high run in hole speed. The KWMSRP packer can be use as tubing anchor or temporary bridge plug. Pressure can be up to 10K.
Features and Benefits
Field proved reliable
Testing and stimulation application
Tubing anchor or temporary bridge plug application
Internal J-Latch holds the packer set
1/4 turn of tubing at packer to set and release
Reset and release packer in one trip
Easy redress and reassemble
High run speed when run in hole
Shear release for option
High pressure rating, Standard 10ksi
Applications
Well testing
Frac and stimulation
Temporary bridge plug
Tubing hanger
Technical Data
| Casing Size | Casing Weight | Packer OD | Packer ID | ||||
| in. | mm | lb/ft | Kg/m | in. | mm | in. | mm |
| 5 1/2 | 139.7 | 13-17 | 19.35-25.30 | 4.69 | 119.12 | 2.4 | 60.96 |
| 20-23 | 29.76-34.23 | 4.51 | 114.55 | 2.4 | 60.96 | ||
| 7 | 177.8 | 20-26 | 29.76-38.69 | 6.03 | 153.16 | 2.98 | 75.69 |
| 26-32 | 38.69-47.62 | 5.91 | 150.11 | 2.98 | 75.69 | ||
| 32-38 | 47.62-56.55 | 5.7 | 144.78 | 2.98 | 75.69 | ||
| 41-44 | 61.01-65.48 | 5.5 | 139.7 | 2.98 | 75.69 | ||
| 7 5/8 | 193.68 | 26.4-29.7 | 39.29-44.20 | 6.65 | 168.91 | 2.98 | 75.69 |
| 29.7-39 | 44.20-58.04 | 6.45 | 163.83 | 2.98 | 75.69 | ||
| 9 5/8 | 244.48 | 36-43.5 | 53.57-64.74 | 8.55 | 217.17 | 3.88 | 98.55 |
* Other ID available depending on tubing size selected.
* Other casing sizes available depending on request.
