KW Data Acquisition System
Product Number: KW3000 Data Acquisition System
We're here to help:
Easy ways to get the answers you need.
- +86-029-88601839
- +86-029-88601839
- kingwell@kingwelloilfield.com
- Follow Us:
Overview
The KW3000 Data Acquisition System is developed to operate with Kingwell down-hole logging tools. The system provides higher-standard data protection.

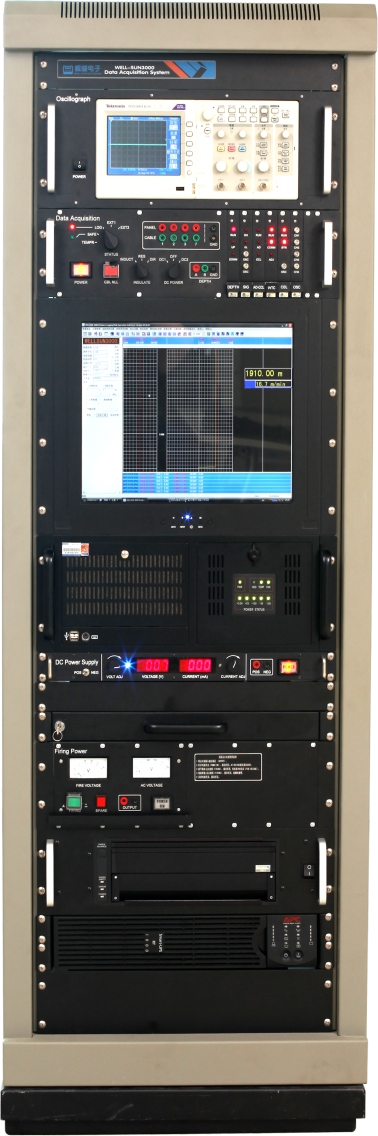

Both portable versions and rack-mounted versions are available. The users may select different functional units based on their operational requirements.
Features
- DSP chip allowing adaptive processing of signal interface
- USB port for communication between the system and computer
- Chinese / English interface in software
- Outputs in multiple data formats
- Combinable with DDL Ⅲ (i.e. 5.7KBPS Manchester) Protocol tools
- Combinable with KWCbus protocol tools like MCT, EMT, CBL
- Combinable with KWCbus PLT tools
- Combinable with vertical focused magnetic thickness tool
- Combinable with gyro tool
- Combinable with Segmented Bonding Tool (SBT) in 3504 standard
- Combinable with neutron and C/O measuring tools
- Perforating operations conveyed in cable or tubing etc.
Specifications
|
AC Power Supply Voltage |
110V/220V±10% |
|
DC Power Supply Voltage |
0-300V (continuous adjustable) |
|
Power Rating |
500W |
|
Max Logging Depth |
9000m |
|
Max Logging Speed |
3200m/h |
|
Depth Sample Interval |
0.00625/0.0125/0.025/0.05/0.1 |
|
Depth Display Range |
0 ~ 9999.9m |
|
Display Mode |
Both curves and depth lines are synchronously scrolled on screen |
|
Plotting Medium |
Film and thermal paper |
|
Max Numbers of Curves Displayed |
100 |
