Mud Cooling System
05/07/2018
Mud Cooling System
Mud Cooler Model
KINGWELL OILFIELD
KW10002 / 4
SPECIFICATION:
Drilling fluid temperature in the high temperature and high pressure drilling
well, in the deep oil drilling well must be strictly controlled. The suitable drilling fluid
temperature helps to maintain the stability of drilling, reduce drilling fluid costs,
decrease drilling equipment maintenance costs which the temperature rise caused
by drilling, reduce the risk factor and complications.

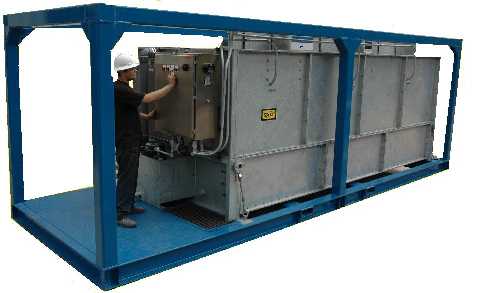

kingwell oilfield machinery co.,ltd on now offer an energy-efficient mud
cooling system. It is container mounted design and needs simply and quickly to be
connected to be ready for immediate operation.
mud cooler effe ctively reduces temperature, and has a
proven track record of temperature and pressure in real-time operation. It brings a
range of benefits for low-cost safety of drilling operation.
Mud Cooler System mainly includes the following components: plate heat
exchanger, pipe, valve, filter, pressure, temperature monitoring system,
internal medium leak monitoring system.
Mud Cooler System through the circulation of the cooling liquid in plate to
cooling the drilling fluid, has higher heat transfer coefficient.
Double seal structure, increased the rubber gasket and plate of internal friction,
improve heat exchanger overall sealing performance.
The drilling fluid is supplied from the clean fluid pit and transported to the heat
exchangers.
Flow principle of a plate heat exchanger
3 / 4
FEATURES ：
Skid design structure, provide conveniently installation and maintenance.
Maximum keep drilling stability, reduce the drilling fluid cast and drill
equipment maintenance costs.
Advanced real-time temperature and pressure Monitoring System.
Advanced internal leakage monitoring system to prevent drilling fluid leakage.
Each plate heat exchanger can meet the requirements of 1000 GPM drilling
fluid flow.
Plate heat exchanger and working medium contact materials meet the work
requirements of acid, alkali and oil-base drilling fluid.
The strainers mounted in hot and cool pipe prevent large solids entering the
system.
A back flush arrangement is incorporated for cleaning the system.
Two plate heat exchanger can achieve individually running and parallel
running.
