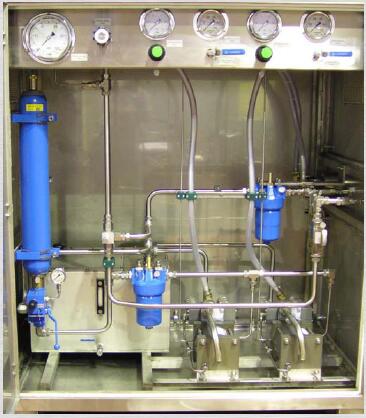

Flushing Units
19/04/2016
ApplicationPumps generate the pressure to flush hydraulic lines and also to clean the medium after being used.
Product Features:
- Stainless steel housing
- Stainless steel piping
- Outdoor applicable
Technical Details
Technical specification:
Working pressure :55bar, Flow capacity :30-40 L/min
Dimensions: Width- 1500 mm, High- 1720 mm, Depth- 1000 mm, Weight- ca. 450 kg
Connections: Air drive pressure - G 1 1/4", Pressure outlet- 9/16-18UNF, Return line- 9/16-18UNF
.

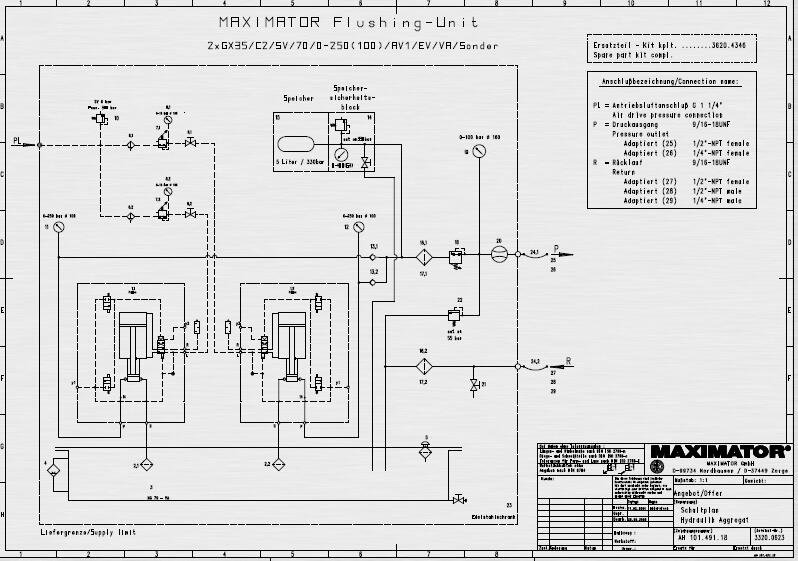

Circuit diagram
